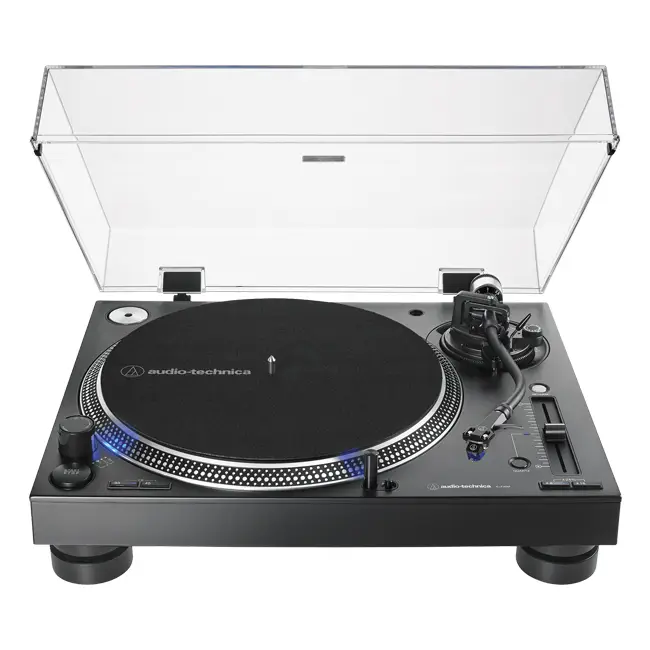

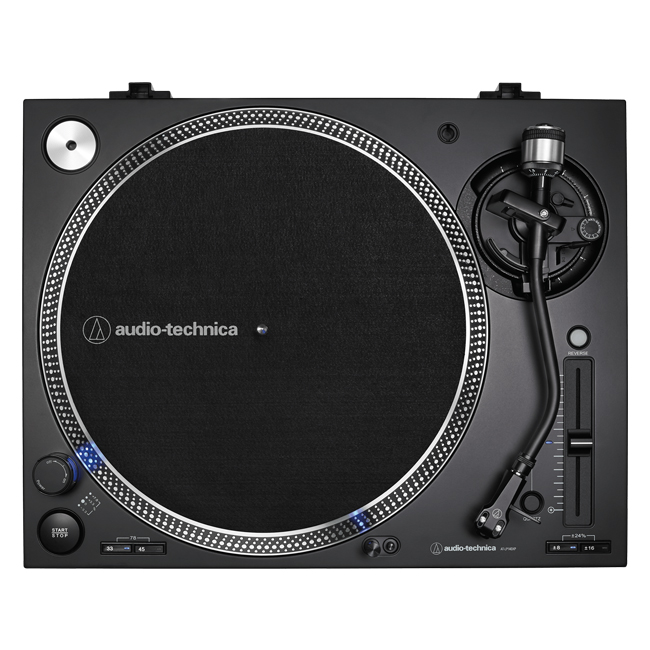

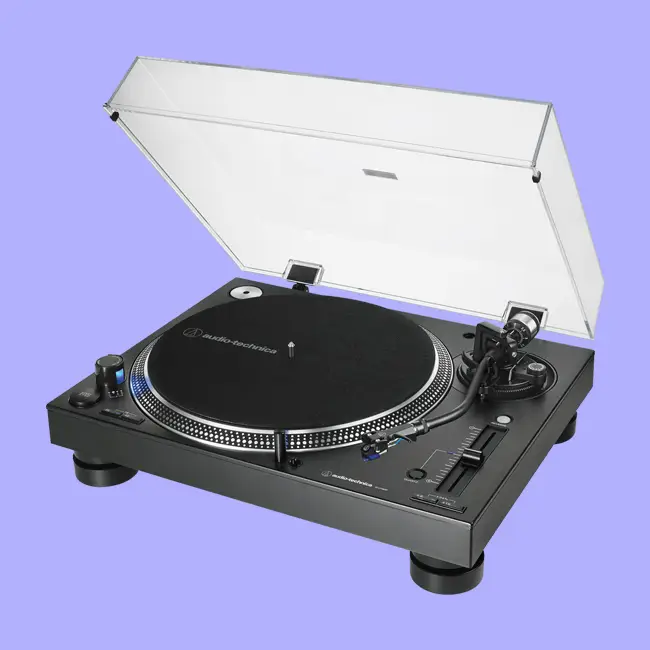

The AT-LP140XP fully manual professional DJ turntable features a high-torque direct-drive motor and anti-resonant, mass-damped, die-cast aluminum platter to ensure stable, on-axis rotation at 33-1/3, 45, and 78 RPM. It is equipped with an S-shaped tonearm with height adjustment, adjustable tracking force (counterweight) and adjustable dynamic anti-skate control.
Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the durable, high-output AT-XP3 DJ cartridge with 0.6 mil conical bonded stylus included with the turntable. It comes pre-mounted to an AT-HS6 universal ½”-mount headshell.
Designed to connect to components with a dedicated phono input, the turntable comes with a detachable dual RCA output cable and supplies a strong 5.5 mV output.
Additional professional features include a start/stop button; forward and reverse play; selectable high-accuracy quartz-controlled pitch lock and pitch change slider control with +/-8%, +/-16%, and +/-24% adjustment ranges; a stroboscopic platter with speed indicator; a popup stylus target light; and a removable hinged dust cover.
• Experience high-fidelity audio and professional DJ performance
• Direct-drive, high-torque servo motor with speed stabilization
• Fully manual operation
• Adjustable dynamic anti-skate control
• Selectable 33/45/78 RPM speeds
• Professional anti-resonance, mass-damped, die-cast aluminum platter with felt mat
• AT-HS6 universal ½”-mount headshell and AT-XP3 DJ cartridge with 0.6 mil conical bonded stylus
• Balanced S-shaped tonearm with hydraulically damped lift control, height adjustment, and lockable rest
• Dedicated phono-level output (5.5 mV)
• Stroboscopic platter with speed indicator
• Forward/reverse operation and variable pitch control with quartz speed lock
• Popup stylus target light for easier cueing in low light
• Damped base construction for reduced low-frequency feedback coloration
• Includes: detachable RCA output cable (dual RCA male to dual RCA male), power cable, 45 RPM adapter, counterweight, felt mat, and removable hinged dust cover
Turntable
Type: 3-speed, fully manual operation
Motor: High-torque DC motor
Drive Method: Direct drive
Speeds: 33-1/3 RPM, 45 RPM, 78 RPM
Turntable Platter: Die-cast aluminium
Starting Torque: 2.2 kgf-cm
Wow and Flutter: <0.2% WRMS (33 RPM)
Signal-to-Noise Ratio: >50 dB
Output Level: 5.5 mV nominal at 1 kHz, 5 cm/sec
Power Supply Requirements: 115/230V AC, 60/50 Hz
Weight: 10.0 kg
Pitch Variation: +/-8% or +/-16% or +/-24%
