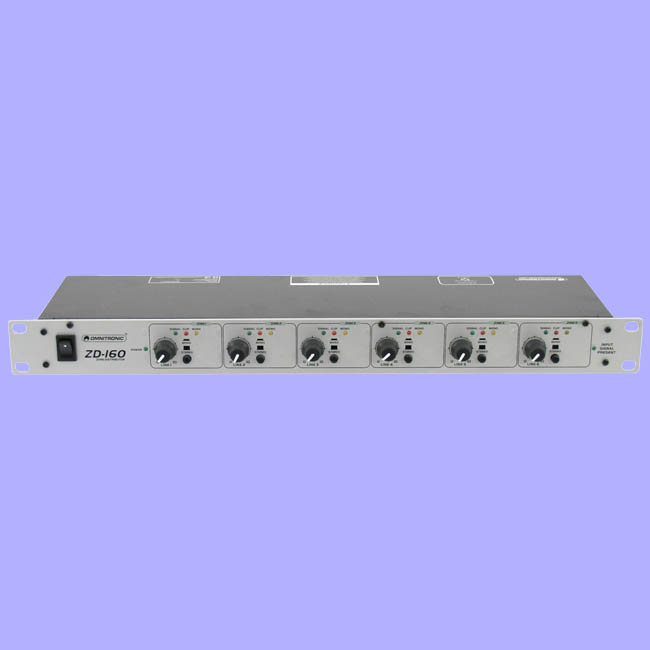

Practical distributor with 1 input and 6 outputs
Extends every mixer with additional outputs

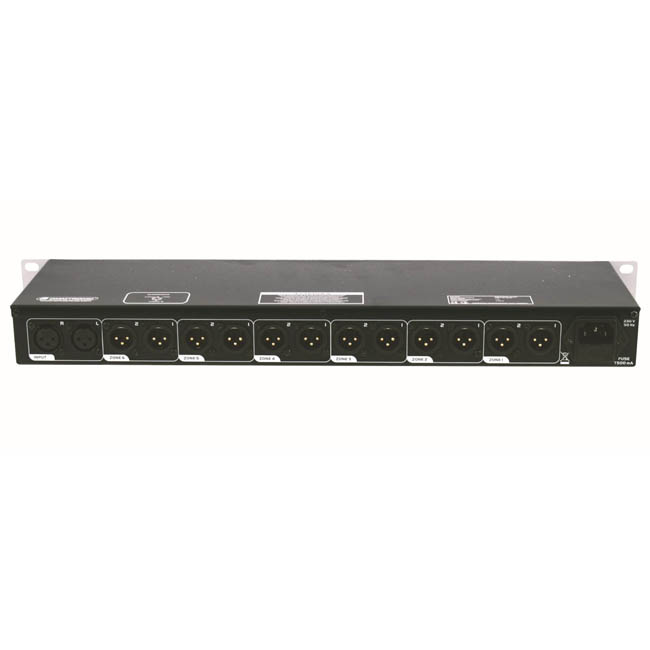

1 stereo XLR input
6 stereo zone outputs (XLR)
Each zone with level control and mono switch
LED display of signal input and mono/stereo mode
Rack installation with 1 U
(19”) 48.3 cm rack installation 1 U
Power supply: 230 V AC, 50 Hz
Power consumption: 7 W
Power connection: Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
S/N ratio: >69 dB
THD: <0,2 % at 1 kHz
Impedance:
Input: 45,1 kOhm
Output: 125 Ohm
Gain: 15 dB
Max. level:
Output: +22 dB
Input: +9 dBV
Color: Silver
Housing design: (19”) 48.3 cm rack installation 1 U
Dimensions: Width: 48,3 cm
Depth: 12,6 cm
Height: 4,45 cm
Weight: 2,15 kg
