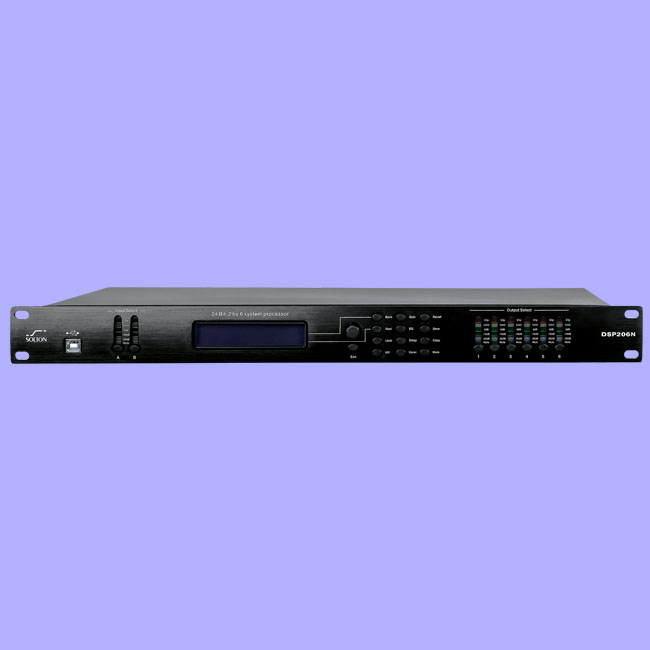

DSP 206 N
The excellent DSP decoder and 48 bit interior data channel which is for especial for wide dynamic extension and purity sound quality. High sampling rate, low spoilage and dynamic extension. Many opportunities and agility crossover modes, 2 way input and 6 way output with limiter, mute button and 180 phase inverter. Each input channel is with 8 equalizer view (PEQ), each output will be with 8 PEQ. Different filters like Butterworth, Bessel and Linkwitz-Riley for the best sound performance. Internal memory for 30 presets to save. Connection is possible with USB, RS 485 and Ethernet Interface.
SPECIFICATION
Connection: WIFI control via USB or TCP/IP LAN(Ethernet)
Sampling Rate: 48 kHz / 48 bit DSP
Dynamic Range: > 110 dB
Maximun Input Level: +20 dBu
Maximun Output Level: +20 dBu
Operational Frequency Range: 20 Hz – 20 kHz (-0.5 dB)
Processing Latency: 110 ms (Output)
Display: 20 character blue crystal
Memory: 30 presets on hardware unit
Filters: Butterworth, Bessel, Linkwitz-Riley, HS & LS
Octave Range: 12,18, 24 and 48 db /Octave

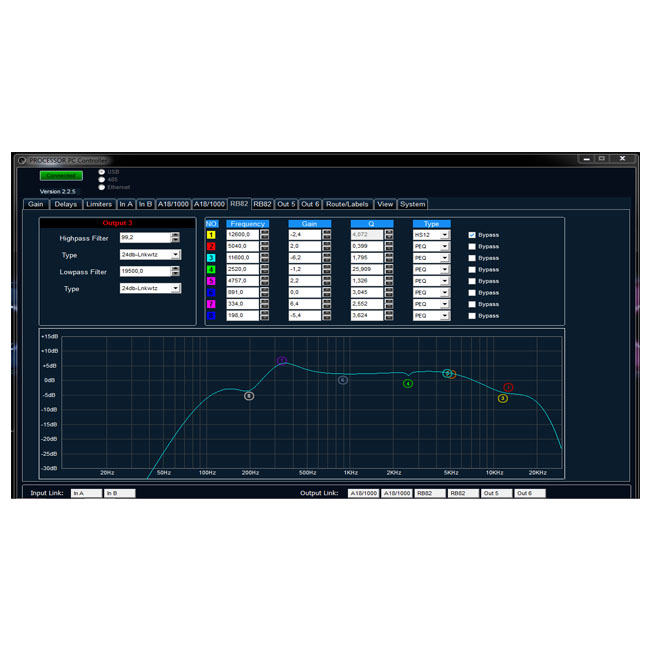

Equalizer: 8 band fully parametric (frequency, Q and gain) on each output and input
Delay Input: 29,383 Meter / 85,311 MS
Delay Output: 36,272 Meter / 105,311 MS
Each Output: 180 phase inverter and mute button, limiter available for safety
Input Impedance: Balance 20 K Ohm
Output Impedance: Unbalance 100 Ohm
PC Interface: USB A / RS 485 / Ethernet Interface
KCMR: >70 dB (1 kHz)
Signal / Noise Ratio: >110 dB
Distortion: <0.1% Output = 0dBu / 1kHz
Features: Lock Function

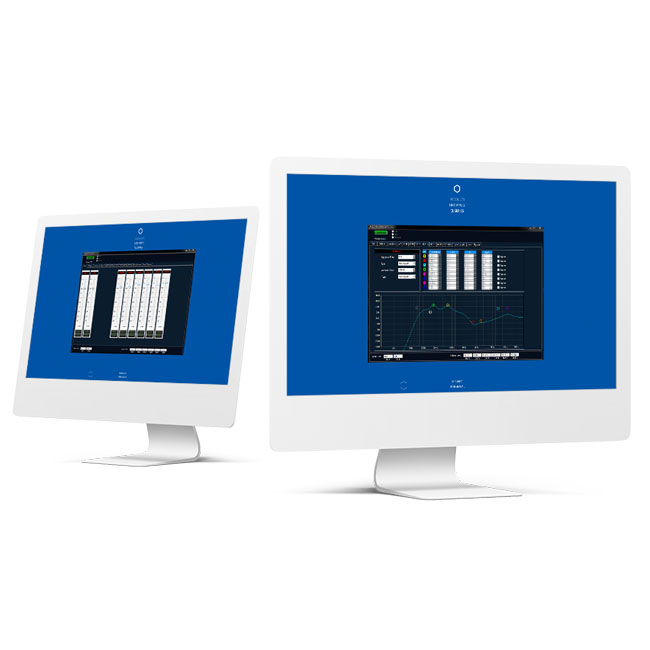

Software: Windows

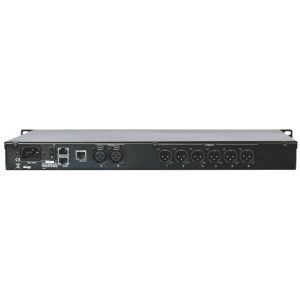

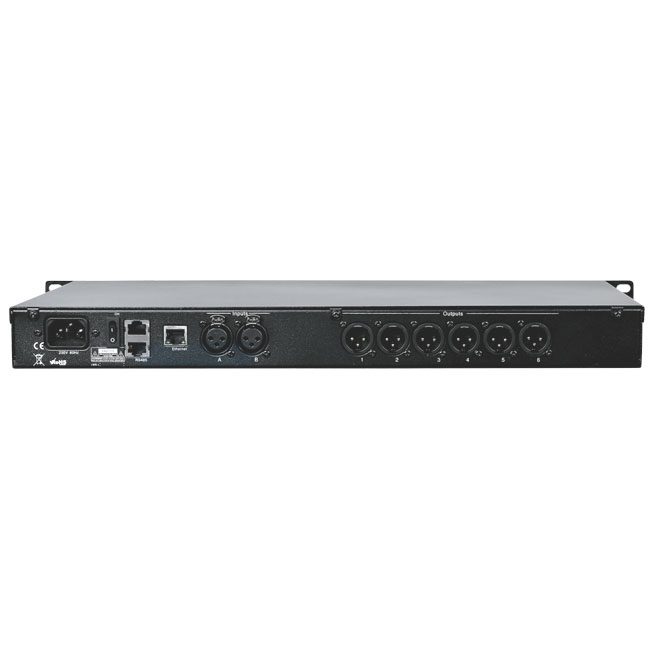

Audio input connectors: 2 x XLR female
Audio output connectors: 6 x XLR male
Power Supply: 220V AC 50Hz ± 10%
Dimensions mm (WxHxD): 483 x 44 (1U) x 254
Weight: 2.7 kg
