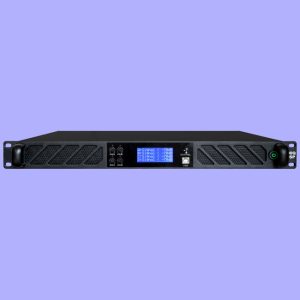

Audio M100Q Digital Power Amplifier, DSP, 4x1500W/8Ohm 4x3000W/4Ohm, IN: 4x XLR, OUT: 4x Speakon
Audio M-DSP-series impresses with a lot of power, excellent sound quality, internal DSP and that with only 1U and under 13kg weight.
The new M-series is a pure Class-D power amplifier, available as 2 or 4 channel amplifier and with a power of 600-2100 Watt RMS per channel. XLR inputs are as natural as Speakon outputs. The DSP can be controlled and operated from the front panel as well as via USB using a PC/laptop. With a USB-HUB, even several amplifiers can be operated via a USB link to the laptop. The built-in fans are temperature controlled and an overheating protection is also installed.
Technical Data
• Internal DSP: Yes
• Channels: 4
• RMS power per channel: 1500 watts
• Power: 4x 1500 watts RMS into 8 ohms ; 4x 3000 watts RMS into 4 ohms

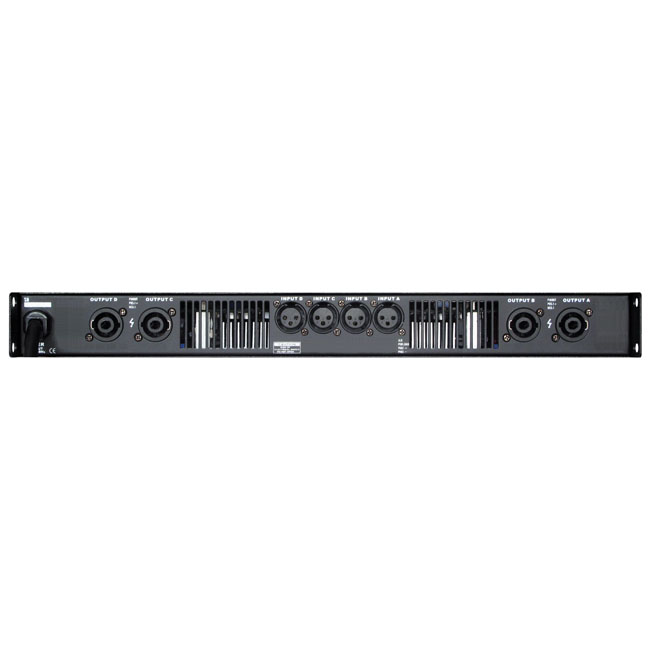

• Inputs/Outputs: XLR Inputs, Speakon Outputs
• Input sensitivity: 1.2V
• Attenuation factor: >1000 at 8Ohm
• THD: <0.1% (20Hz-20khz, 1W)
• Frequency response: 20-20,000Hz (+/- 0.3db, 1W into 8ohms)
• Volume control: electronically via display/buttons
• dimensions (WxDxH): 438x448x47mm
• Weight: 13Kg
