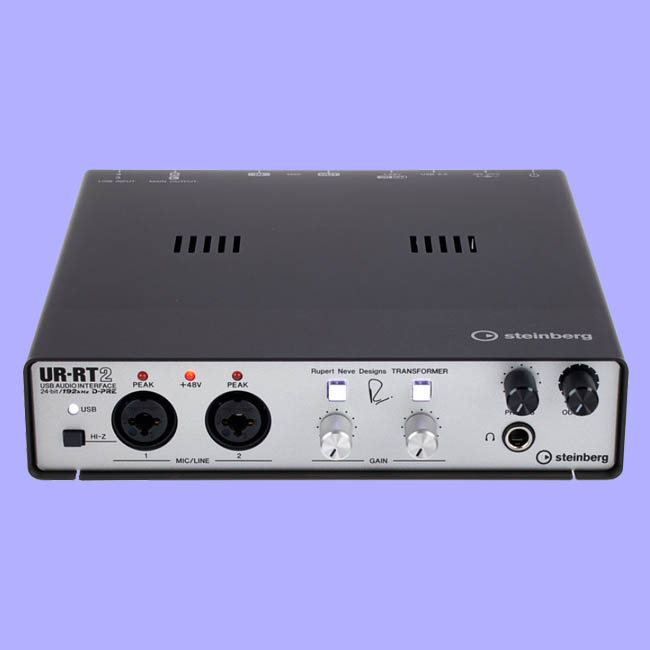

4x 2 USB 2.0 Audio Interface
• Up to 24-bit/192 kHz

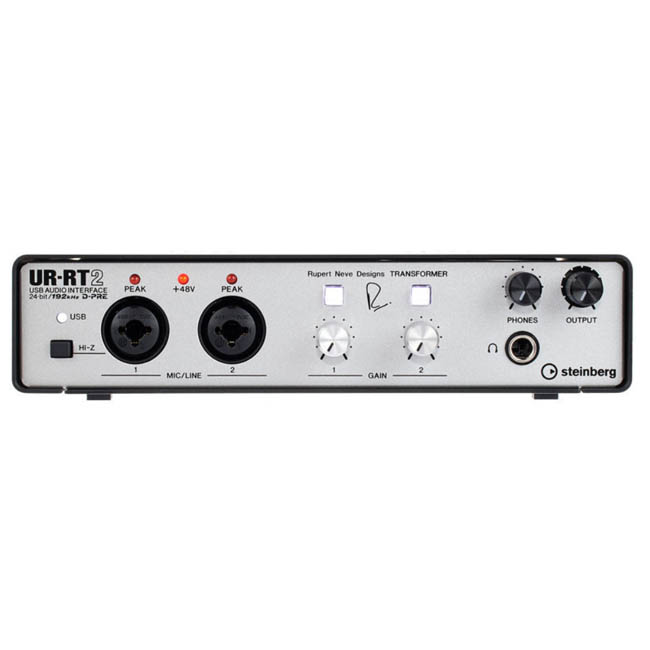

• 2 Class-A D-PRE microphone preamps with + 48 V phantom power
• Rupert Neve Designs transformer switchable on each front input channel
• 2 Analog XLR/jack combo inputs plus 2 line inputs
• Hi-Z switch on inputs 1/2 for instrument signals

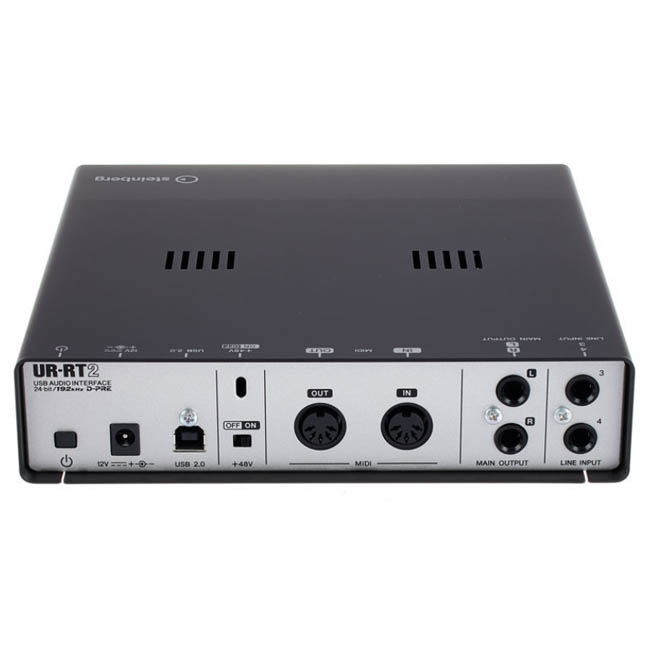

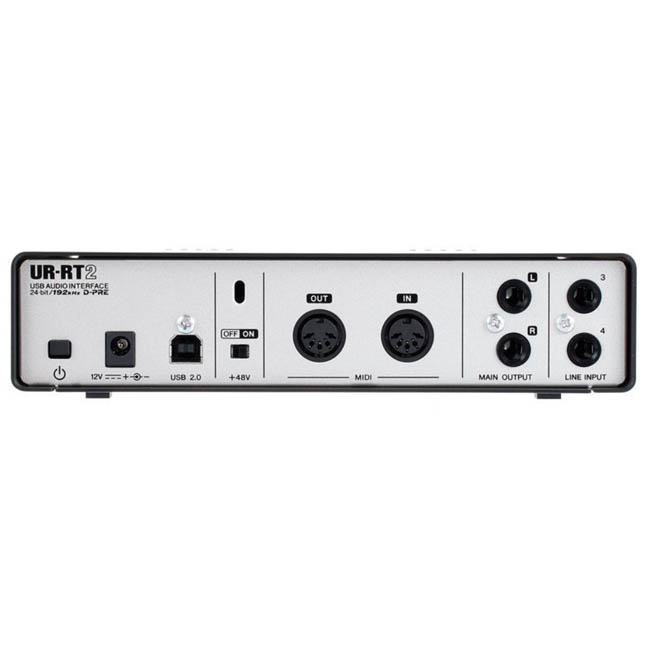

• 2 Line outputs, 6.3 mm balanced jack
• Headphone jack with individual outputs
• Latency-free DSP-supported monitoring with REV-X reverb
• Channel Strip and Guitar Amp Classics (also included as a VST 3 plug-in)
• MIDI input and output
• Robust 100% metal housing
• Compatible with Windows, macOS, and iOS (an Apple Camera Connection Kit, Lightning to USB Camera Adapter, or Lightning to USB 3 Camera Adapter is required)
• Incl. Cubase AI software as a downloadable version for Mac and PC (only for 64-bit environments), and Cubasis LE DAW app for iPad
Further Information
Recording / Playback Channels: 4×2
Number of Mic Inputs: 2
Number of Line Inputs: 4
Number of Instrument Inputs: 1
Number of Line Outs: 2
Headphone Outs: 1
Phantom power: Yes
Number of S/PDIF Connectors: 0
Number of ADAT Connectors: 0
Numer of AES/EBU Connectors: 0
Number of MADI Connectors: 0
Ethernet: 0
Other Connectors: No
MIDI interface: Yes
Word Clock: No
Max. sample rate (kHz): 192 kHz
Max. resolution in bit: 24 bit
USB Bus-Powered: No

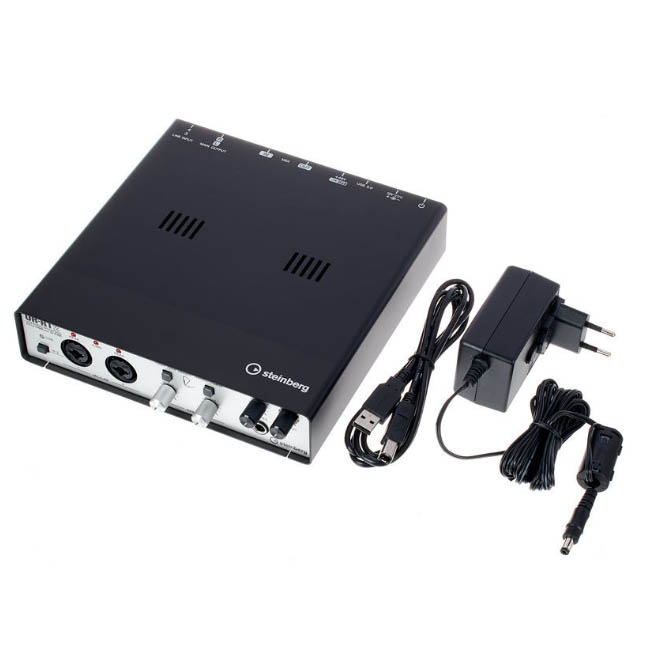

Incl. power supply: Yes
USB Version: 2.0
Width in mm: 198 mm
Depth in mm: 208 mm
Height in mm: 47 mm
