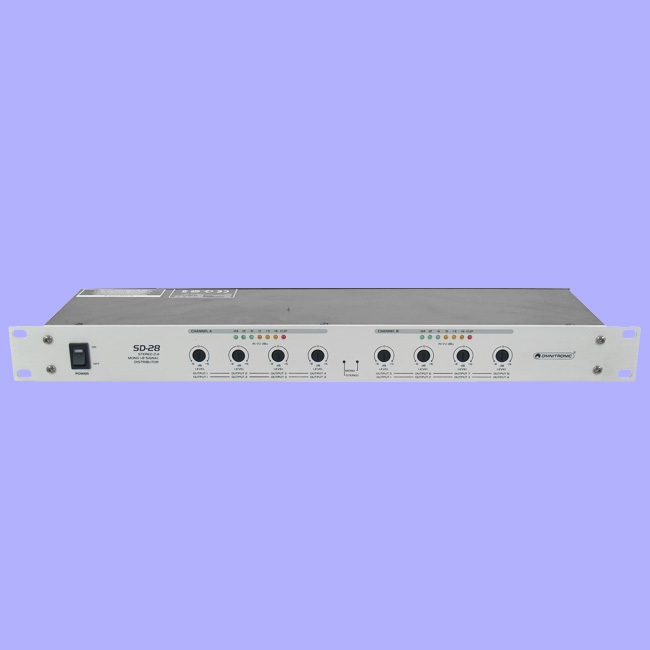

OMNITRONIC SD-28 Signal Distributor
This little and maybe even a bit mousy looking box, which demands one height unit only, is truly an effective signal distributor,
which splits 2 input signals to 4 in stereo mode and spreads 1 input signal to 8 exits in mono mode.
As the SD-28 is intended to be used for permanent installation, the particular level regulator has been recessed,
to avoid a deliberate or accidental change of settings.
The tuning of channels is, by the way, supported by clear LED-meters and therefore facilitated.
Additionally, another SD-28 can be connected to improve its field of application.
This system control distributor is best used for club installments or for multi stacked amplifiers.
8-way signal distributor
• Dedicated 2-channel signal distributor with selectable operating mode
• Stereo mode: 2 line input signals to 4 outputs each
• Mono mode: 1 line input signal to 8 outputs
• Each input with 1 parallel output for feeding through the input signal
• Each output with recessed level control (avoids unintended adjustments)
• Precise 7-digit LED meters with clip LED for input level

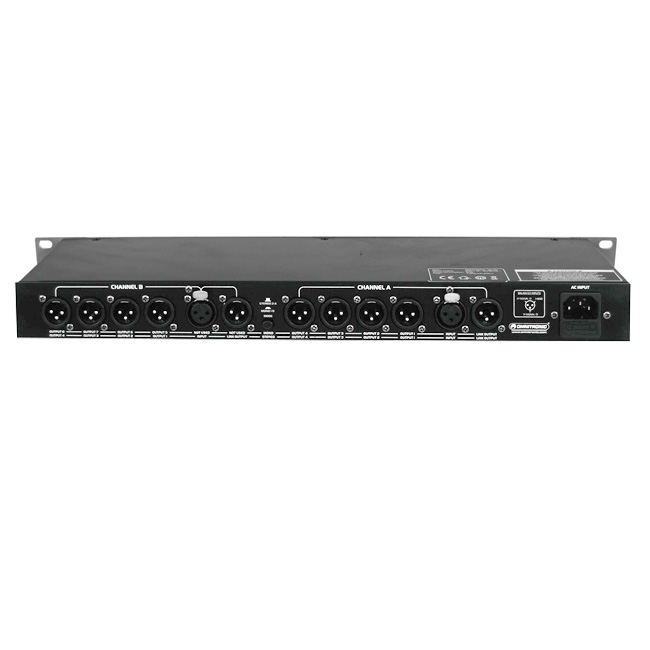

• Inputs and outputs via balanced XLR connectors
• Rack installation, 1 U
• Housing design: (19”) 48.3 cm rack installation 1 U
|
Power supply: |
230 V AC, 50 Hz |
|
Power consumption: |
10,00 W |
|
Frequency range: |
20 – 20000 Hz |
|
Power connection: |
Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
|
Housing design: |
(19”) 48.3 cm rack installation 1 U |
|
Width: |
48,3 cm |
