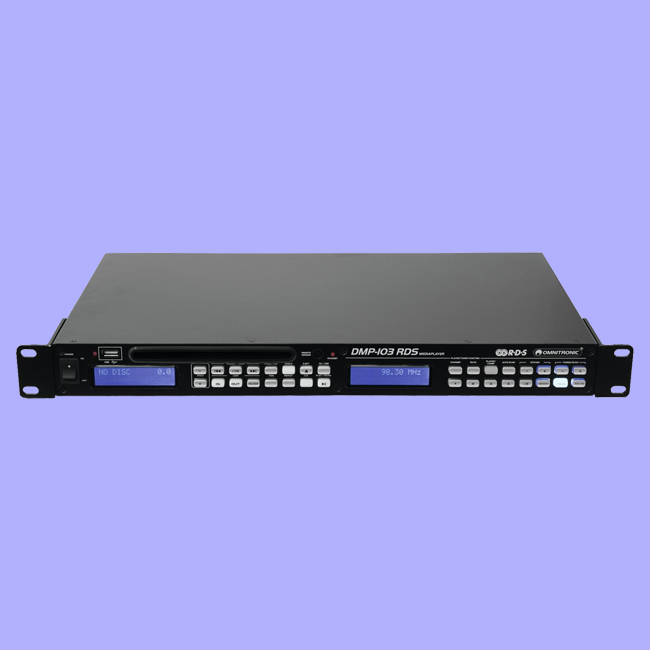

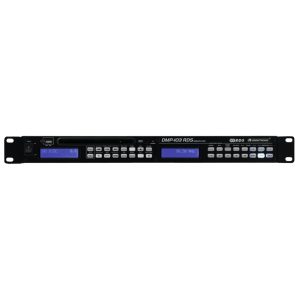

OMNITRONIC DMP-103RDS Media Player
CD/MP3 player with FM RDS tuner and USB port
• 1 U flat CD/MP3 player with IR remote
• For permanent installation e.g. in restaurants, gyms and retail locations
• USB 2.0 port for USB storage media
• FM/AM tuner with 30 memory places per band and station finding
• 40 seconds anti-shock protection
• Pitch adjustment up to ±16 %
• Slot-in drive
• Audio CD/ CD-R/CD-RW/MP3 CD
• Cue function
• Seamless loop/reloop function
• Single or continuous play
• Random play
• Repeat functions: repeat 1, repeat folder
• Title programming (audio CD)
• Comfortable track selection with skip buttons and +10 button
• Folder navigation
• Alphanumeric LCD with blue backlight

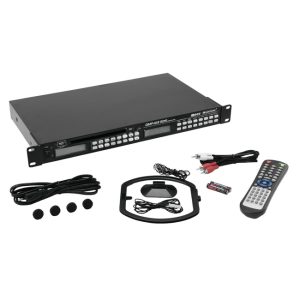

• Incl. wire aerial antenna
• Incl. mounting brackets for rack installation (1 U)

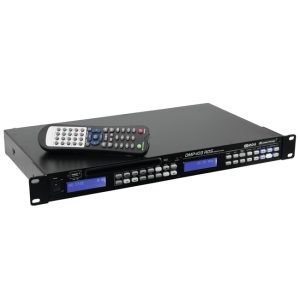

• Controlling by IR remote control
• (19”) 48.3 cm rack installation 1 U
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 10 W
Power connection: Mains input IEC connector (M) mounting version Power supply cord with Euro plug (provided)
Frequency range: 20 – 20000 Hz
S/N ratio: >60 dB
THD: Control: IR remote control
Audio player: USB + CD player + FM radio (ID3 tag)
CD player drive: Slot in-Single CD drive
Display: CD-DA play time remaining , play time elapsed , total play time remaining; MP3 play time remaining , play time elapsed , song title , folder name
Tuner frequency range: FM 87-108 MHz, AM 522-1620 kHz

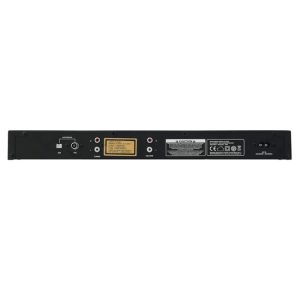

Connections: Output: 2 x line via stereo RCA
Format: CD, CD-R, CD-RW, MP3, WMA
Program memory: Max. 20 title, CD-DA
Frame accuracy: 1/75 s
Available storage media: USB devices max. 32GB
Pitch range: ±16%
USB port: Typ A
Housing design: (19”) 48.3 cm rack installation 1 U
Dimension: 48.3 x 27 x 4.45 cm
Weight: 3.10 kg
Remote control
Battery: 2 x Micro (AAA) (provided)
