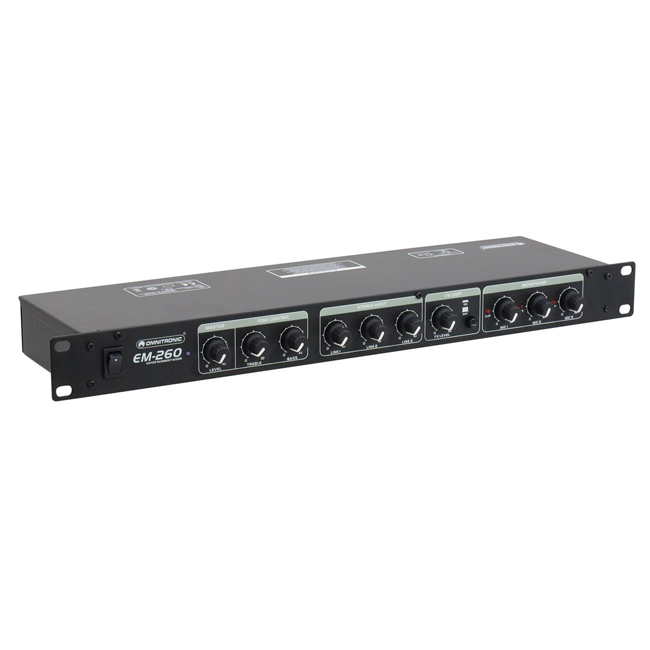

6-channel microphone line mixer, Black
6 inputs (3 x mic/line and 3 x line) for mixing to 1 stereo output
Ideal e.g. for karaoke when microphones need to mixed with CDs

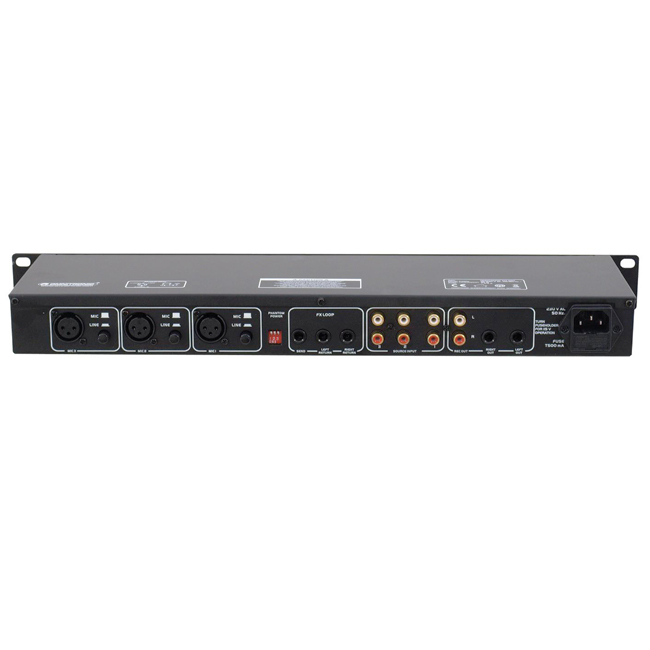

3 mono input channels mic/line (XLR, bal.), switchable
3 stereo line input channels (RCA)
Clip LED for each microphone channel
Each microphone input with optional 12 V phantom power
FX send/return with FX level control
Stereo master out (6.3 mm jack) with 2-band equalizer (highs and lows) and level control
Stereo record output (RCA)
Rack installation, 1 U
Power supply: 115/230 V AC, 50/60 Hz
Power consumption: 35 W
Inputs MIC 1-3: XLR
Max. input level: -14 dB
Inputs LINE 1-3: Stereo RCA
Max. input level: 24 dB
RETURN: 6.3 mm stereo jack
Outputs:
MASTER: 6.3 mm stereo jack
REC: Stereo RCA
SEND: 6.3 mm jack
Tone control:
High: -12 dB to +12 dB/ 10 kHz
Bass: -12 dB to +12 dB/ 100 Hz
S/N ratio: 69 dB
Frequency range: 20-20000 Hz
Distortion: 0.025 %
Dimensions (W x D x H): 482 x 123 x 43 mm (19”, 1 U)
Weight: 2.2 kg
