2-channel compressor/limiter with noise gate
Threshold, ratio and output level control per channel
Variable gate with threshold control per channel
Bypass switch allows instant comparison of original sound with processed sound
Precise 4-digit LED gain reduction meters
+4 dB/-10 dB selector switch for internal level adjustment

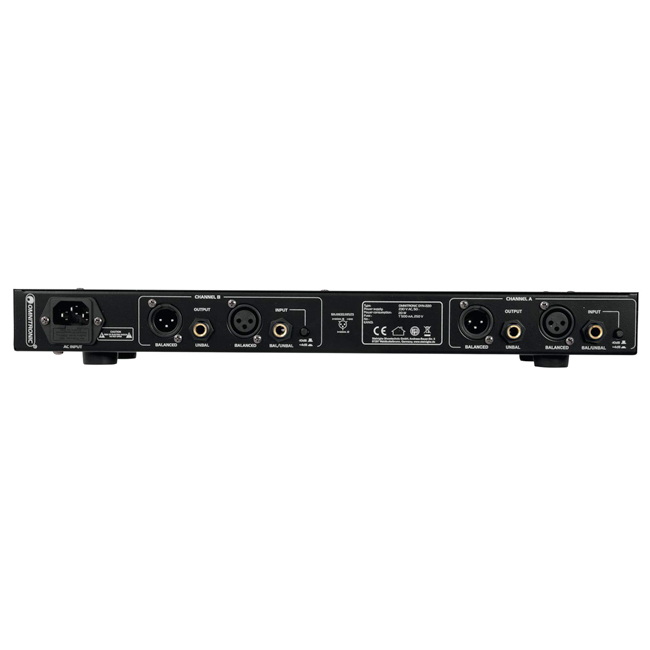

Inputs and outputs via balanced XLR connectors and 6.3 mm jacks
Rack installation, 1 U
Power supply: 230 V AC, 50 Hz
Power consumption: 20 W
Audio inputs/outputs: XLR and 6.3 mm jack
Input impendance: 10/20 kohms (unb./bal.)
Output impendance: 300/150 kohms (unb./bal.)
Frequency range: 20-20000 Hz, ±3 dB
S/N ratio: 90 dB, unweighted
Crosstalk: >80 dB
THD: 0.05%
Gate threshold: Variable (-80 to +10 dBu)
Compressor threshold: Variable (-40 to +20 dBu)
Compressor ratio: Variable (1:1 to oo:1)
Gain reduction display: VU meter, 4 LEDs
Dimensions (W x D x H): 483 x 154 x 48 mm
Weight: 1.9 kg
