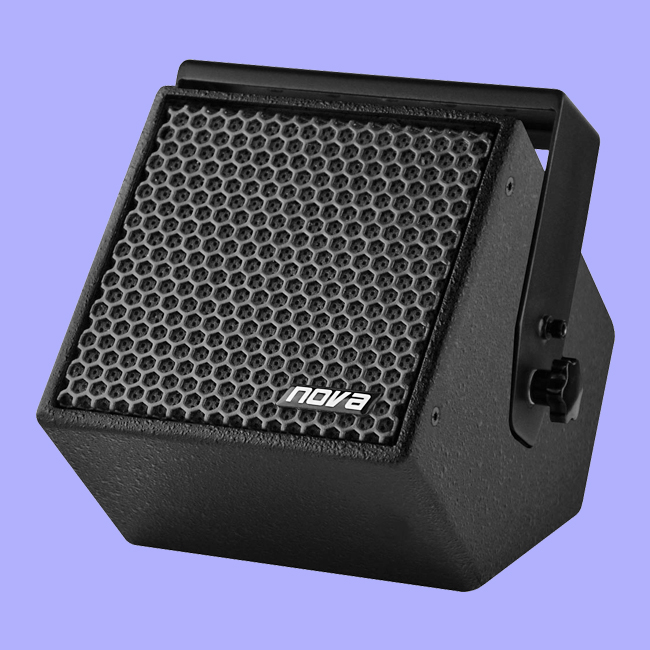

5”/2-way coaxial premium loudspeaker/150 W (RMS)

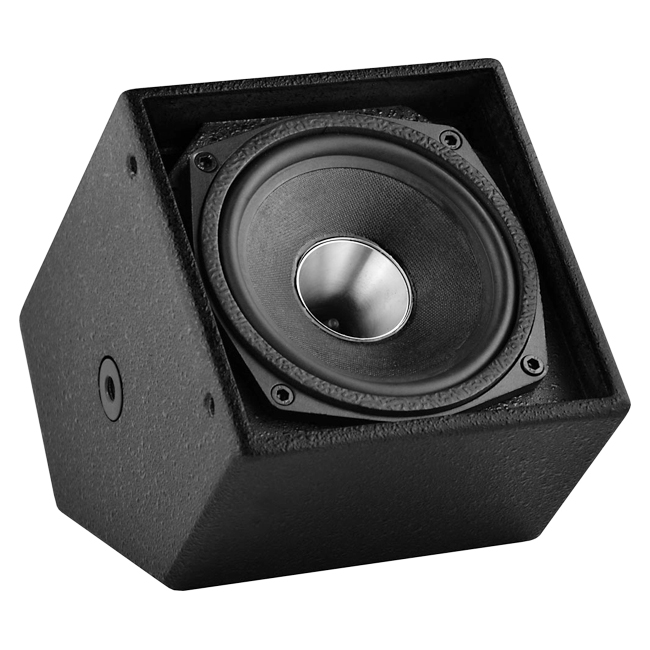

- HF compression driver with 1.35” voice coil
- High resolution coaxial 2-way transducer
- 90° x 90° nominal coverage
- Passive fullrange operation
- U-bracket included in delivery (as standard)
- Ultra compact design and light weight
- Monitor angle (45°)
System Type: 5”, two-way, coaxial, monitor angle 45°
Frequency Range (-10 dB): 85 Hz – 20 kHz
Frequency Response (±3 dB): 95 Hz – 18 kHz
Coverage Pattern: 90° x 90° nominal
HF Horn: Axisymmetric
Crossover Modes: Passive
Crossover Frequency: 2.2 kHz
Power Rating
(Continuous** / Program): Passive: 150 W / 300 W
Maximum SPL***: 117 dB SPL peak
System Sensitivity (1w/1m): 92 dB SPL
LF Driver: 1 x NOVA 5/150 COAX, 1.8“ voice coil woofer
LF Nominal Impedance: 16 ohms (passive)
MF Driver: n/a
MF Nominal Impedance: n/a
HF Driver: 1 x NOVA 5/150 COAX, 1.35“ voice coil driver
HF Nominal Impedance: 16 ohms (passive)
Active Tunings: n/a (passive)
Enclosure: 15 mm, plywood (multi layer)
Suspension / Mounting: 2 x M10 mounting points
Transport: n/a
Finish: Black lacquer finish
Grille: Powder coated, black, perforated steel with acoustic transparent charcoal foam backing, NOVA logo
Input Connectors: 2 x Neutrik© Speakon© NL4; 1+/1- (2+/2- linked from input to output)

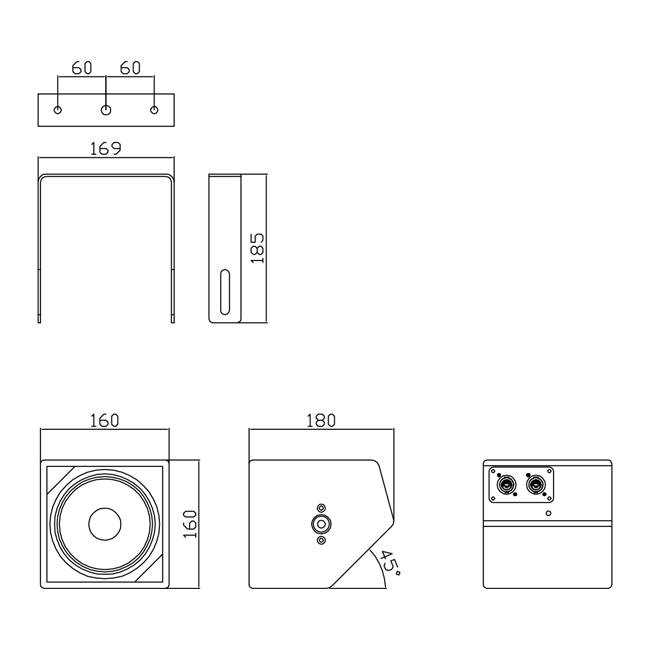

Dimensions (W x H x D): 160 mm x 160 mm x 180 mm
Net Weight: 3 kg
