The MAXX-1508DSP is an active 2.1 PA system with 700 watts output power.
It provides perfect sound and good level stability in various kinds of mobile PA applications.
The high-power 15” subwoofer with power-efficient Class D amplifier in a bass reflex cabinet delivers powerful, dry bass.
The two satellite loudspeakers with 8” bass/midrange drivers and 1” compression drivers are equipped with a passive 2-way crossover including PTC tweeter protection and ensure a well-rounded sound experience.
Equipped with a DSP (digital signal processor) which enables convenient application presets for quick sound contouring, the MAXX-1508DSP offers combined XLR and 6.3 mm inputs with XLR parallel output (for linking additional systems), and an additional RCA input with level adjustment.
Enjoy music wirelessly from your smartphone or any other Bluetooth device via the integrated Bluetooth audio receiver and charge them at the same time via the integrated powerbank.
The MAXX-1508DSP subwoofer's professional hardware includes a rugged multiplex/MDF enclosure, scratch-resistant lacquer, steel grille and ergonomically shaped handles.
Swivel castors for easy transport are optionally available. Matching speaker stands, distance tubes, and stand forks are also available as accessories.

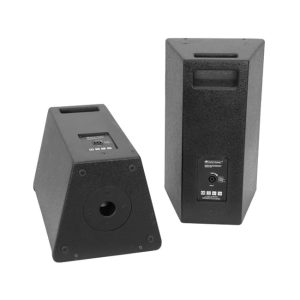

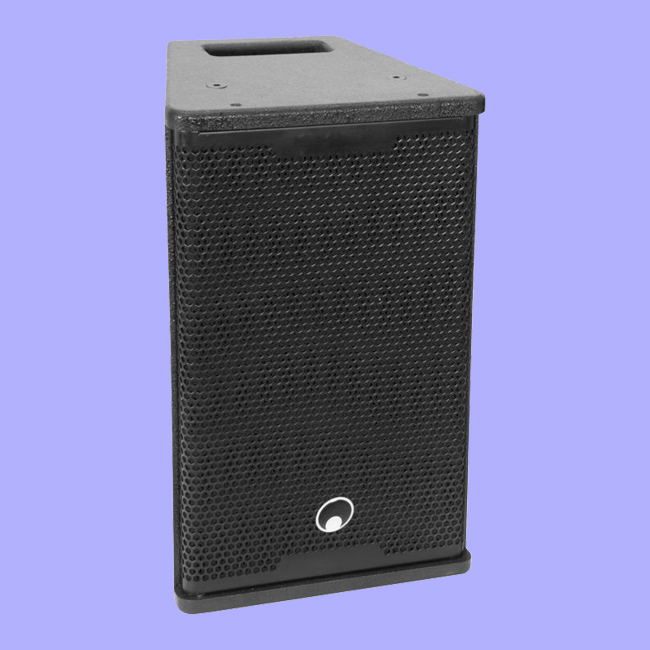

8” passive full-range speaker, 150 W RMS
• 2-way bass-reflex system with 8” bass-midrange speaker and 1” compression driver
• Serve as a mobile 2.1 system together with the MAXX-1508 subwoofer
• With passive 2-way crossover, PTC tweeter protection
• Speaker connection
• Stable MDF enclosures (16 mm) with scratch-resistant lacquer surface, steel grille and recessed handle
• Flange for stand installation
• M8 threaded inserts for suspended installation
• Applications: standing, as monitor, on a subwoofer or speaker stand, suspended
Rated power: 150 W RMS
Program power: 300 W
Frequency range: 120 – 18000 Hz
Sensitivity: 92 dB
Max. SPL: 116 dB
Dispersion angle: 90° x 60°
Impedance: 4 Ohm
Connections: Input: 1 x speakers via speaker built-in socket (f)
Speakers: 1 x woofer (8”) approx 20 cm; 1 x compression tweeter highs (1”) approx 2,5 cm
Type of speaker: Compact cabinet speaker
Dimension: 25.5 x 24.1 x42.1 cm
Weight: 17.25 kg
