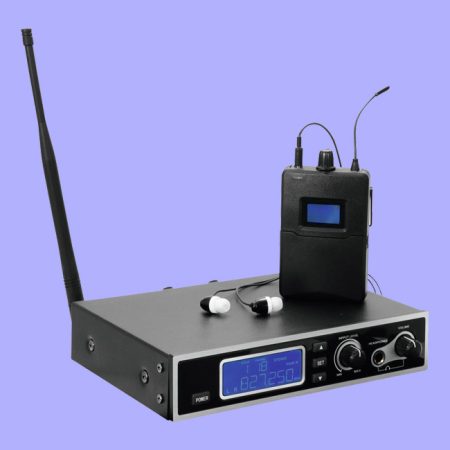

OMNITRONIC IEM-1000 In-Ear Monitoring Set
Multifrequency in-ear monitoring set, 823-832 MHz

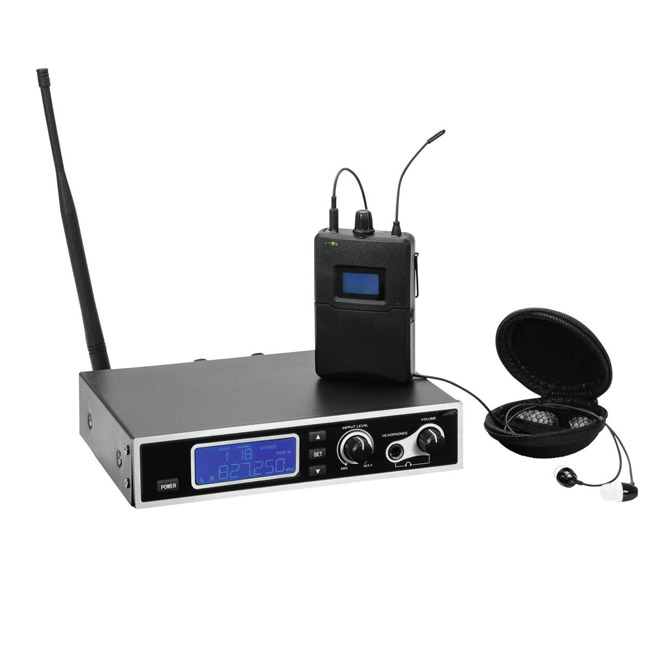

• Set includes a stationary stereo UHF transmitter, a stereo UHF pocket receiver and mini earphones
• Operation in the Duplex Gap 823-832 MHz
• License-free in Germany and 13 other countries
• 10 groups with 60 fixed frequencies
• Multifrequency transmitter with UHF pilot tone technology (PLL)
• Transmits signals to any number of receivers with the same carrier frequency
• Parallel operation of 6 sets is possible without any interference
• Further pocket receivers STR-1000 can be ordered separately
• Operation range with line of sight approx. 100 meters
• Stationary transmitter:
• Rubber antenna with BNC connection
• LCD for mono/stereo mode, stereo signal input and transmission frequency
• 2 adjustable inputs via balanced combo mounting jacks XLR/6.3 mm
• Adjustable headphones output
• Stereo or mono mode
• Operation via supplied power unit
• 483 mm rack installation possible with supplied mounting brackets
• STR-1000 pocket receiver:
• Adjustable earphones output
• LCD for battery capacity, receiving frequency, and RF signal
• Lock function for prevents undesired changes to settings
• Belt clip
• Mute function: On/off/mute switch
Transmitter
• Housing design: (19”) 48,3 cm rack installation possible
• Power connection: Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m) (provided)
Receiver
• Battery: 2 x Mignon (AA) (not included)
• Power connection: Battery/battery pack (not included)
|
General Data: |
|
|
Carrier frequency: |
UHF 823.000-832.000 MHz |
|
Receiving groups: |
10, with 6 fixed frequencies each |
|
Modulation: |
F3F |
|
Frequency range: |
40-16000 Hz (±3 dB) |
|
Frequency stability: |
±0.005 % |
|
S/N ratio: |
>105 dB |
|
Dynamic range: |
>96 dB |
|
T.H.D.: |
|
|
Coverage: |
100 m (with line-of-sight) |
|
Transmitter: |
|
|
Antenna: |
BNC, detachable |
|
Maximum deviation: |
±48000 Hz |
|
Signal inputs: |
2 x balanced combo XLR/6.3 mm jack |
|
Power supply: |
100-240 V AC, 50/60 Hz via supplied power unit |
|
Dimensions (L x W x H): |
213 x 210 x 46 mm |
|
STR-1000 |
Pocket Receiver |
|
Antenna: |
Built-in |
|
System: |
Non-diversity, one channel |
|
Earphones output: |
3.5 mm stereo jack |
|
Power supply: |
2 x 1.5 V mignon batteries (type AA) |
|
Current consumption: |
Approx. 185 mA |
|
Battery life: |
Approx. 7 hours, depending on the volume |
|
Dimensions (L x W x H): |
108 x 66 x 22 mm |
|
Frequency band: |
UHF 823 – 832 MHz |
|
Frequency range: |
40 – 16,000 Hz |
|
Transmitter |
|
|
Power consumption: |
5,00 W |
|
Weight: |
1,1 kg |
|
Height: |
4,6 cm |
|
Width: |
21,3 cm |
|
Power connection: |
Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m) |
|
Depth: |
21 cm |
|
Power supply: |
110-240 V AC, 50/60 Hz |
|
Receiver |
|
|
Weight: |
0,1 kg |
|
Battery: |
2 x Mignon (AA) |
|
Power connection: |
Battery/battery pack |
