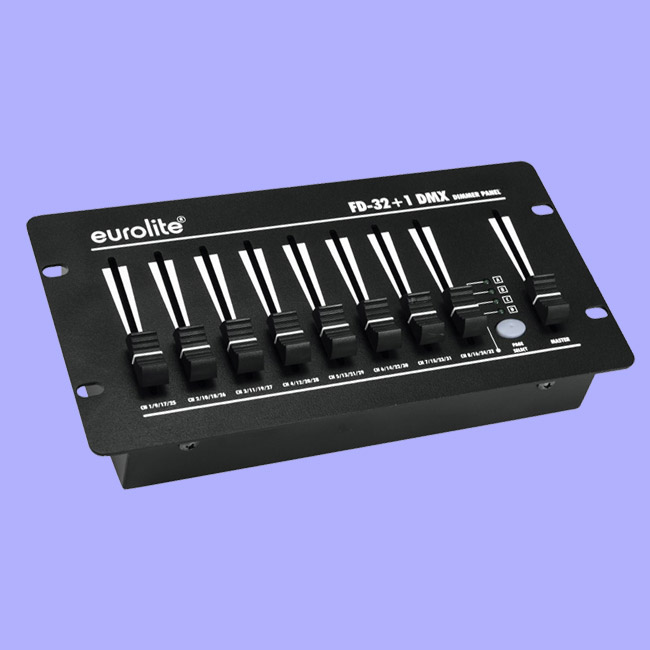

EUROLITE FD-32+1 DMX Dimmer Panel
Basic DMX controller for 32 channels with master fader
• Basic DMX controller for convenient operation of light effect units with DMX512 interface (e.g. spotlights and dimmers)
• Simply connect and operate, requires no extensive programming
• 8 channel faders for adjusting the DMX values in 4 groups
• 1 master fader
• Compact design
• 3-pin XLR connector
• Power supply via included power unit or 9 V battery (not included)
• Case color: Black
• Housing design: Desktop console
• Power connection: Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m) (provided)
• Controller useable for: general mix of colors; Controls KLS in general; Controls DMX effects; Luminaires for white
• Control: DMX
|
Power supply: |
100-240 V AC, 50/60 Hz |
|
via included power unit |
|
|
Battery operation: |
9 V battery |
|
Number of control channels: |
32 |
|
DMX512 output: |
3-pin XLR connector |
|
Dimensions (L x W x H): |
120 x 230 x 65 mm |
|
Weight: |
1 kg |
|
Power consumption: |
7,2 W |
|
IP classification: |
IP20 |
|
Color: |
Black |
|
Height: |
6,5 cm |
|
Depth: |
23 cm |
|
Width: |
12 cm |
|
DMX channels: |
32 |
|
Power connection: |
Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m) |
|
Power supply: |
110-240 V AC, 50/60 Hz |
