Power: 220V/50 ~ 60Hz
Consumed power: 100W
Frequency response: 100Hz~16, 000Hz
The output power: 60W
Signal to noise ratio:
MIC1: -50dB±2dB / 680 Ohms
MIC2: -55dB±2dB / 600 Ohms
LINE: -20dB±2dB / 50 Kohms
AUX:
1. -20dB±2dB / 10 Kohms
2. -15dB±2dB / 30 Kohms
3. -10dB±2dB / 50 Kohms
4. -3dB±2dB / 80 Kohms
Signal to noise ratio: >45dB
Audio output: 1V / 0dB (at AUX x 20dB)
Volume control: Bass 20dB / Treble 20dB
Size: 580(L) x 420(W) x 1100(H) mm
Weight: 29kg
Function description:

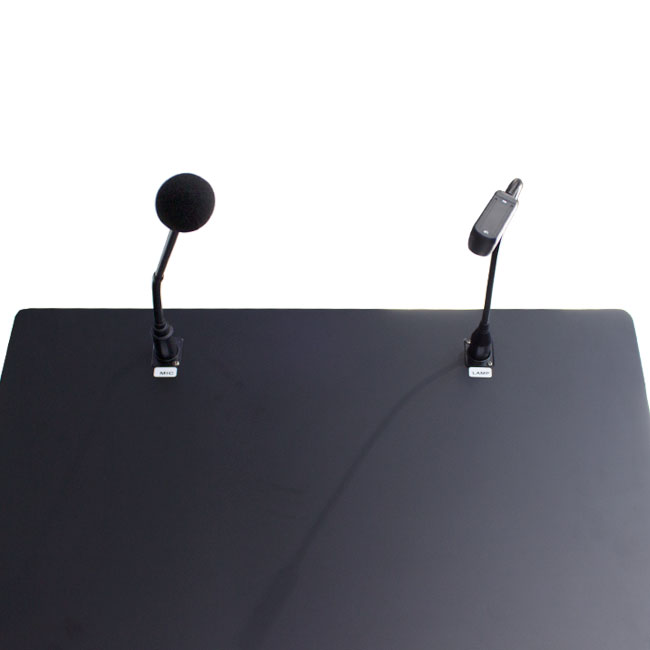

– Bend the microphone

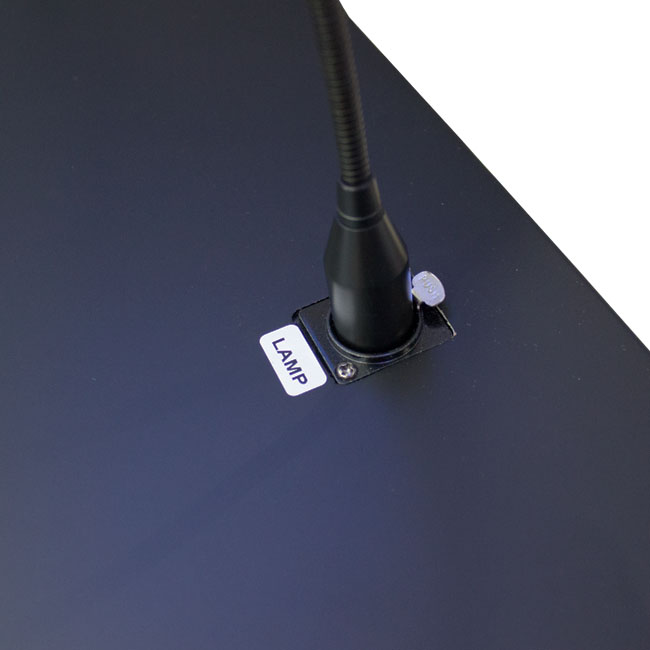

– Small lamp lighting
– The light switch
– Mesa of speech

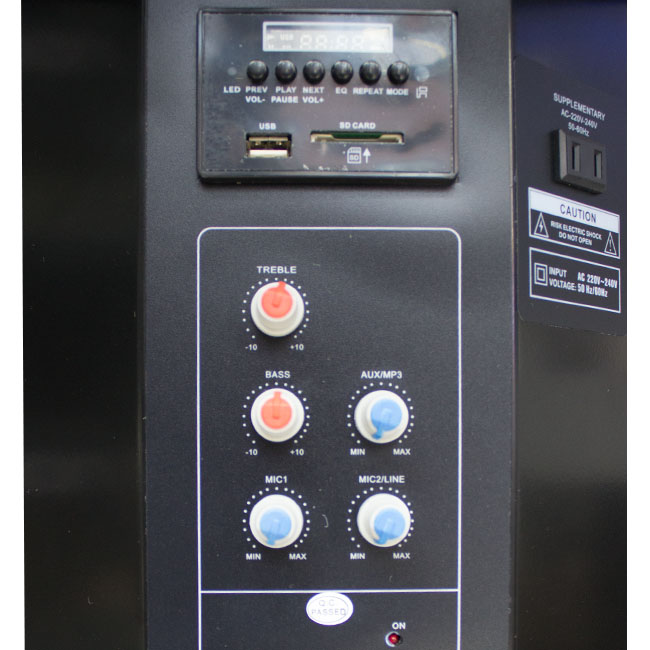

– LED display
– LED: MP3 player working state
PREV: On a curved, long press the volume reduction
PLAY: PLAY the suspension
NEXT: The NEXT song, long press the volume
EQ: Sound mode
REPEAT: REPEAT mode
MODE: The audio source switching MODE conversion key
– U socket
– SD/MMC card pin

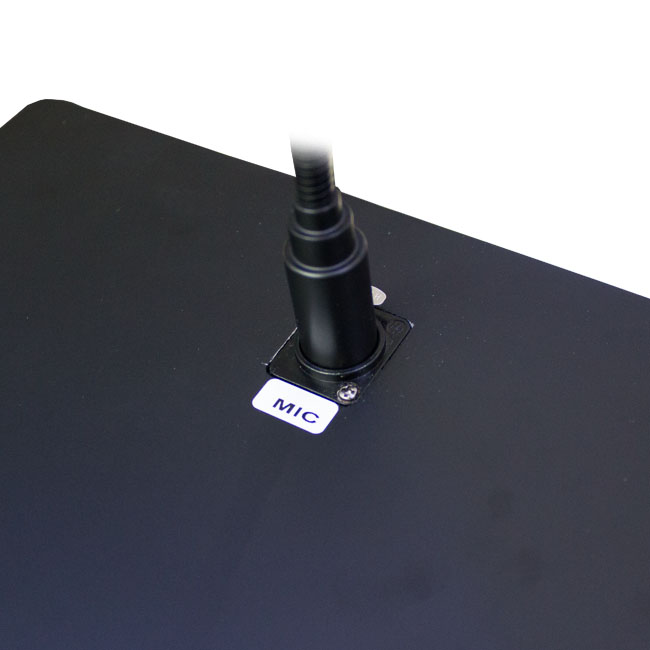

– Microphone MIC 2

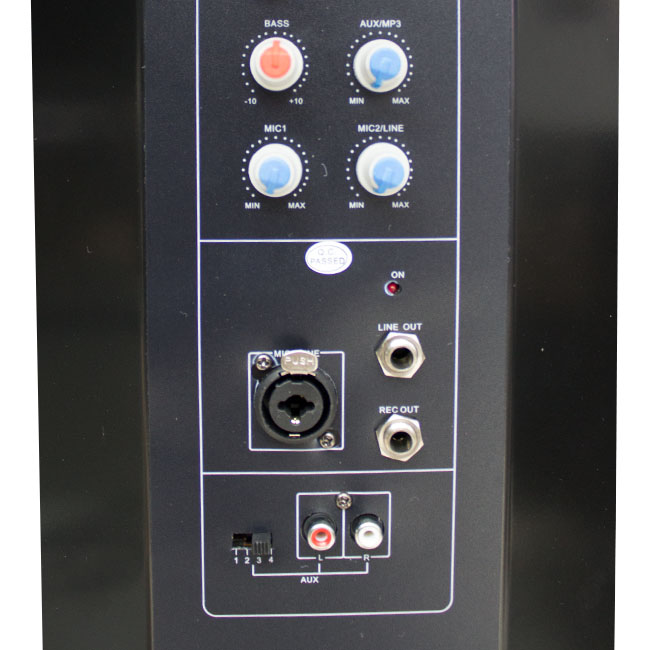

– The voice input attenuation switch
– High regulating
– AUX/MP3 volume
– Bass adjustment
– MIC/LINE 2 volume

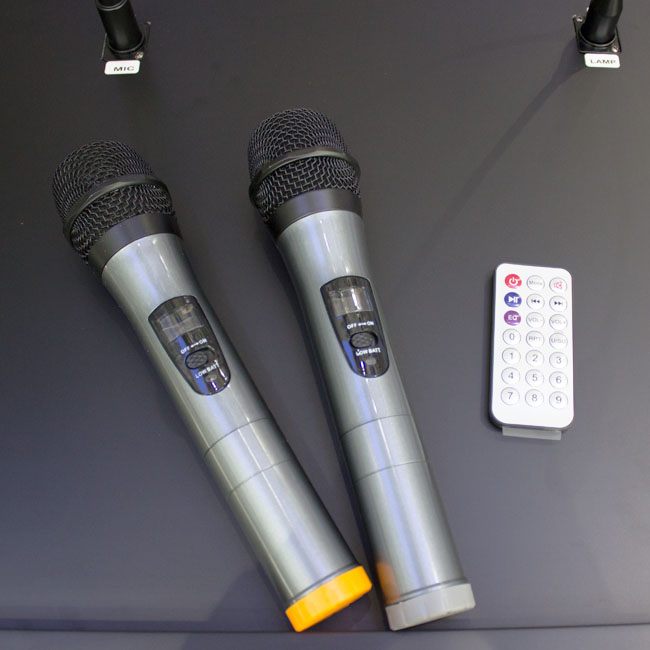

– MIC 1 / Wireless microphone volume control
– Power light
– Signal output
– Audio signal output
– The voice output

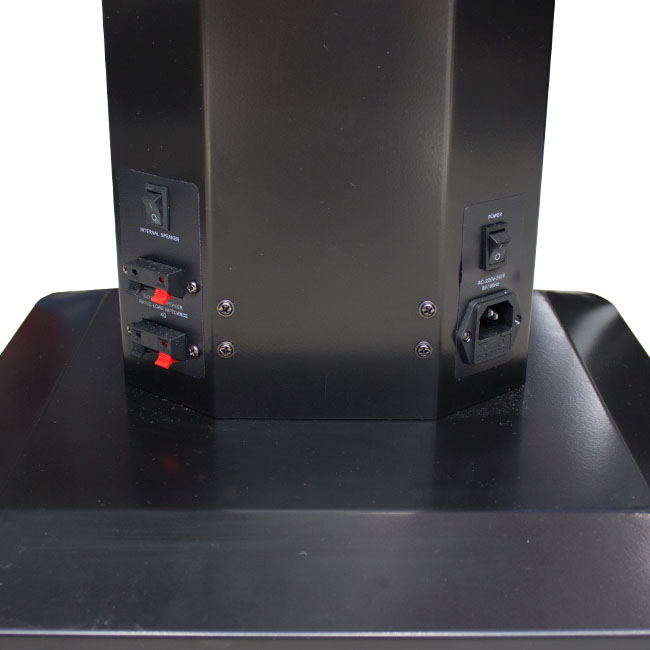

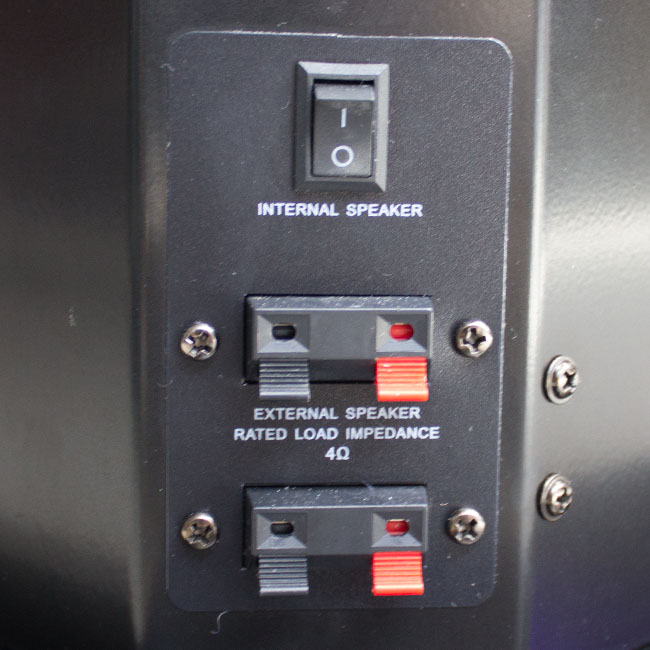

– Outside speakers switch
– External interface speakers

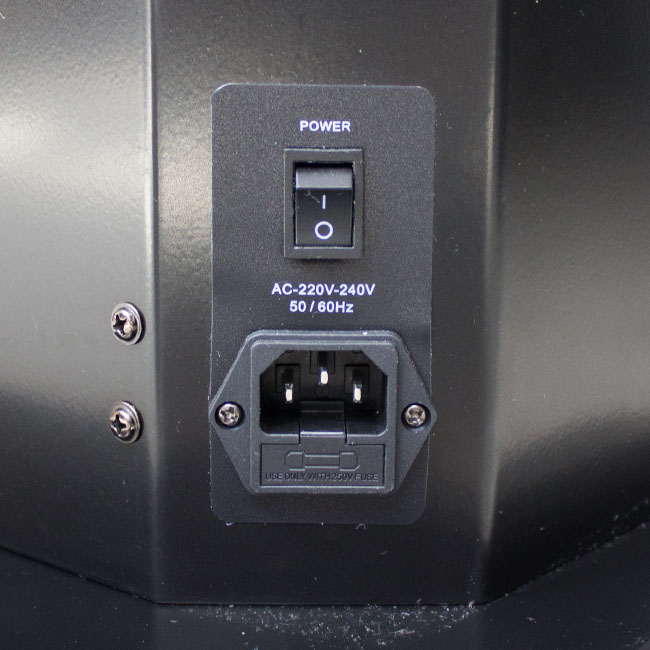

– Power switch
– Power outlet
