AT-One Beltpack System ATW-11/PF with ATR35CW
• Designed for quick and easy use
• Perfect balance between price and performance, the AT-One is ideal for those looking for reliable results at low prices
• The frequency plan of AT-One is divided into two groups with 4 channels available in each group, one in the range of authorized European frequencies and the other in the duplex Gap
• Users can choose up to 4 channels in a group
• The ATW-11 system is equipped with a discreet and robust pocket transmitter
• RF Transmitting power 10mW

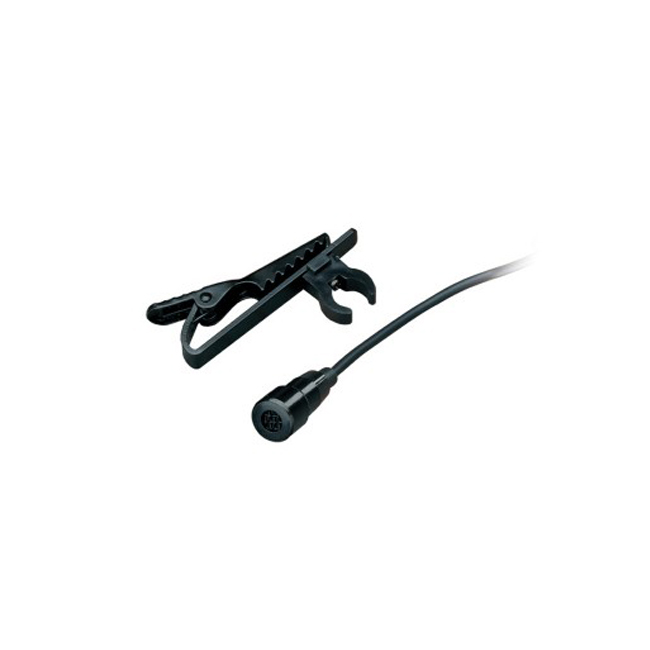

• Comes with an ATR35cW miniature omnidirectional condenser microphone
• Up to 10 hours’ battery life with 2 x 1.5V AA batteries
• RF Indicator light
• Robust construction from high quality components
• Delivered in a transport case with a rack mount kit and detachable antennas
“2 X 4 CHANNELS”
AT-One's frequency plan is divided into two groups, each with 4 channels available, one in the range of authorized European frequencies and the other in the duplex gap.
Users can choose up to 4 channels in a group.
“RF LIGHT INDICATOR”
The display on the half-rack receiver clearly indicates both the RF and AF levels.
“12V POWER”
The ATW-R1 receiver delivers a voltage of 12V / 100 mA for powering an ATW-B80 booster antenna, active splitters, an antenna combiner or any other active component.
Overall System
Operating Frequencies: F-Band: 824 – 831 MHz, 863 – 865 MHz
Number Of Channels: 2 x 4 frequencies
Frequency Stability: +/- 0.005%, Phase lock loop frequency control
Modulation Mode: FM
Frequency Response: 60 Hz – 16 kHz
Operating Range: 60m, typical
Receiver
Receiving System: Antenna switching diversity
Image Rejection: 55dB minimum
Dynamic Range: HH: 108 dB, BP 103 dB (@ max deviation)
Sensitivity: 10dBµV (S/N 60dB @ 20 kHz deviation)
Total Harmonic Distortion: <1% – 20 kHz deviation @ 1 kHz
Audio Output Unbalanced: -2dBV
Audio Output Balanced: 4dBV
Output Connectors (Microphone): Balanced: XLRM-type
Output Connectors (Instrument): Unbalanced: 6.3 mm mono jack
Maximum Output Level : Mic / Line (0 / -20dB)
Antenna Input: BNC type, 50 – BIAS voltage 12V DC 100mA each
Dimensions: 200 mm x 42 mm x 122 mm (W x H x D)
Weight: 418 g without accessories
Accessories Included: AC Adapter, Antennas, Rack mount adapter, protective carrying case
Belt Pack
RF Power Output: 10 mW
Spurious Emissions: Following national regulations
Input Connections:
Pin 1: GND
Pin 2: INST
Pin 3: Mic
Pin 4: DC Bias +10V
Battery Type: Two 1.5V AA alkaline (not included)
Battery Life: 10 hours – depending on battery type and use pattern
Dimensions: 66 mm x 98 mm x 22 mm (W x H x D)
