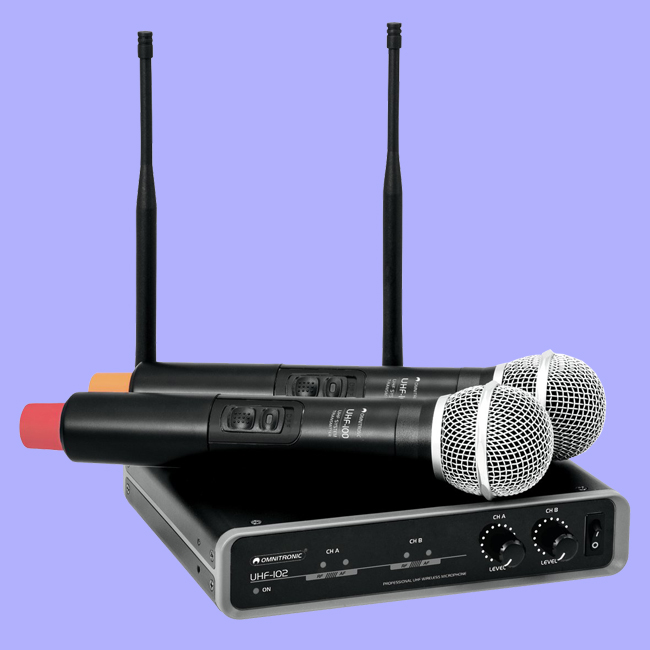

OMNITRONIC UHF-102 Wireless Mic System 828.1/864.8MHz
MIC-01050
2-channel UHF PLL microphone system
• 2-channel receiver units and 2 hand-held microphones with UHF PLL technology
• Available in the license-free frequency ranges 823-832 MHz and 863-865 MHz
• Parallel operation of up to 8 transmission channels is possible without any interference
• 2 separate channels with volume controls and LEDs for carrier signal and audio signal
• Balanced XLR output per channel
• 6.3 mm jack for mixed signal output
• Jack cable included
• Microphones with color indication
• Matching pocket transmitters can be ordered separately
• 483 mm rack installation possible with optional mounting brackets
• License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
• Polar pattern: Unidirectional
• Housing design: (19”) 48,3 cm rack installation possible
• Power connection: Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m) (provided)
Microphone
• Mute function: On/off/mute switch
|
System: |
Non-diversity, 2 channels |
|
Carrier frequency: |
828.100 MHz, 864.800 MHz |
|
Coverage: |
60 m (with line-of-sight) |
|
RF power output: |
5 mW |
|
Modulation method: |
F3F |
|
S/N ratio: |
>105 dB |
|
Selectivity: |
>85 dB |
|
T.H.D.: |
|
|
Audio outputs: |
400 mV, 2.2 kohms (XLR, bal.) |
|
200 mV, 2.2 kohms (6.3 mm jack, unbal.) |
|
|
Power supply: |
|
|
Receiver: |
100-240 V AC, 50/60 Hz via supplied power unit |
|
Microphone: |
2 x 1.5 V battery, type AA |
|
Battery life: |
approx. 10 hours |
|
Dimensions, weight: |
|
|
Receiver: |
225 x 205 x 46 mm (W x D x H), 0.7 kg |
|
Microphone: |
50 x 260 mm (D x L), 230 g |
|
Power consumption: |
5 W |
|
Polar pattern: |
Unidirectional |
|
Frequency range: |
40 – 18000 Hz |
|
Weight: |
1,40 kg |
|
Height: |
4,6 cm |
|
Depth: |
22,5 cm |
|
Width: |
20,5 cm |
|
Power connection: |
Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m) |
|
Material: |
Metal |
