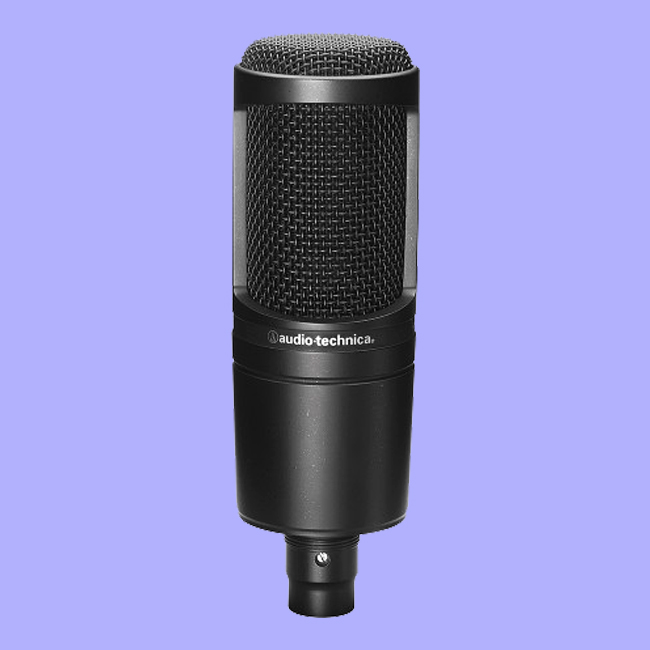

AT2020 Large Diaphragm Condenser Mic.
• One of the best quality / price ratios in side-address studio condenser microphone technology
• Ideal for “Project / home-studio”
• High sound pressure level and outstanding dynamic range make it a particularly versatile microphone
• Made to measure Ø16mm low-mass diaphragm, providing both wide frequency response and superior transient response
• Cardioid polar pattern improves isolation of desired sound source and a reduction of sound to the side and rear

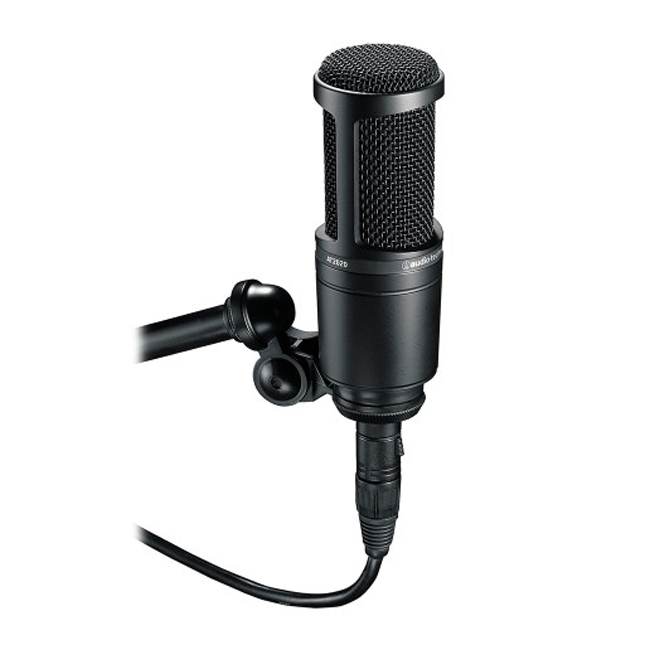

• Screw fixture and swivel foot ensure secure mounting and facilitate accurate microphone positioning
• With its low operating noise, it is suitable for use with sophisticated recording equipment
• Can be suspended optionally using AT8458
“IDEAL FOR PROJECTS / HOME STUDIO”
At a very affordable price, the AT2020 is the best choice for a first cardioid condenser studio microphone, combining performance, quality, robustness and versatility.
“HIGH SPL HANDLING”
Its high sound pressure level (144 dB) and exceptional dynamic range make the AT2020 particularly versatile.
“ROBUST CONSTRUCTION”
Technical design and advanced manufacturing ensure compliance with Audio-Technica's strict standards of consistency and reliability.
Element: Fixed-charge back plate, permanently polarized condenser

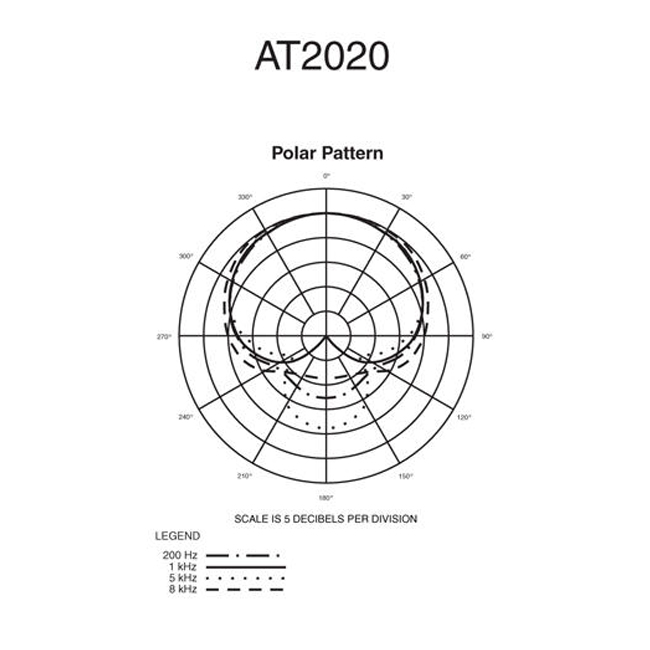

Polar Pattern: Cardioid

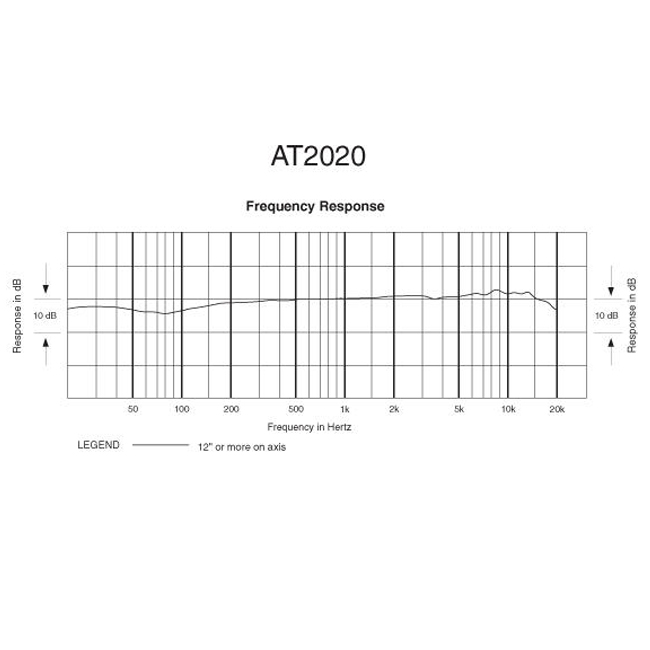

Frequency Response: 20 – 20,000 Hz
Open Circuit Sensitivity: -37 dB (14.1 mV) re 1V at 1 Pa
Impedance: 100 ohms
Maximum Input Sound Level: 144 dB SPL, 1 kHz at 1% T.H.D.
Dynamic Range: 124 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio: 74 dB, 1 kHz at 1 Pa
Phantom Power Requirements: 48V DC, 2 mA typical
Weight: 345g

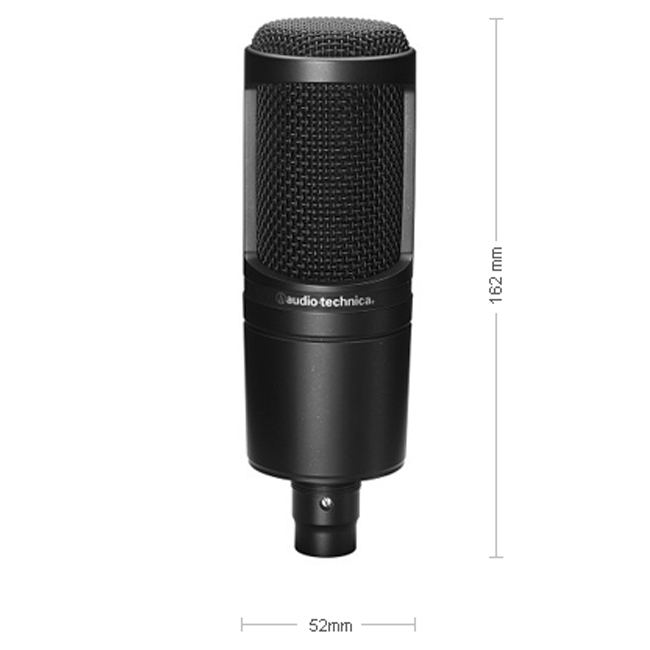

Dimensions: 6.38” (162.0 mm) long, 2.05” (52.0 mm) maximum body diameter
Output Connector: Integral 3-pin XLRM-type

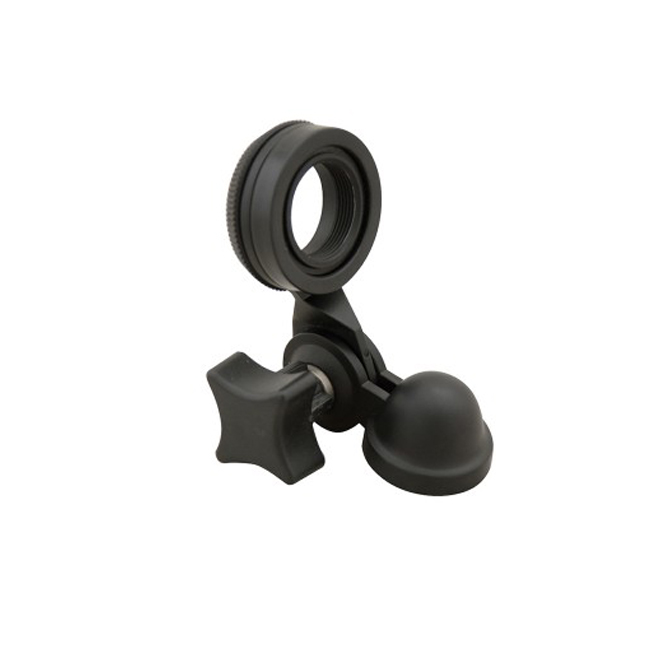

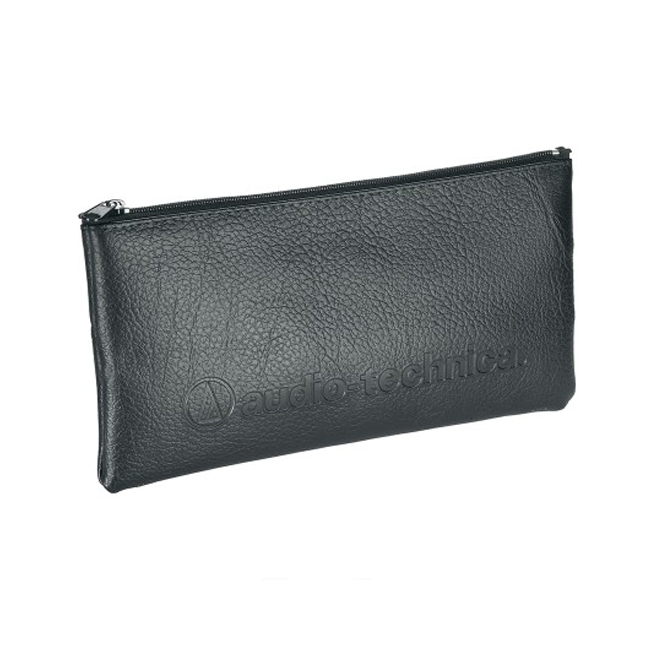

Accessories Included: Stand mount for 5/8”-27 threaded stands; 5/8”-27 to 3/8”-16 threaded adapter; soft protective pouch
