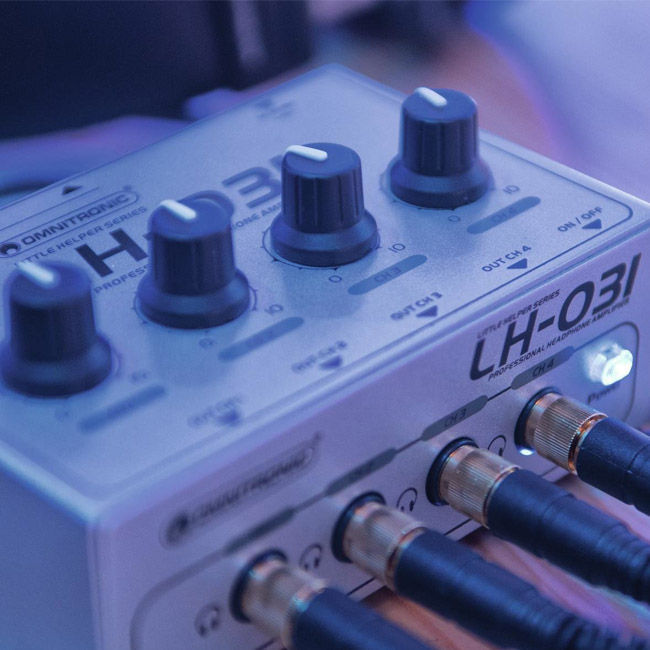

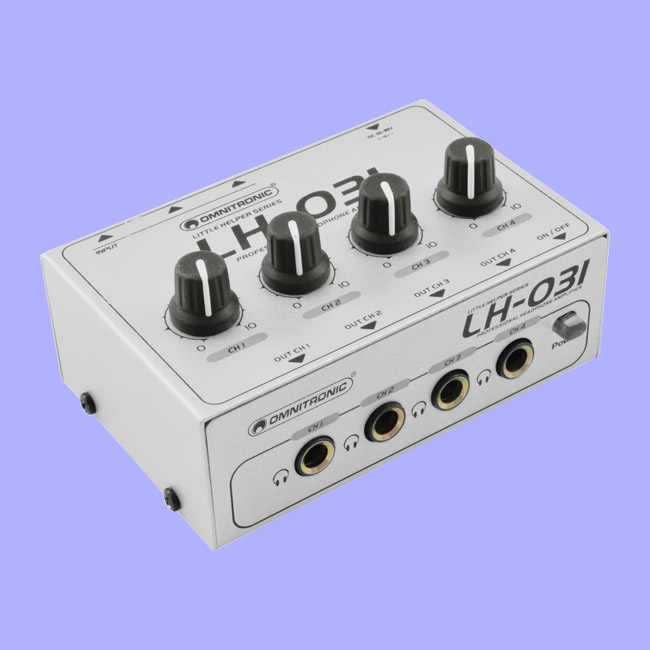

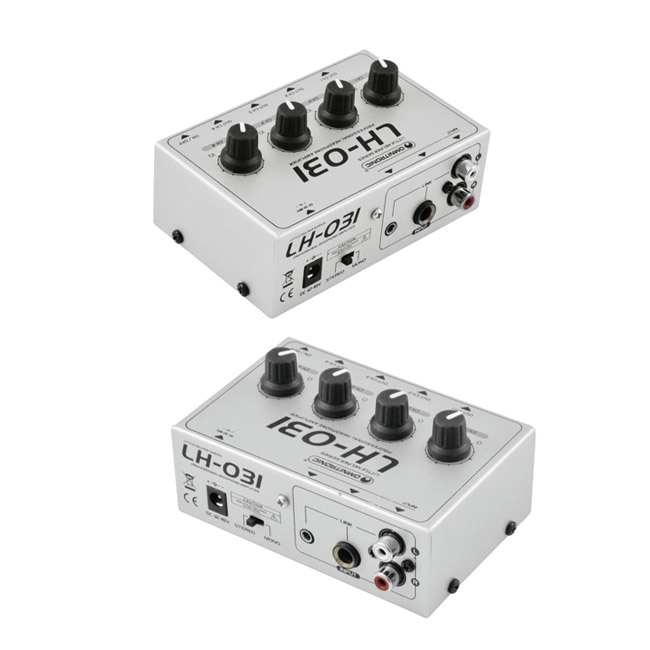

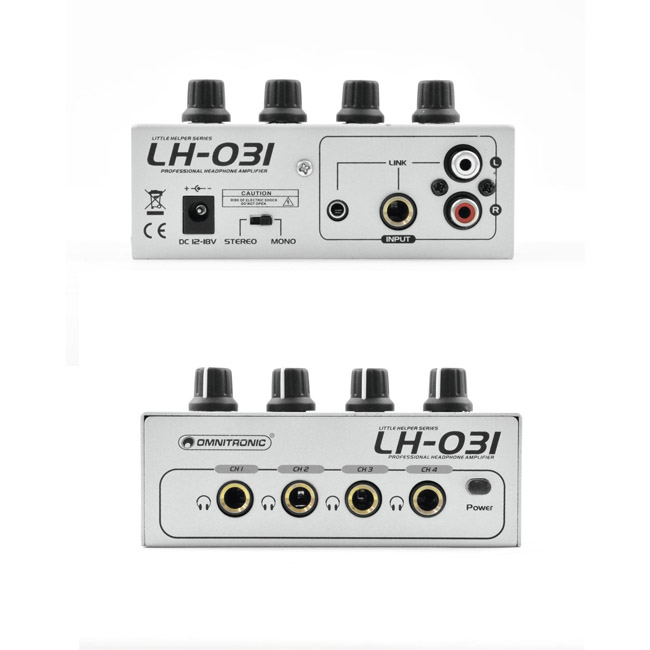

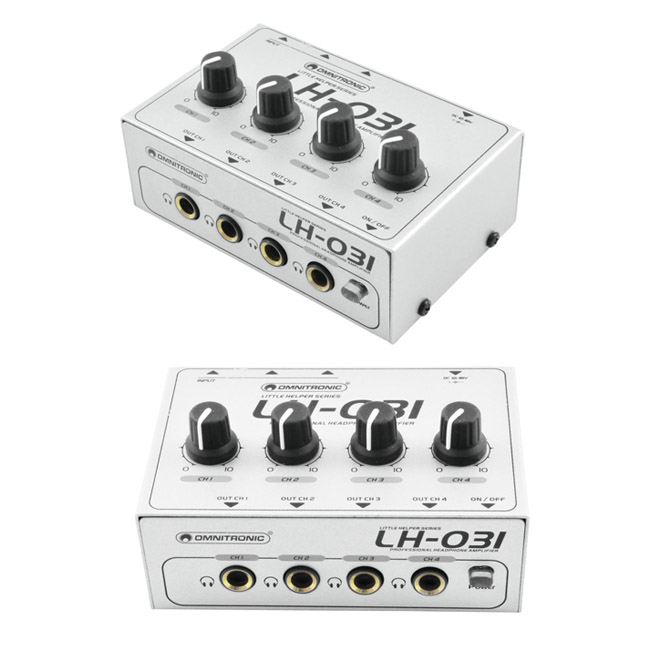

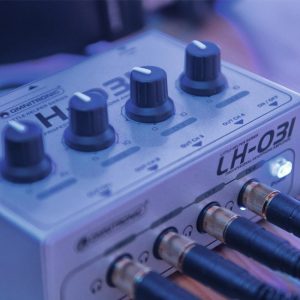

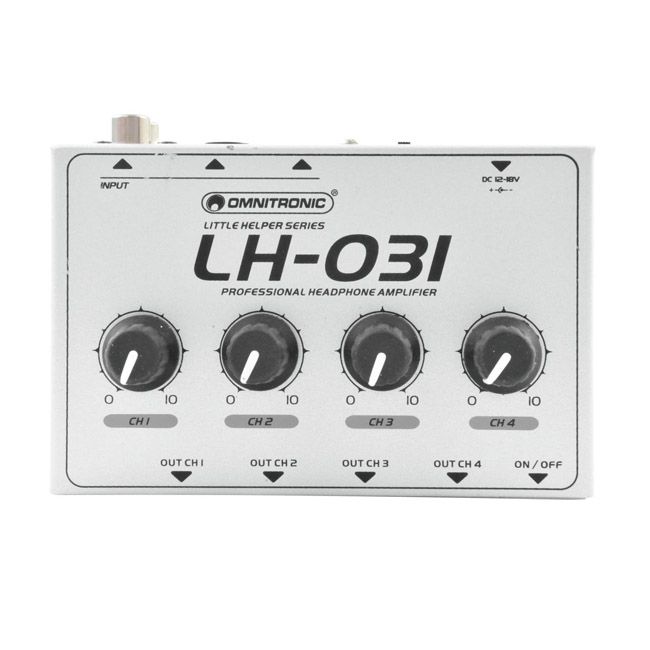

OMNITRONIC LH-031 Headphone Amplifier
FEATURES
4-channel headphone amplifier, RCA and 6.3 mm jack
• Distributes the signal of 1 audio source to 4 sets of headphones
• 1 stereo input (switchable to mono) via RCA, 3.5 mm and 6.3 mm jack connectors
• 4 separately controllable headphone outputs via 6.3 mm jacks
Package contents
• 1 x device, 1 x external mains adapter, 4 x foot, 1 x user manual
TECHNICAL SPECIFICATIONS
Power supply:
100-240 V AC, 50/60 Hz
12 V DC 150 mA
Power connection:
Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Frequency range: 20 – 20000 Hz
S/N ratio: >90 dB
THD: <0,008 % at 1 kHz
Impedance:
Input: 100 kOhm , unbal.
Output: 51 Ohm
Gain: 20 dB
Max. level: Input: +14 dBV
Color: Silver
Dimensions: Width: 11,3 cm
Depth: 8,5 cm
Height: 5,5 cm
Weight: 570 g
Device
Weight: 390 g
