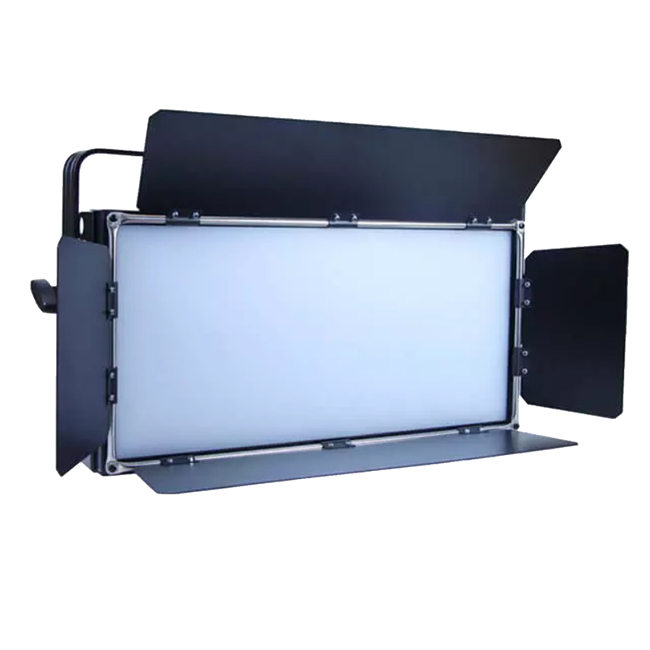

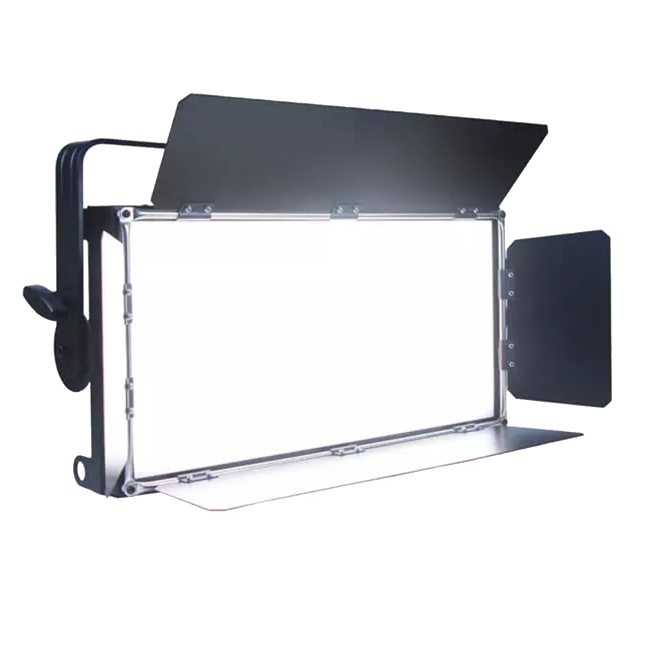

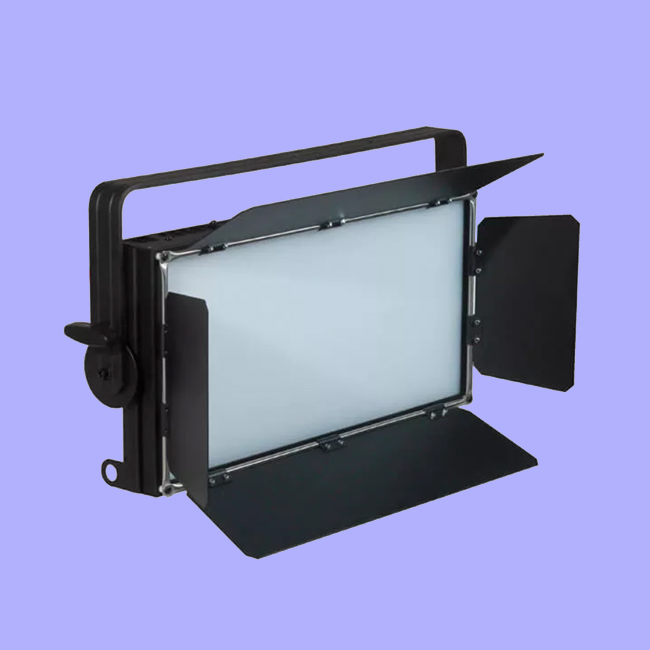

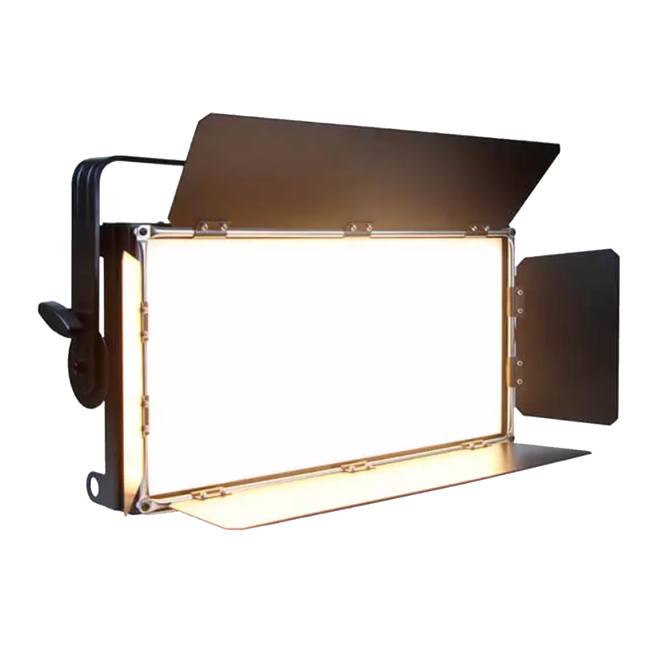

250W Colorful RGBW 4in1 LED Soft Video Panel Light
Based on the LED Film and Television Flat Light, using high brightness SMD LED chips beads matrix arrangement of large area, through the whole aluminum shell to realize heat dissipation naturally.
This light has high brightness, good head dissipation, ultra-quiet and other features. It can satisfy the requirement of indoor and outdoor movie filming for the lighting layout. It is a good substitute of the traditional three basic colors light.
Features
- The light’s lighting function is controlled by DMX-512, very convenient;
- Using bead LED chips, pure color temperature, can realize 0-100% linear dimmer;

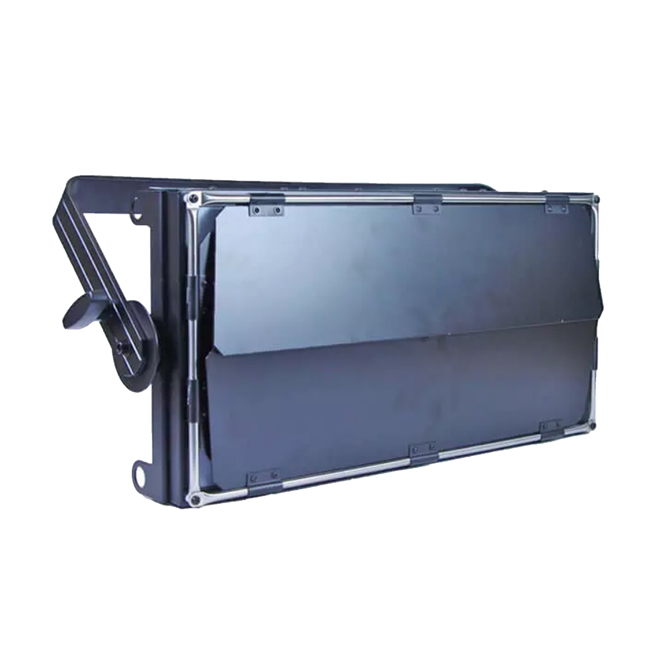

- The light body adopts outside frame design, the modeling is beautiful, installation very convenient, safe and reliable;
- The color temperature can be adjusted from warm white to cold white.
Technical Specifications
Light Sources
- LED: 480pcs 0.5W RGBW 4in1 EDISON led lamps
- Lifespan: 50000hours
- Color: RGBW 4in1 color mixing
Optics
- Beam angle: 170degree
- Dimmer: 0~100% linear dimmer
Light Output

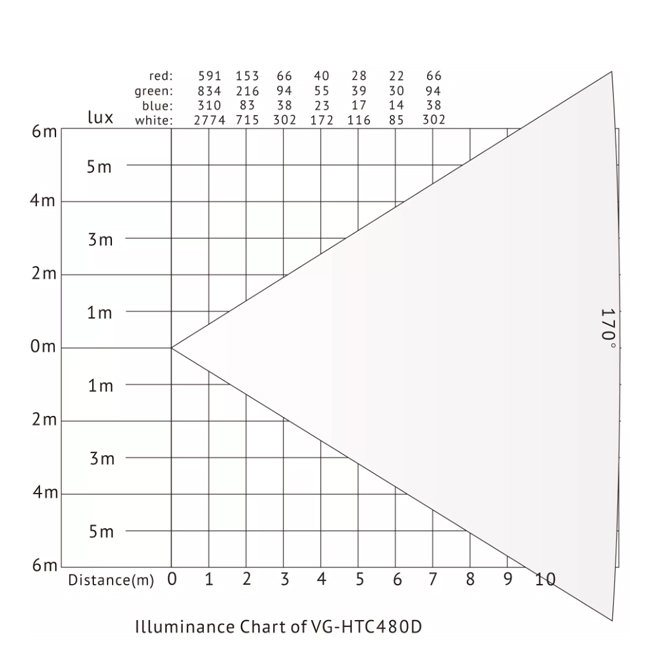

- Iluminance: white: 2774lux@1m; Red: 591lux@1m; Green: 834lux@1m; Blue: 310lux@1m
- CRI: Ra≥90
- Color temperature: 1800K-10000K adjustable
Control
- DMX channel: 11CH
- Control mode: RDM; DMX-512, Demo mode, Manual; Dim-4 curves

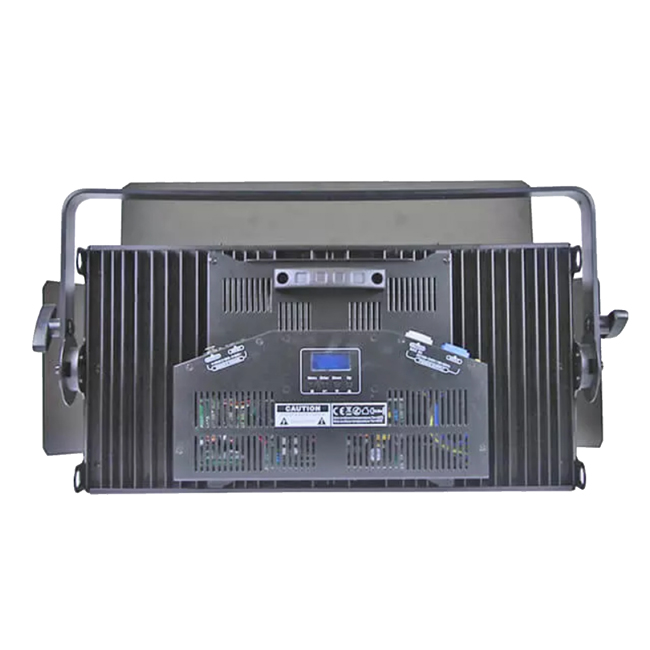

- Control panel: LCD display + 4 buttons
Power Supply
- Related voltage: AC100V-240V, 50/60Hz, switching power supply
- Related power: 250W
Construction
- Body dimension: D542*W266*H125mm
- Net weight: 9kg
- Shell color: black
- Housing material: aluminum alloy
Working Environment
- Working temperature: -25-40℃

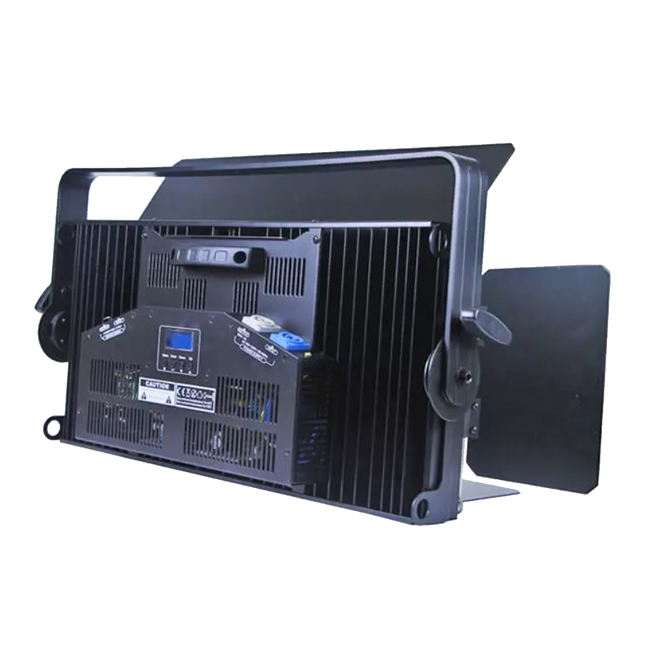

- Cooling: aluminum radiator and light body, no fan
- Protection rating: IP20
