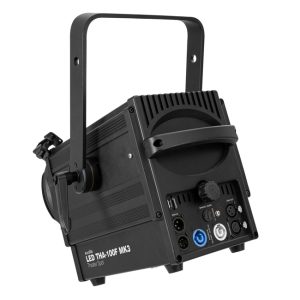

EUROLITE LED THA-100F MK3 Theater-Spot

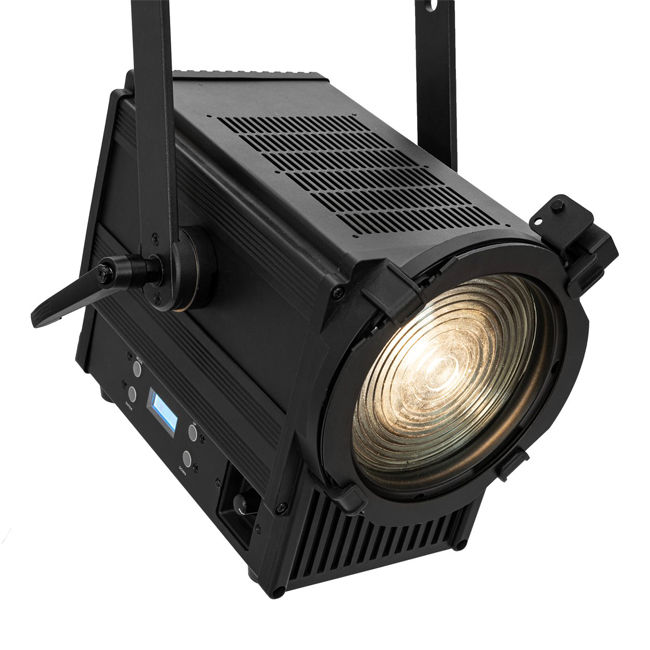

• Fresnel spotlight (fresnel lens), 100 W warm white LED, CRI >90, quiet, DMX
• Variable PWM frequency (pulse-width modulation)

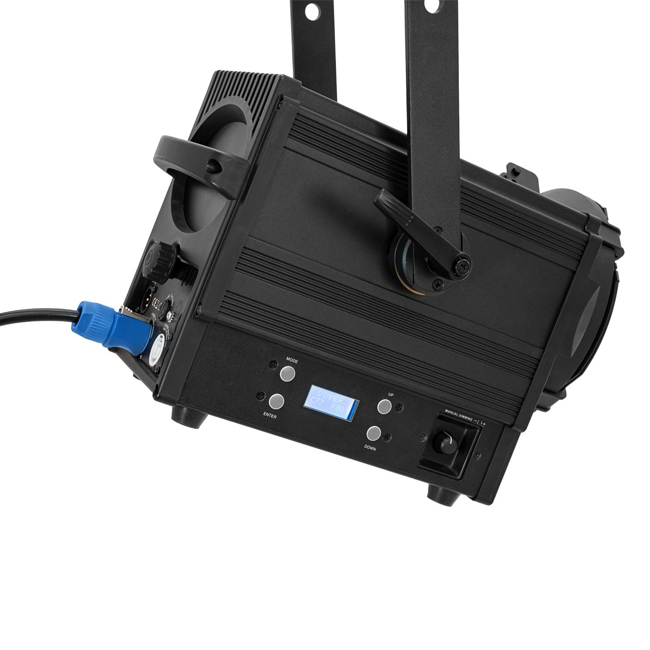

• Control panel with LC display for easy configuration
• Stand-alone, master/slave and DMX mode
• Electronic dimmer (0-100%)
• Various dimmer curves selectable
• Strobe effect
• Manual zoom 8-55°
• Swivel mounting bracket

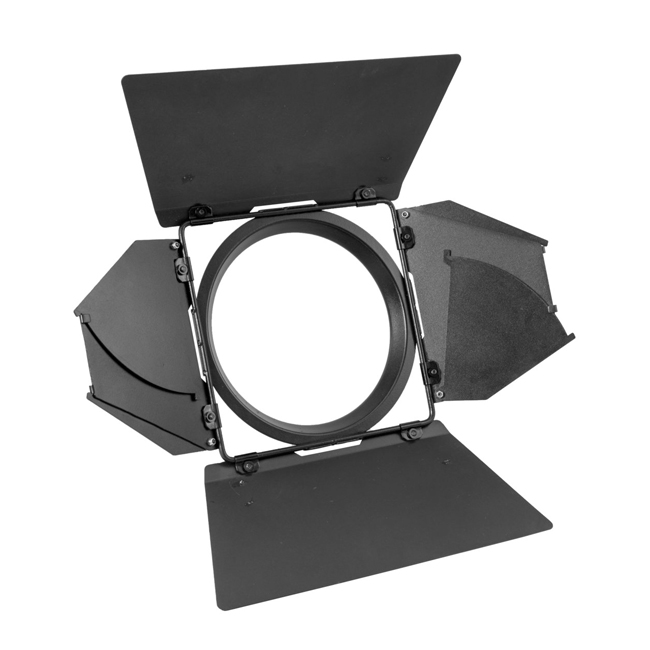

• Rotatable barn doors and color filter frame included in the delivery
• Supports QuickDMX – the wireless DMX system from Eurolite
• Built-in phantom-powered USB port for QuickDMX, CRMX and WDMX receivers (optional)
• Durable metal cabinet
• Additional rubber feet protect the device when positioned on the floor
• Color temperature 3000 K
• Mains input and output for power linking up to 8 units
• LED: 1 x COB (chip-on-board) 100 W warm white (WW)
• Can be operated in 1; 3 CH mode
• The device is cooled by super silent fan
• Controlling by stand-alone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
• Preprogrammed in Light Captain
• Flicker-free projection
• Very high color rendering index (CRI)
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 95 W
IP classification: IP20
Protection class: Class I

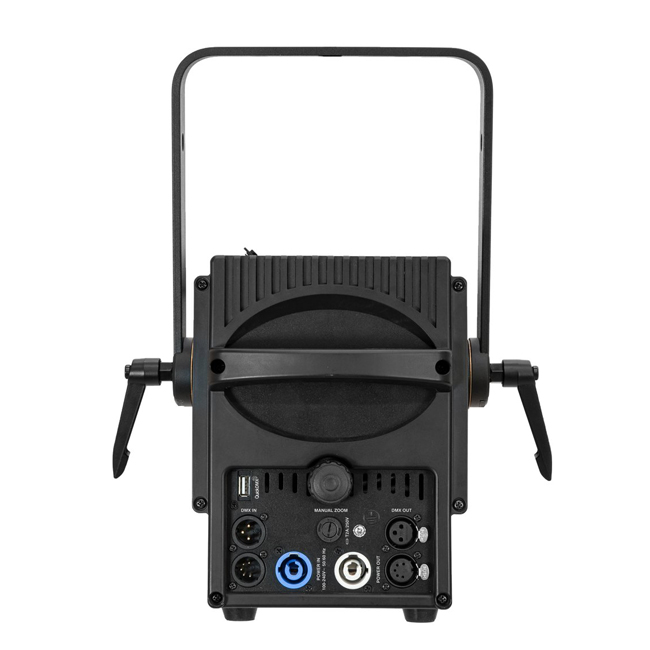

Power connection: Mains input P-Con (blue), mounting version
Cable length: Approx. 1,1 m
Power output: P-Con (gray), mounting version
Fuse: 5 x 20 mm, T 2 A Fuse replaceable
Lamp type: LED lamp
LED: 1 x COB (chip-on-board) 100 W warm white (WW)
Color temperature: 3000K
Flash rate: 20 Hz
DMX channels: 1; 3
DMX input: 3-pin XLR (M) mounting version
5-pin XLR (M) mounting version
DMX output: 3-pin XLR (F) mounting version
5-pin XLR (F) mounting version
Cooling: Super silent fan
Control: Stand-alone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Light Captain
Beam angle: 8 – 55°
Beam angle (1/2 peak): 8 – 40°
Beam angle (1/10 peak): 16 – 55°
Color rendering index (CRI) more than: 95 Ra
Housing color: Black
Display type: LCD display
Dimensions:
Length: 35,0 cm
Width: 31,5 cm
Height: 39,5 cm
Weight: 7,15 kg
