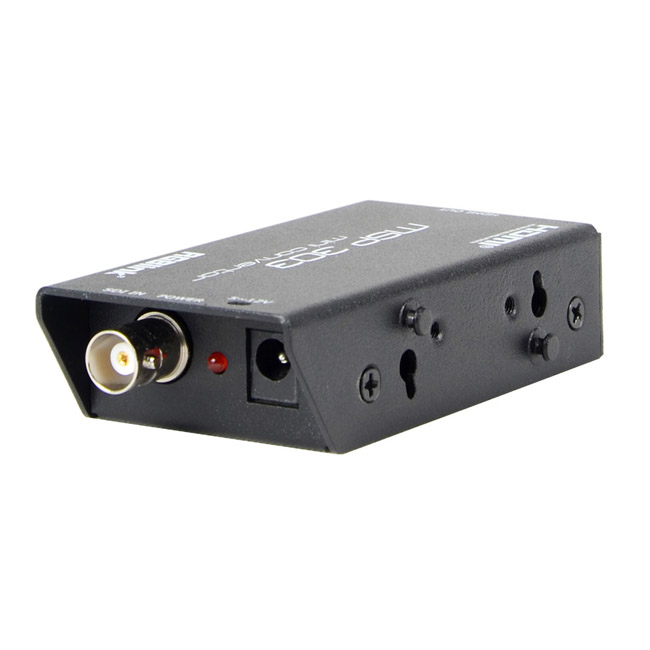

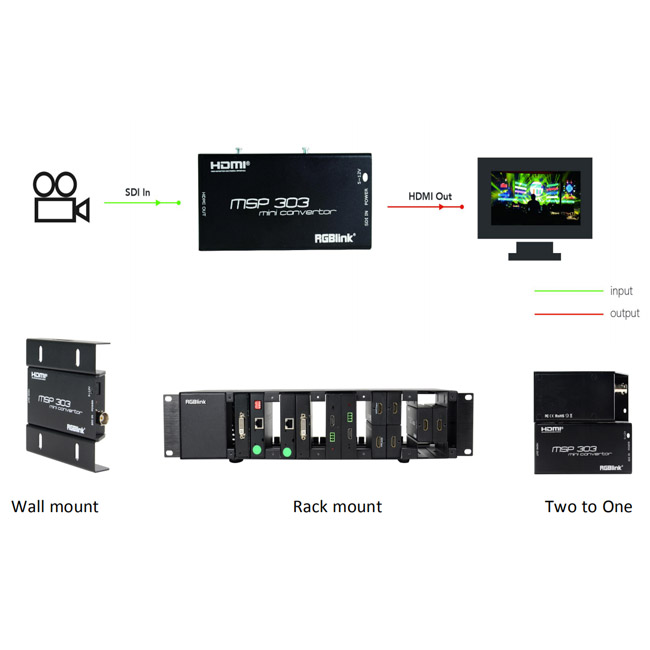

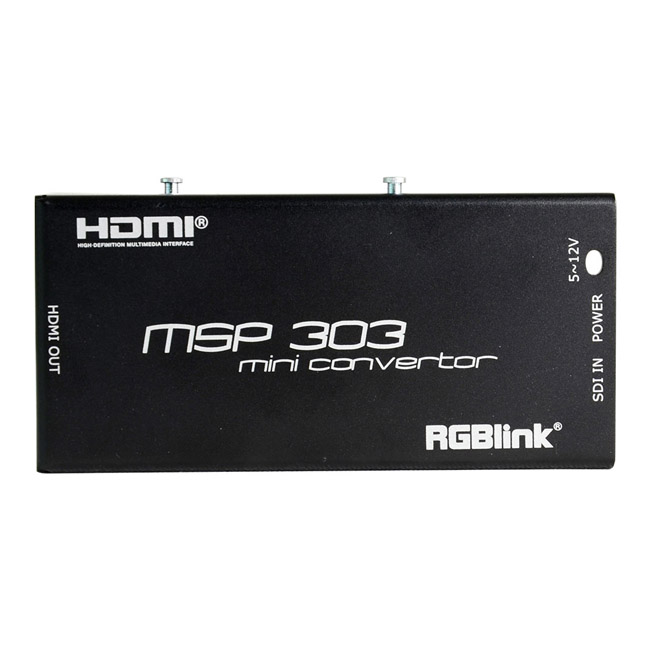

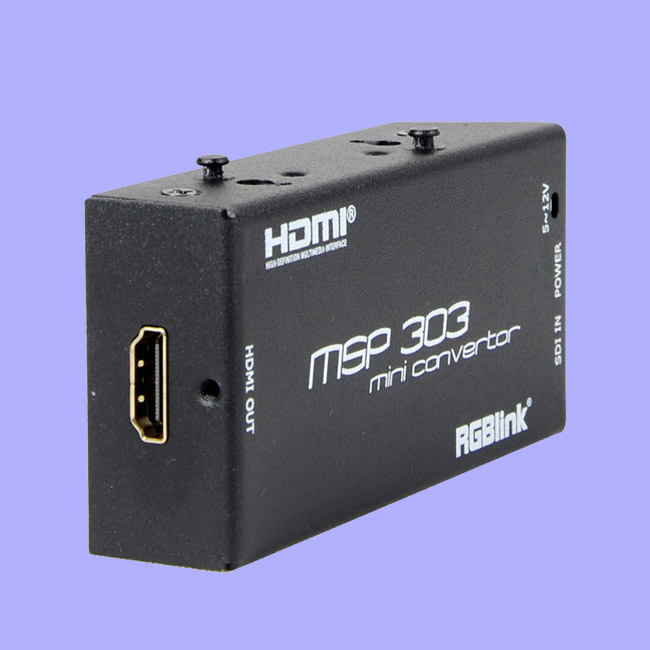

MSP 303 is a SDI to HDMI video converter, which supports 1 SDI input and 1 HDMI output. SDI input support480i@60, 576i, 720P@50/59.94/60, 1080i@50/59.94/60, 1080P@23.98/24/25/29.97/30/50/59.94/60. And HDMI output support 720× 480@60, 720×576@60, 1280×720@60, 1920×1080@23.98/24/25/29.97/30/50/59.94/60. Besides, an optional pair of mounting ears can be mounted on the MSP rack.
Key Features:
Mini size
All SMPTE signals compatible
3G/HD/SD SDI Input
Embedded audio
Connectors
Input: 1×SDI
Output: 1×HDMI
Performance
Input resolution:
SDI SMPTE
480i@60 I 576i I 720P@50/59.94/60 I 1080i@50/59.94/60 I
1080P@23.98/24/25/29.97/30/50/59.94/60
Output Resolution:
HDMI SMPTE
480i@60 I 576i I 720P@50/59.94/60 I 1080i@50/59.94/60 I
1080P@23.98/24/25/29.97/30/50/59.94/60
VESA
720×480@60 I 720×576@60 I 1280×720@60 I
1920×1080@23.98/24/25/29.97/30/50/59.94/60
Supported Standard:
SDI
SD/HD/3G
HDMI 1.3
Power
Input Voltage: 5-12V DC
Physical
Weight: 0.15kg
Dimension: 98mm×47mm×24mm
