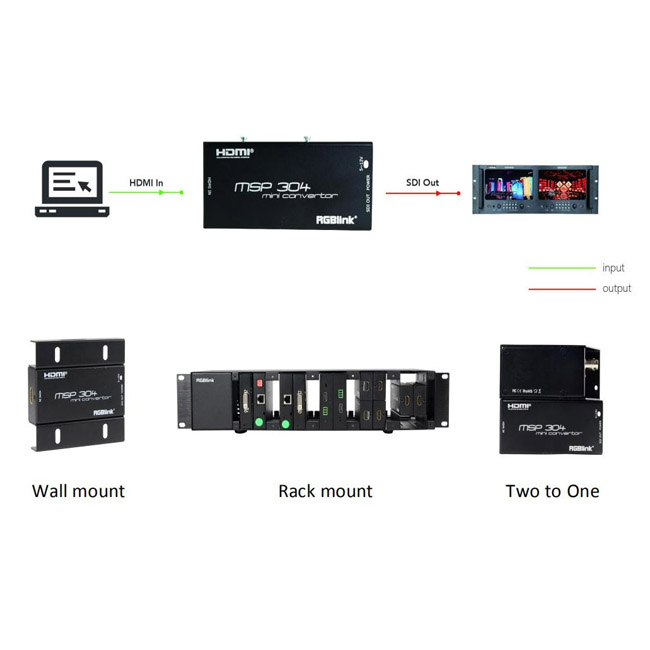

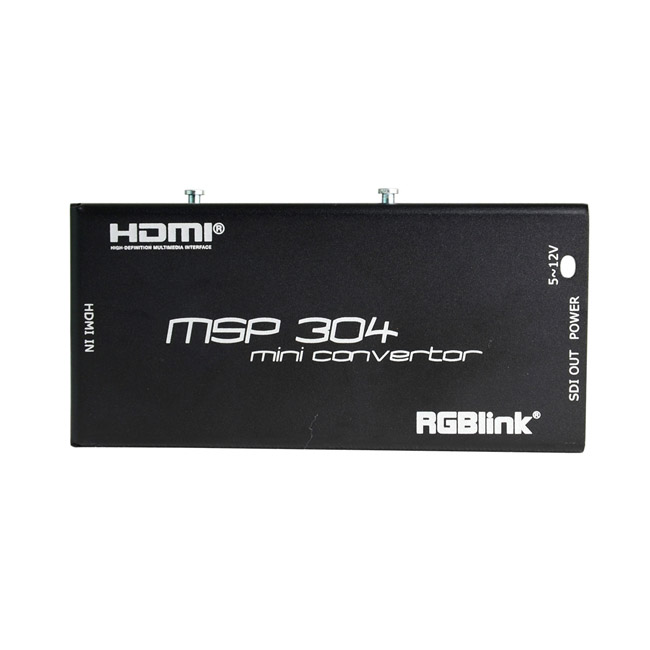

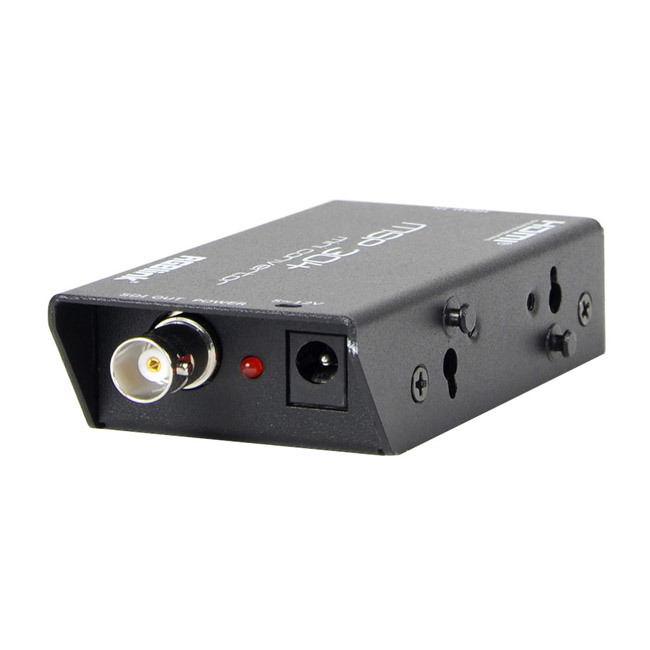

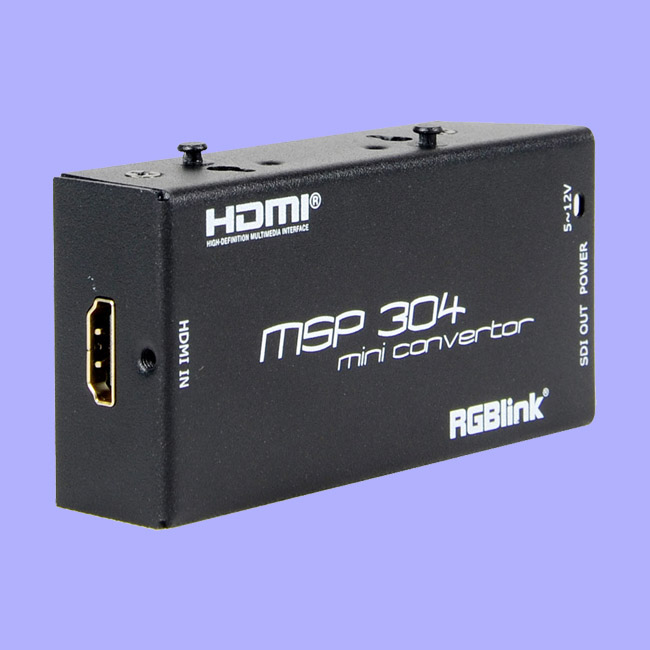

MSP 304 is a HDMI to SDI video converter, which supports 1 HDMI input and 1 SDI output. HDMI input support 720×480@60, 720×576@60, 1280×720@60, 1920×1080@23.98/24/25/29.97/30/50/59.94/60. And SDI output support480i@60, 576i,720P@50/59.94/60,1080i@50/59.94/60, 1080P@23.98/24/25/29.97/30/50/59.94/60. Besides, an optional pair of mounting ears can be mounted on the MSP rack.
Key Features:
Mini size
All SMPTE signals compatible
3G/HD/SD SDI output
Embedded audio
HDMI 1080p input
Support HDCP
Connectors
Input: 1×HDMI
Output: 1×SDI
Performance
Input resolution:
HDMI SMPTE
480i@60 I 576i I 720P@50/59.94/60 I 1080i@50/59.94/60 I
1080P@23.98/24/25/29.97/30/50/59.94/60
VESA
720×480@60 I 720×576@60 I 1280×720@60 I
1920×1080@23.98/24/25/29.97/30/50/59.94/60
Output Resolution:
SDI SMPTE
480i@60 I 576i I 720P@50/59.94/60 I 1080i@50/59.94/60 I
1080P@23.98/24/25/29.97/30/50/59.94/60
Supported Standard:
HDMI 1.3
SDI SD/HD/3G
Power
Input Voltage: 5-12V DC
Physical
Weight: 0.15kg
Dimension: 98mm×47mm×24mm
