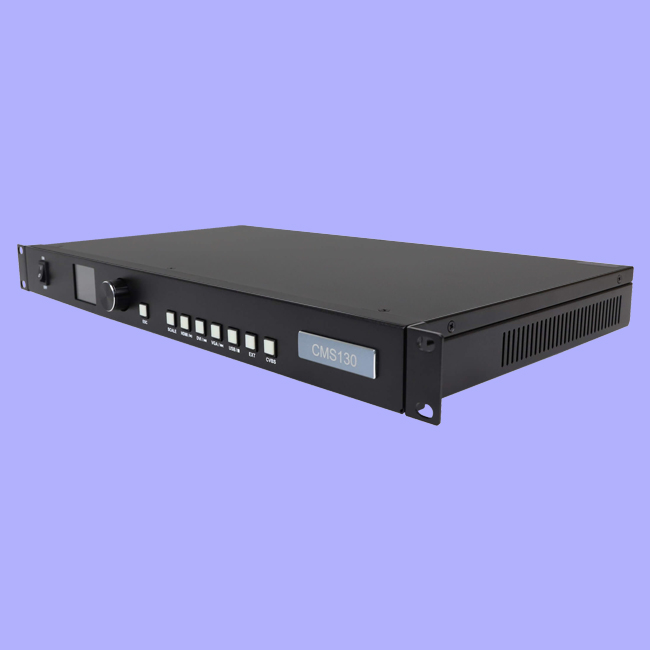

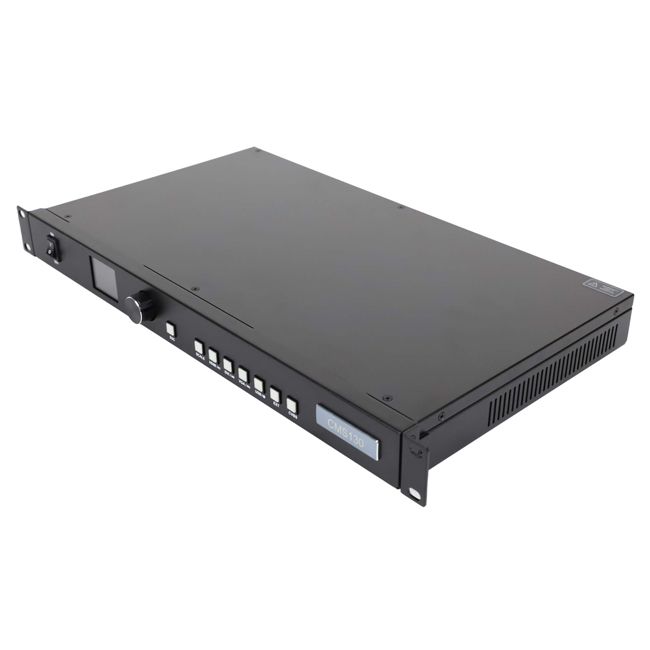

The CMS130 all-in-one controller is a pure hardware device that is easy to operate. It features different types of high-definition input connectors, and integrates professional LED screen control technologies and video processing capabilities, making on-site installations effortless. Designed with an industrial-grade casing, the CMS130 is well suited for complex operational environments and can be widely used in applications such as malls, hotels, exhibition sites and TV studios.
Features：

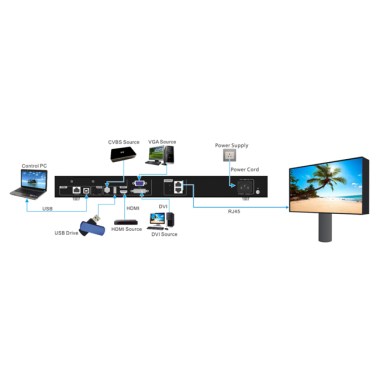

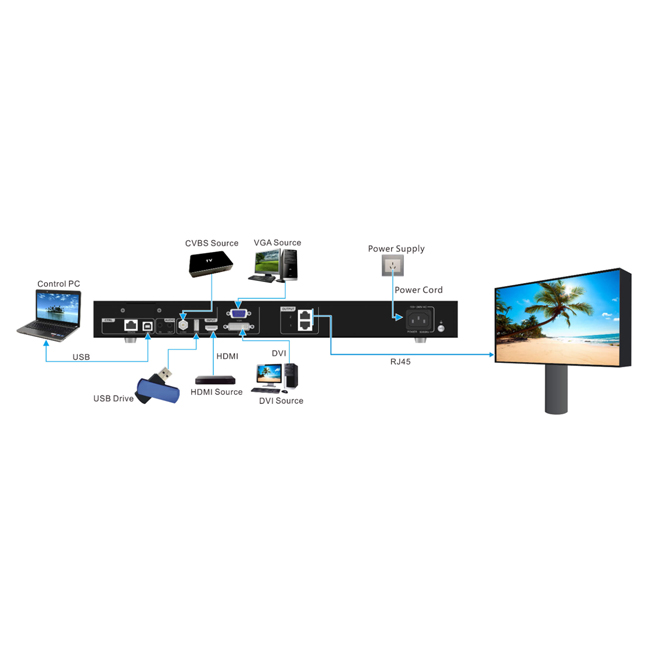

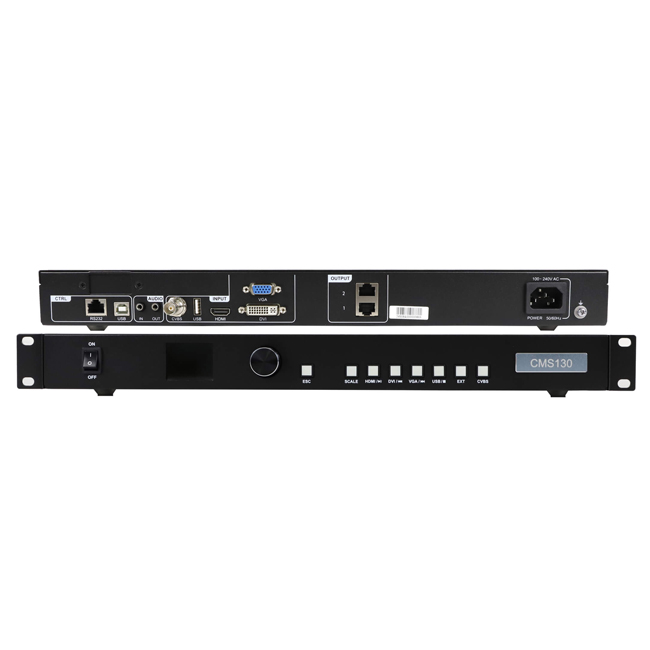

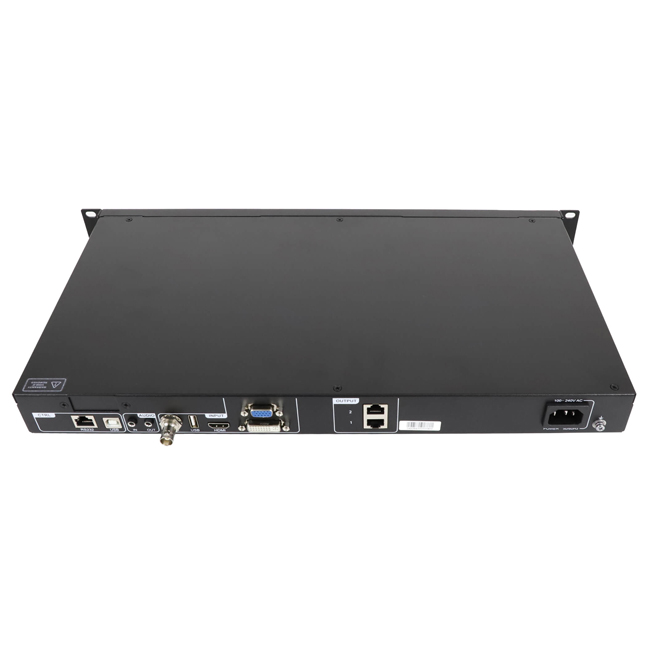

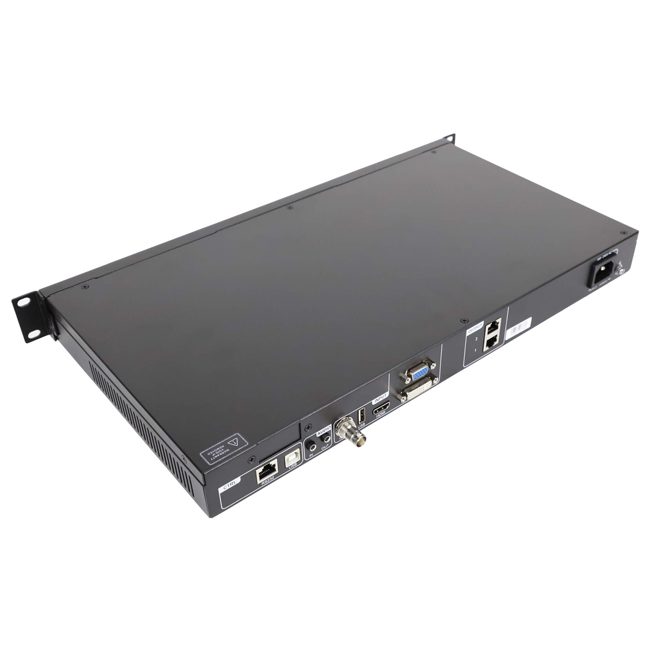

1.Up to five input connectors: 1x DVI, 1x HDMI 1.3, 1x VGA, 1x USB, 1x CVBS;
2.Adjustable layer position and size, and input cropping supported;
3.Press input source buttons to easily switch between the input sources;
4.External independent audio;
5.EDID management supported;
6.Personalized image scaling: Full screen, pixel to pixel and custom;
7.Quick configuration to easily configure the LED screen;
8.2x Ethernet output connectors with a loading capacity of up to 1.3 million pixels;
9.Easy preset saving and loading Up to 6 user-defined presets;
10.LED screen color adjustment, such as brightness and Gamma;
11.Controlled via central control devices.
Overall Specifications
Electrical Parameters
Power connector: 100-240V AC, 50/60Hz
Rated power consumption: 12 W
Operating Environment
Temperature: –20°C to +60°C
Humidity: 20% RH to 90% RH, non-condensing
Storage humidity: 10% RH to 95% RH, non-condensing
Physical Specifications
Dimensions: 482.6 mm × 250.0 mm × 50.0 mm
Net weight: 2.8 kg
Total weight: 6 kg
Packing Information
Carrying Case: 565mm × 88mm × 328mm
Accessories: 1x Power cable, 1x USB cable, 1x DVI cable, 1x HDMI cable, 1x Certificate of Approval
Large Outer Case: 585mm × 353mm × 113mm
Noise Level (typical at 25°C/77°F): 38 dB (A)
