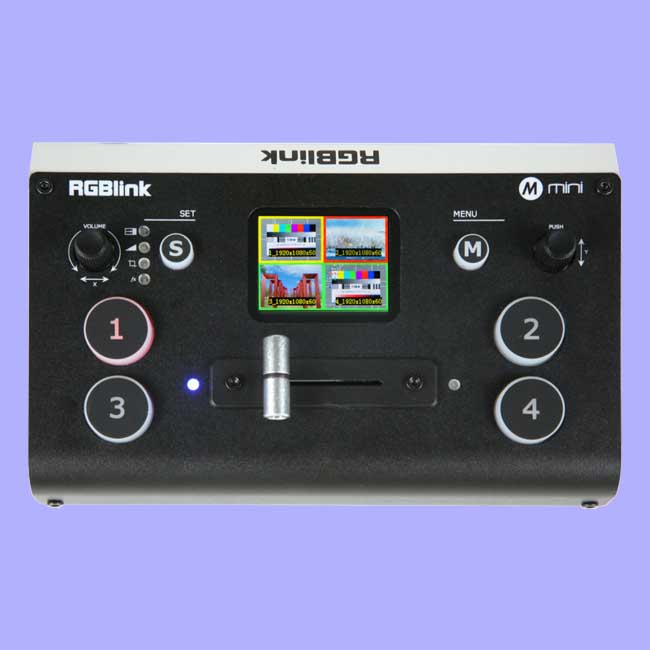

Key Features
● USB 3.0 live streaming port
● Compact design
● Live preview of four inputs
● Seamless switching
● Auto cut and manual switch
● Transition effects
● PIP (Picture-In-Picture) presets
● Audio insert/extract
● HDMI output as PGM or Multi-view
● Control remotely from XPOSE mini software for computers
● Control remotely from the XPOSE mini app for mobiles & tablets
● Support for third party apps including OBS Studio

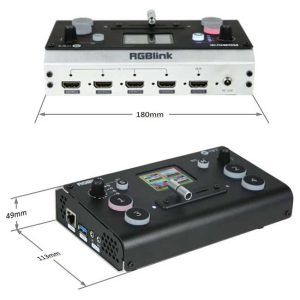

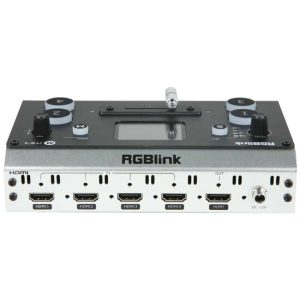

Connectors
Input: HDMI, 4 x HDMI-A
Output: HDMI, 1 x HDMI-A; USB 3.0, 1 x USB Type A
Audio: In, 1 x 3.5mm Stereo Jack; Out, 1 x 3.5mm Stereo Jack
Communications: LAN, 1 x RJ45
Power: 1 x DC Jack
Performance
Input Resolutions:
HDMI
SMPTE 720p@50/60 | 1080i@50/60 | 1080p@23/24/30/50/60
VESA 1024×768@60 | 1280×720@60 | 1280×768@60 | 1280×800@60 | 1280×1024@60 | 1360×768@60 | 1366×768@60 | 1440×900@60 | 1600×1200@60 | 1680×1050@60 | 1920×1080@60 | 1920×1200@60
Output Resolutions:
HDMI
SMPTE 720p@50/60 | 1080p@24/25/30/50/60
VESA 1024×768@60 | 1280×720@60 | 1280×768@60 | 1280×1024@60 | 1360×768@60
USB Streaming 1280×720@50/60 | 1280×1024@60 | 1360×768@60 | 1920×1080@24/25/30/50/60
Note: Refer connected computer for applicable resolution support
Supported Standards:
HDMI 1.3
USB 3.0
H.265 ITU-T H.265 | ISO/IEC 23008-2
Power
Input Voltage: DC 12V/1.5A (via Plug Pack supplied)
Max Power: 18W
Environment
Temperature: -0℃～70℃
Humidity: 10% ~ 85% RH
