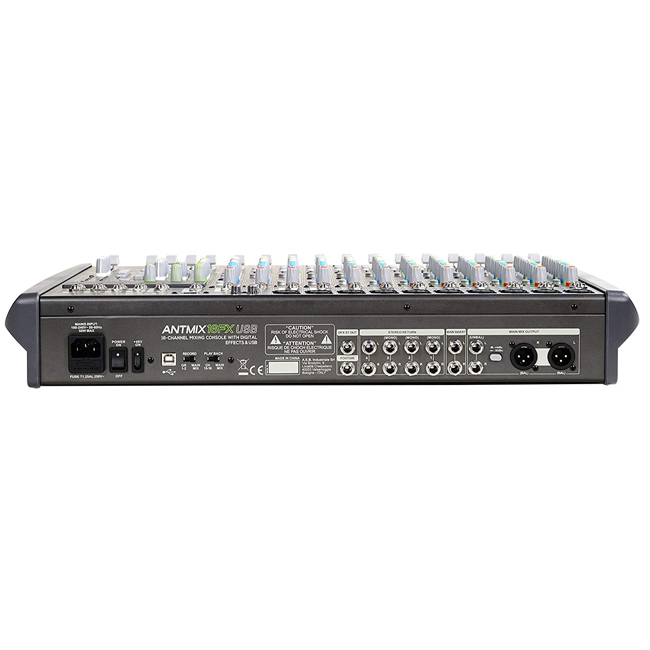

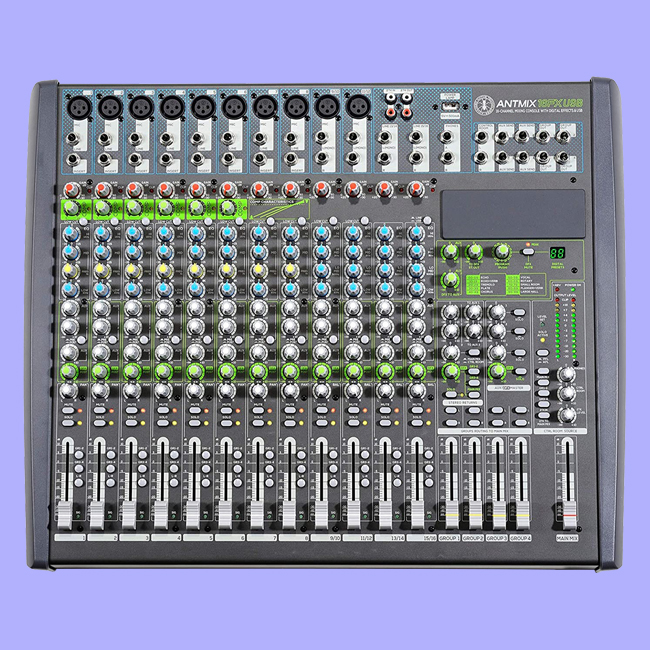

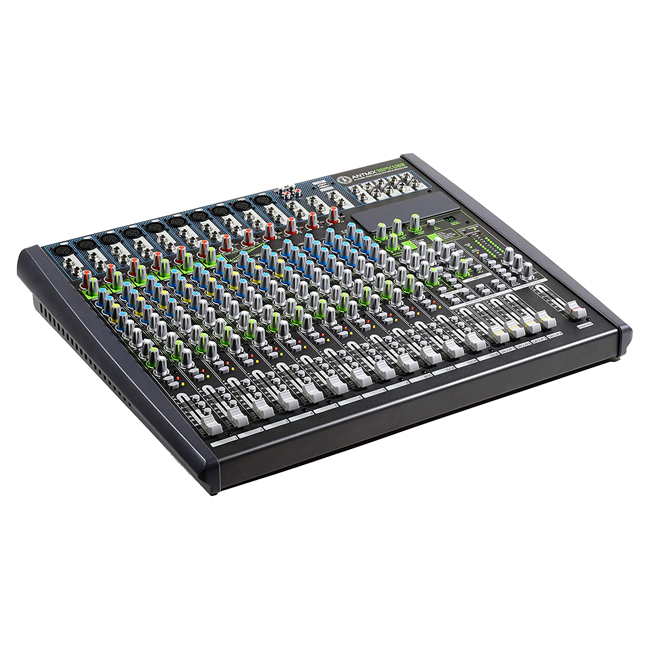

ANTMIX 16FX USB
16 CHANNEL MIXING CONSOLE
ANTMIX 16FX allows to manage sound in many different applications, even the more complex live music set ups. The smart design of the console helps all kind of user to get the most of any audio performance. It represents a smooth solution featuring pro-details such as an advanced internal DSP with different effects and variations, the built-in compressor for main microphone inputs , 60 mm faders as well as a series of I/O to fulfill a wide range of applications.
ANT MIX 16 provides an integrated USB interface allowing direct connetion with a computer, in order to send an audio track to the consolle or record the performance on a stereo track.
Moreover, optional cards MPX 1624 and BTX 1624 allow respectively cable or Bluetooth connection to any Mp3 reader device .
Mono microphone/line input: 8, 6 with compressor
Stereo microphone/line input: 2
Stereo line inputs: 2
Power supply: 100-240V AC
Power absorption: 50W max
Dimensions (W x H x D): 515 x 460 x 85 mm (20.25” x 18.11” x 33.46”)
Weight: 7Kg – 15.43 lbs
MICROPHONE INPUT
Connector: XLR-F balanced
Impedance: 1.8 kΩ
Frequency response: 20~20kHz +/-1dB
Distortion (THD + N): <0,03% @ +0dB, 22~22 kHz, A weighted
Gain: 0~55dB
Max input: +15dB (balanced)
Low-cut: 75Hz 12dB/ott.
Signal-to-noise ratio: Phantom powering: +48V
LINE INPUT
Connector: 6,35mm (1/4”) balanced – RCA unbalanced
Impedance: 10 kΩ or higher
Frequency response: 20~20kHz +/-1dB
Distortion (THD + N): <0,03% @ +0dB, 22~22 kHz, A weighted
Gain: +15dB~-35dB
Signal-to-noise ratio:
COMMON FEATURES
Compressor (for channel featuring compressor): Gain: 0 —> 9 dB | Threshold: 20 dB —- 5 dB
Hum & noise: < -80dB A weighted, full band-width 1 channel and MAIN @ 0dB, other channels @ idle
Crosstalk: < -80dB A weighted, full band-width 1 channel and MAIN @ 0dB, other channels @ idle
EQ
Mono & mono/stereo channels: +/-15 dB @12 kHz +/-15 dB @ 100Hz~8kHz +/-15 dB @ 80Hz
Stereo channels: +/-15 dB @ 12kHz +/-15 dB @ 3kHz +/-15 dB @ 500Hz +/-15 dB @ 80Hz
2-TRACK IN
Connector: 2 x RCA unbalanced
Impedance: 10 kΩ
Frequency response: 20~20kHz +/-1dB
Distortion (THD + N): <0,03% @ +0dB, 22~22 kHz, A weighted
Gain: OFF~+15dB
STEREO RETURN
Connector: 4 x 6,35mm(1/4”) balanced
Impedance: 10 kΩ
Frequency response: 20~20kHz +/-1dB
Distortion (THD + N): <0,03% @ +0dB, 22~22 kHz, A weighted
Gain: OFF~+15dB
DSP
A/D D/A converters: 24 bit
Number of effects: 100
CONTROLS: Preset rotative encoder – DFX MUTE footswitch pedal – DFX MUTE switch – 2-digit display
MAIN MIX section
MAIN MIX outputs: 2 x XLR e 2 x jack 6,35mm (1/4”) balanced
MAIN MIX max level: +22 dBu XLR balanced (+16 dBu unbalanced)
MAIN MIX impedance: 120 Ω
GR1-2 GR3-4 outputs: Jack 6,35mm (1/4”) balanced
GR1-2, GR3-4 max levels: +22 dBu 6,35mm (1/4”) balanced (+16 dBu unbalanced)
GR1-2 GR3-4 impedance: 120 Ω
Prese Headphones 1-2: 2 x jack 6,35mm (1/4”) stereo unbalanced
Headphones impedances: 30Ω
Control room outputs: 2 x jack 6,35mm (1/4”) balanced
Control room impedance: 120 Ω
2-TRACK OUT: Outputs 2 x RCA unbalanced
2-TRACK impedance: 1 kΩ
