IDI A
Active stand alone direct injection box (DI), phantom power and battery, ground-lift switch, Transformer Balanced output
Technical Specifications

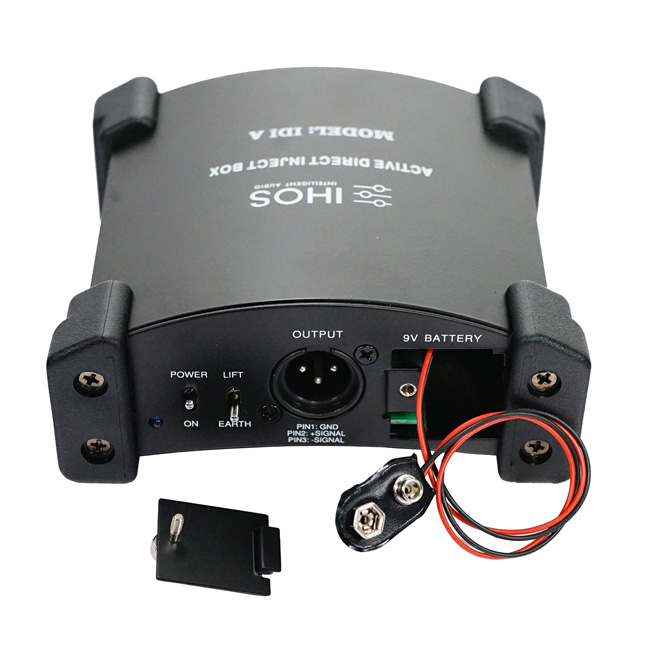

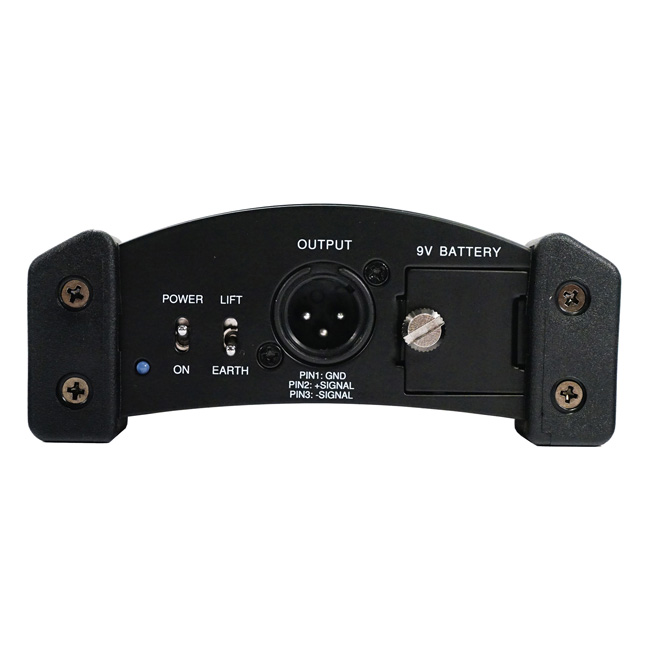

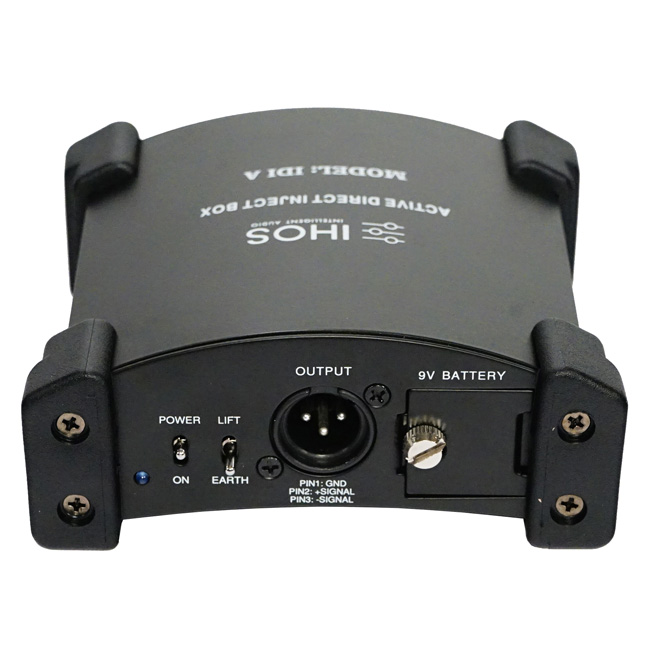

XLR mail output.

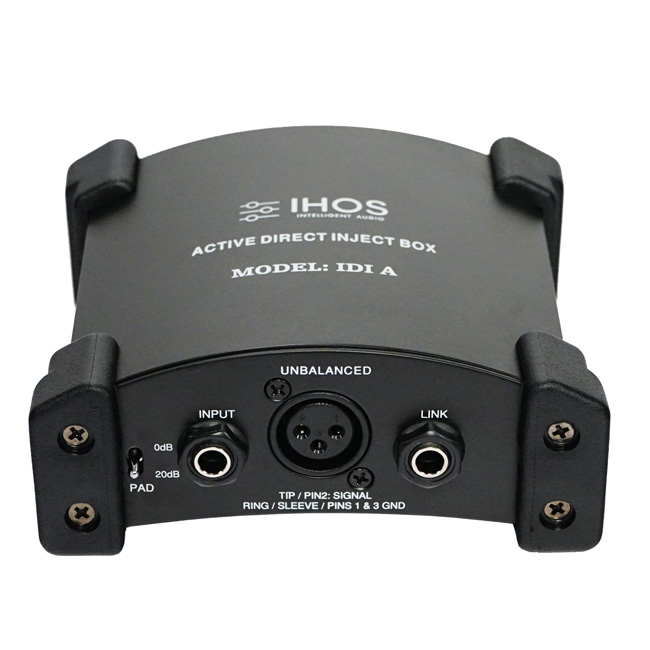

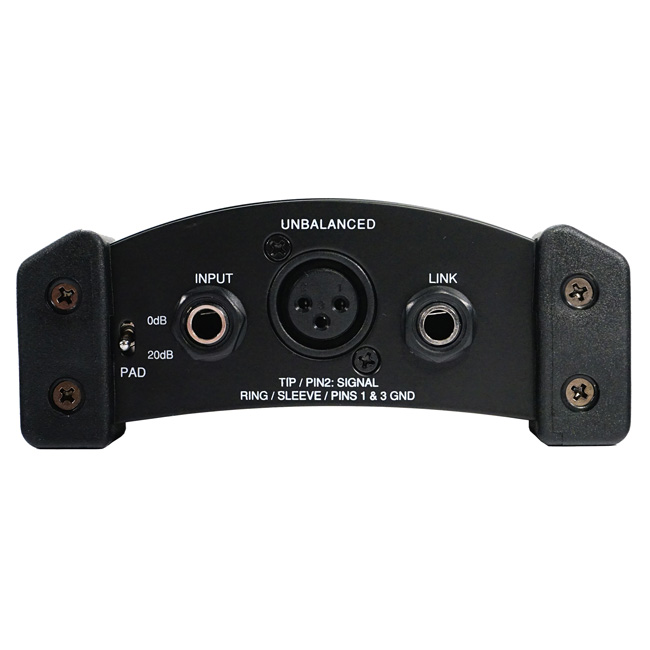

3x 6.3mm 2 pole jack input.
2x 6.3mm 2 pole jack Link.
Ground lift switch.
Frequency response: 0 ~ 2.8 dB (20 Hz to 20 kHz).
Max input level: -60 dB (ATTN) – 100V max. input speaker, -40 dB (ATTN) – 10 V max. input Line, -20 dB (ATTN) – 1 V max. input Instrument.
Distortion: 0,003% (0 dBu – 1 kHz).
Insertion Loss: -0.5 dB in to 600 ohms load,
