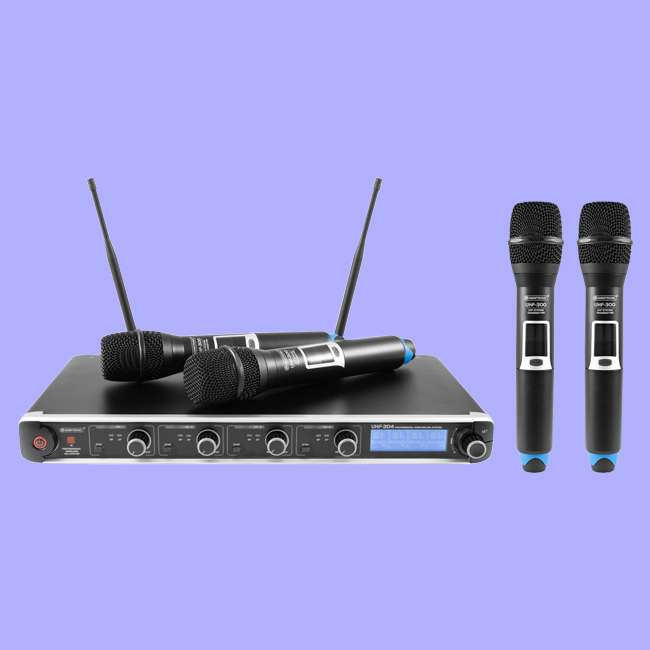

OMNITRONIC UHF-304 4-Channel Wireless Mic System 823-832/863-865MHz
1306330
4-channel UHF PLL microphone system
• 4-channel multifrequency receiver unit and 2 hand-held microphones with UHF PLL technology
• 93 preset channels in 10 channel groups
• Easy and error-free synchronization between receiver and transmitters via infrared signal
• LCDs for group, frequency and channel
• LEDs for carrier and audio signal
• 4 separate channels with volume controls

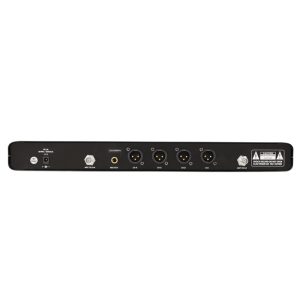

• Balanced XLR output per channel
• Unbalanced 6.3 mm jack for mixed signal output
• Jack cable included
• Removable antennas (BNC connection)
• Incl. mounting brackets for 483 mm rack installation
• 4 dynamic microphones with cardioid polar pattern and LCD for battery capacity and frequency
• Matching pocket transmitter can be ordered separately
• License-free and approved in large parts of the EU (please check on a country-by-country basis)

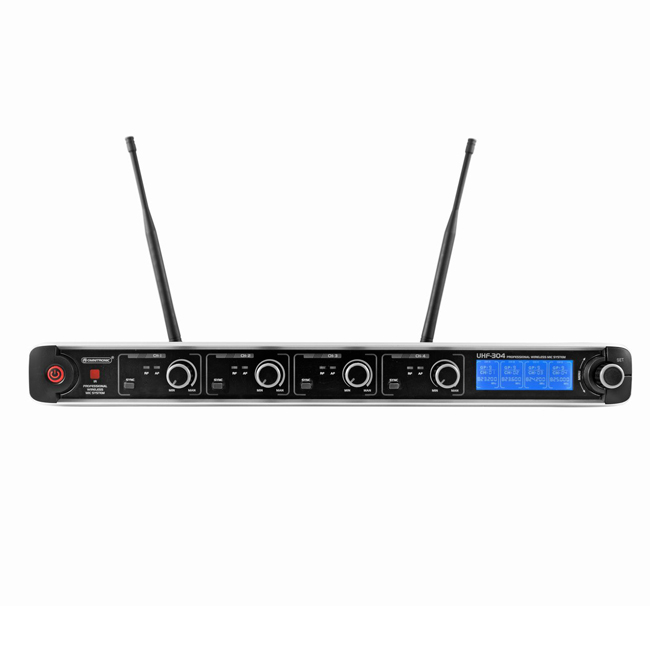

Receiver
• Housing design: (19”) 48.3 cm rack installation possible 1 U

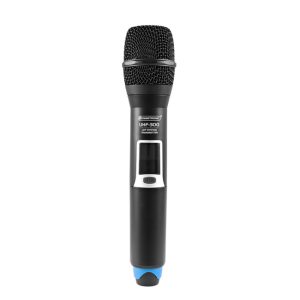

Microphone
• Polar pattern: Cardioid
• Battery: 2 x Mignon (AA) (not included)
|
Type: |
Wireless set |
|
Frequency band: |
UHF 823 – 832 MHz; UHF 863 – 865 MHz |
|
Frequency range: |
50 – 18,000 Hz |
|
S/N ratio: |
>80 dB |
|
Number of channels: |
4 |
|
Range: |
60 m |
|
Weight: |
3,00 kg |
|
Receiver |
|
|
Power supply: |
100-240 V AC, 50/60 Hz |
|
Power consumption: |
6 W |
|
Power connection: |
Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided) |
|
Material: |
Metal |
|
Housing design: |
(19”) 48.3 cm rack installation possible 1 U |
|
Width: |
41 cm |
|
Height: |
4,7 cm |
|
Depth: |
23,5 cm |
|
Microphone |
|
|
Power supply: |
3 V DC |
|
Power connection: |
Battery/battery pack |
|
Polar pattern: |
Cardioid |
|
Battery: |
2 x Mignon (AA) (not included) |
|
Capsule type: |
Dynamic |
|
Material: |
Plastic |
|
Length: |
25 cm |
|
Diameter: |
5,1 cm |
|
Weight: |
0,23 kg |
|
System: |
Non-diversity, 4 channels |
|
Receiving frequencies: |
93 |
|
RF power output: |
10 mW |
|
Modulation method: |
FM |
|
Frequency stability: |
10 ppm |
|
Sensitivity: |
6 dBµV |
|
T.H.D.: |
|
|
Audio outputs: |
|
|
Mic: |
4 x XLR, bal. |
|
Mix: |
6.3 mm jack, unbal. |
