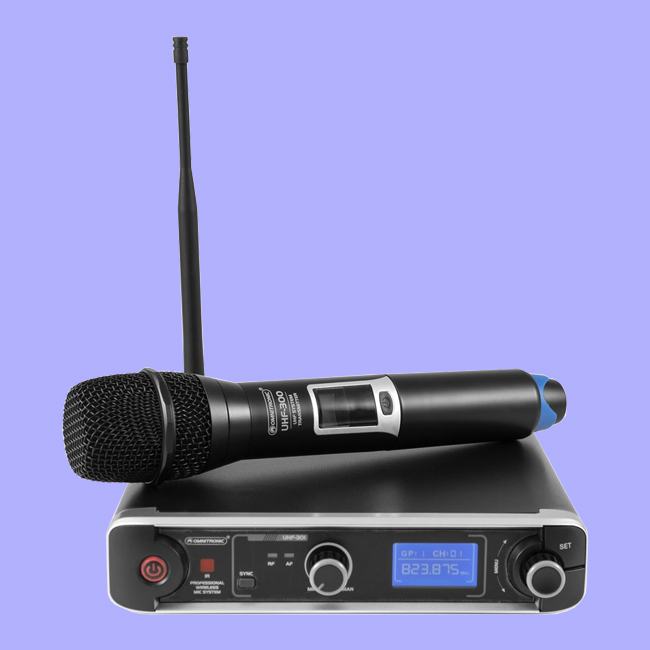

OMNITRONIC UHF-301 1-Channel Wireless Mic System 823-832/863-865MHz
1-channel UHF PLL microphone system
• 1-channel multifrequency receiver unit and hand-held microphone with UHF PLL technology
• 93 preset channels in 10 channel groups
• Easy and error-free synchronization between receiver and transmitter via infrared signal
• LCDs for group, frequency and channel
• LEDs for carrier and audio signal
• Volume control
• Balanced XLR output
• Unbalanced 6.3 mm jack
• Jack cable included
• Removable antenna (BNC connection)
• Incl. mounting brackets for 483 mm rack installation
• 1 dynamic microphone with cardioid polar pattern and LCD for battery capacity and frequency
• Matching pocket transmitter can be ordered separately
• License-free and approved in large parts of the EU (please check on a country-by-country basis)

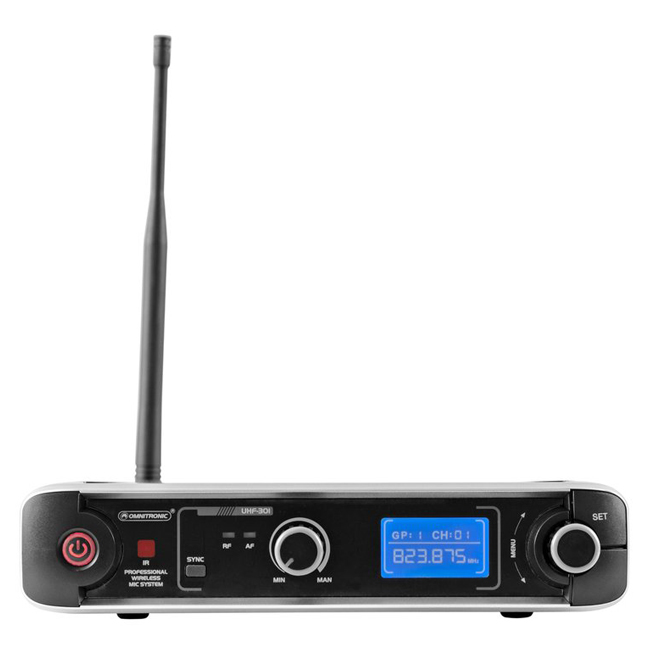

Receiver
• Housing design: (19”) 48.3 cm rack installation possible 1 U
Microphone
• Polar pattern: Cardioid
|
Type: |
Wireless set |
|
Weight: |
1.51 kg |
|
Receiver |
|
|
Power supply: |
100-240 V AC, 50/60 Hz |
|
Power consumption: |
4 W |
|
Power connection: |
Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided) |
|
Number of channels: |
1 |
|
S/N ratio: |
>80 dB |
|

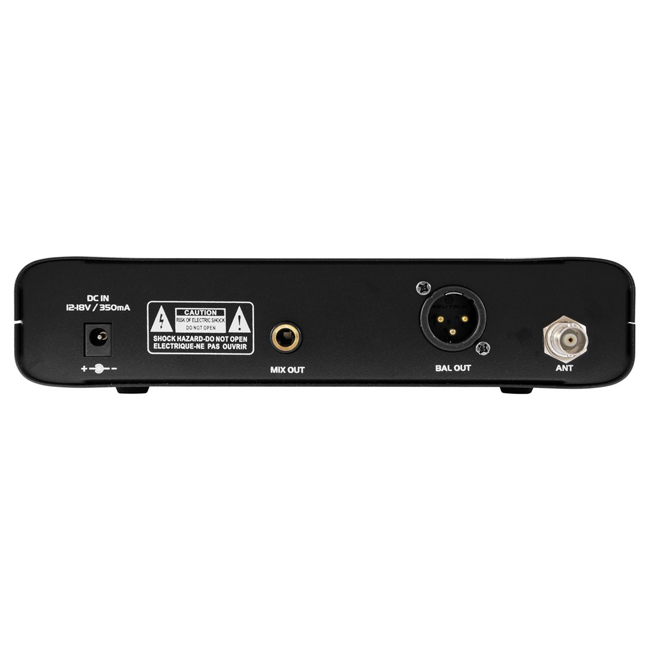

Connections: |
Output: 1 x Microphone via 6.3 mm plug (unbal.) |
|
Output: 1 x Microphone via 3-pin XLR |
|
|
Frequency selection: |
93 Switchable frequencys |
|
Modulation: |
FM |
|
RF power output: |
10 mW |
|
Material: |
Metal |
|
Housing design: |
(19”) 48.3 cm rack installation possible 1 U |
|
Width: |
21 cm |
|
Height: |
4.7 cm |
|
Depth: |
23.5 cm |
|
Microphone |
|
|
Type: |
Transmitter |
|
Power supply: |
3 V DC |
|
Power connection: |
Battery/battery pack |
|
Capsule type: |
Dynamic |
|
Polar pattern: |
Cardioid |
|
Battery: |
2 x Mignon (AA) (not included) |
|
Frequency range: |
50 – 18.000 Hz |
|
THD: |
|
|
Frequency band: |
UHF 863 – 865 MHz; UHF 823 – 832 MHz |
|
Frequency stability: |
± 0.001 % |
|
Range: |
60 m |
|
switch: |
on/off switch |
|
Material: |
Plastic |
|
Length: |
25 cm |
|
Diameter: |
5.2 cm |
|
Weight: |
0.23 kg |
