Name: Wireless mikrofon UHF-104 OMNITRONIC - Set Up S Tuzla
Availability: OutOfStock

Wireless mikrofon UHF-104 OMNITRONIC

0,00 KM

Nema na stanju

Profesionalna usluga i sigurna kupovina:

Sigurna kupovina:

OMNITRONIC UHF-104 Wireless Mic System 823.5/825.3/863.1/864.1MHz

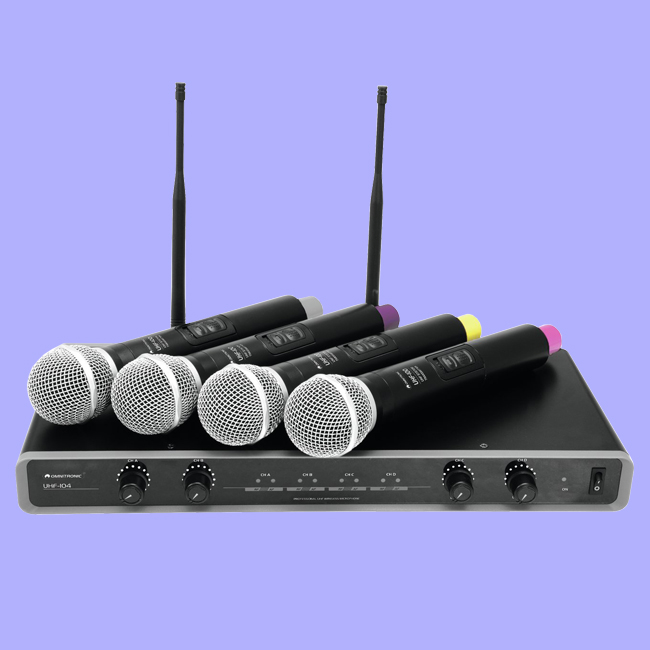

Complete 4-channel UHF PLL microphone system
• 4-channel receiver unit and 4 hand-held microphones with UHF PLL technology
• Available in the license-free frequency ranges 823-832 MHz and 863-865 MHz
• Parallel operation of up to 8 transmission channels is possible without any interference
• 4 separate channels with volume controls and LEDs for power supply, carrier signal and audio signal

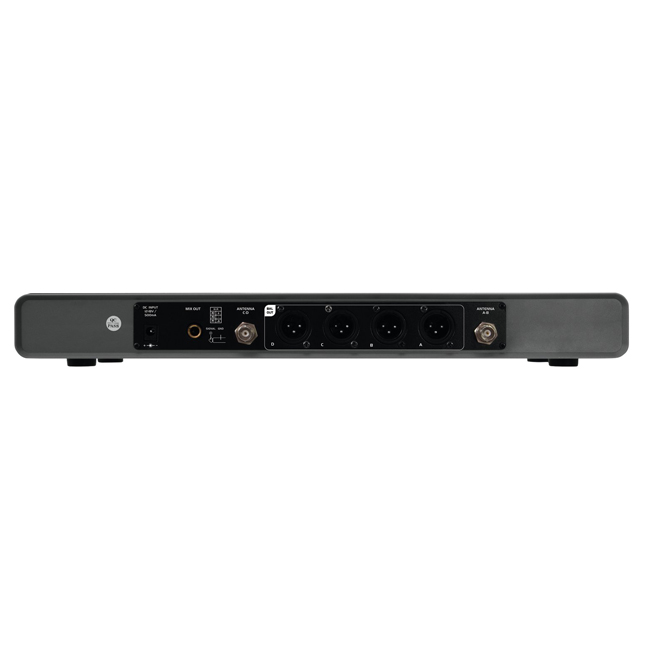

• Balanced XLR output per channel
• 6.3 mm jack for mixed signal output
• Jack cable included
• Microphones with color indication
• Matching pocket transmitters can be ordered separately
• Receiver unit in a rugged metal housing
• Removable antennas (BNC connection)
• 483 mm rack installation possible with optional mounting brackets
• License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)

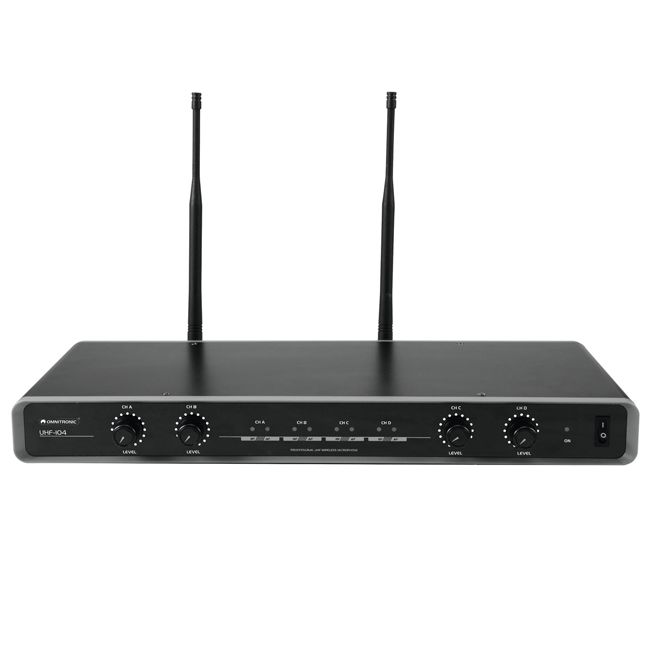

Receiver
• Housing design: (19”) 48.3 cm rack installation possible 1 U
Microphone
• Polar pattern: Cardioid
• Battery: 2 x Mignon (AA) (not included)

Type:	Wireless set
Frequency range:	40 – 18000 Hz
S/N ratio:	>105 dB
Number of channels:	4
Range:	60 m with line of sight
Carrier frequency:	823,500 MHz; 825,300 MHz; 863,100 MHz; 864,100 MHz
Weight:	2,55 kg
Receiver
Power supply:	100-240 V AC, 50/60 Hz 12 V DC 1000 mA
Power consumption:	6 W
Power connection:	Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided)
Material:	Metal
Housing design:	(19”) 48.3 cm rack installation possible 1 U
Width:	41 cm
Height:	5,1 cm
Depth:	22,5 cm
Weight:	1,4 kg

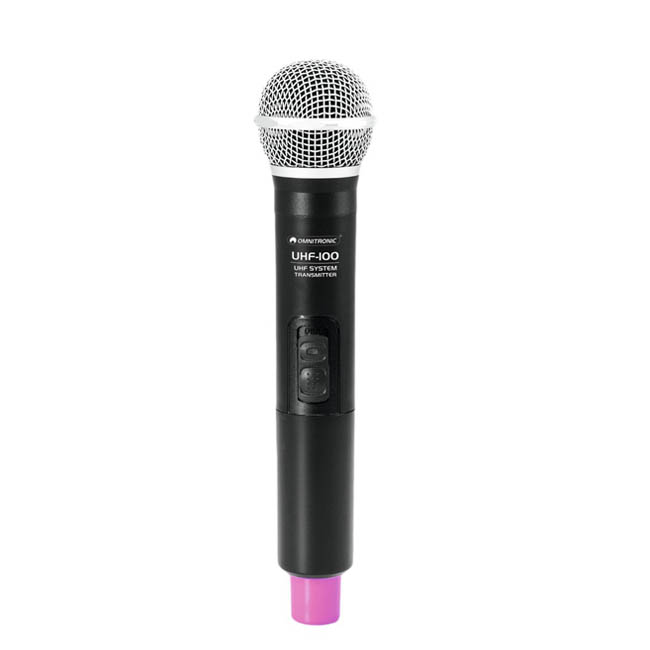

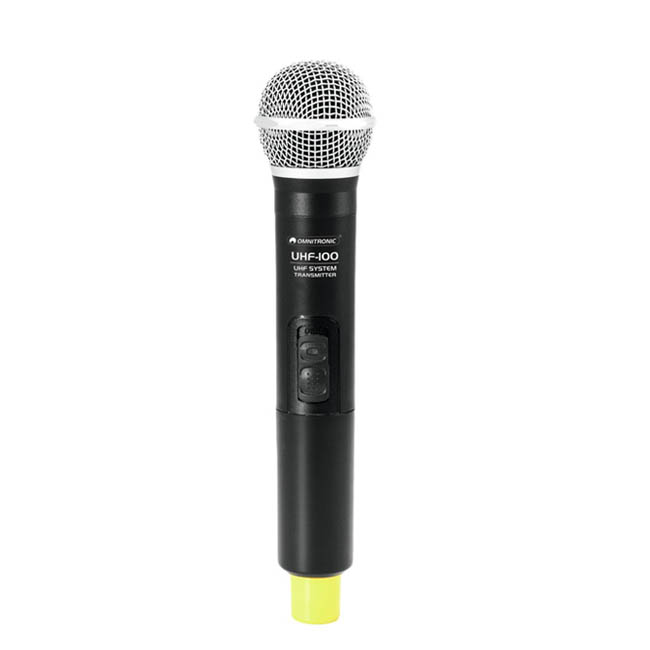

Microphone
Power supply:	3 V DC
Power connection:	Battery/battery pack
Polar pattern:	Cardioid
Battery:	2 x Mignon (AA) (not included)
Capsule type:	Dynamic
Material:	Plastic
Length:	26 cm
Diameter:	5,4 cm
Weight:	0,23 kg
System:	Non-diversity, 4 channels
Carrier frequency:	823.500 MHz, 825.300 MHz, 863.100 MHz, 864.100 MHz
RF power output:	5 mW
Modulation method:	F3F
Selectivity:	>85 dB
T.H.D.:
Audio outputs:	400 mV, 2.2 kohms (XLR, bal.)
	200 mV, 2.2 kohms (6.3 mm jack, unbal.)
