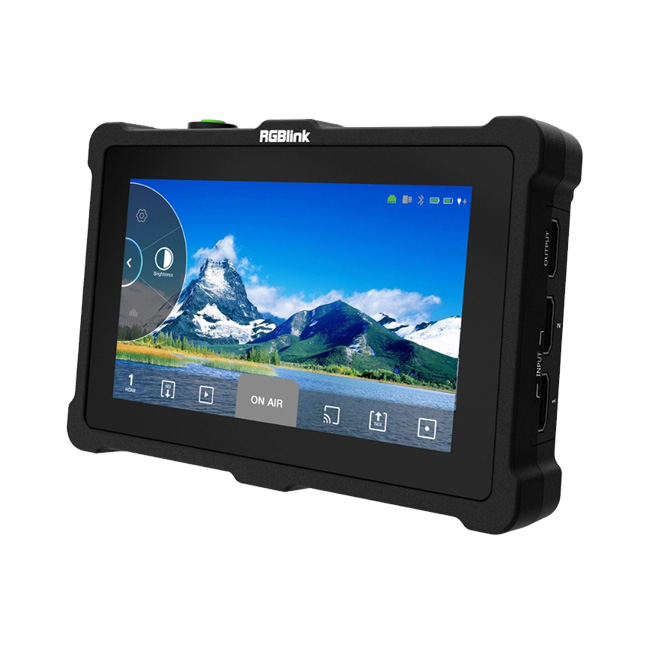

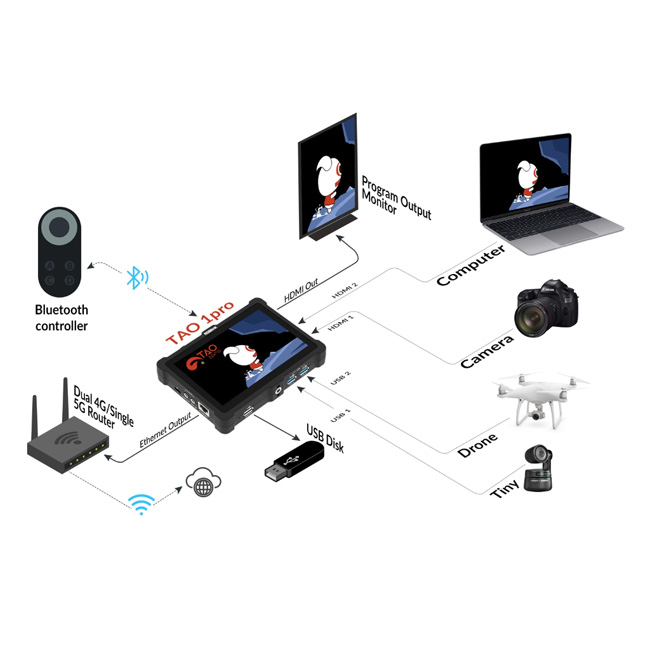

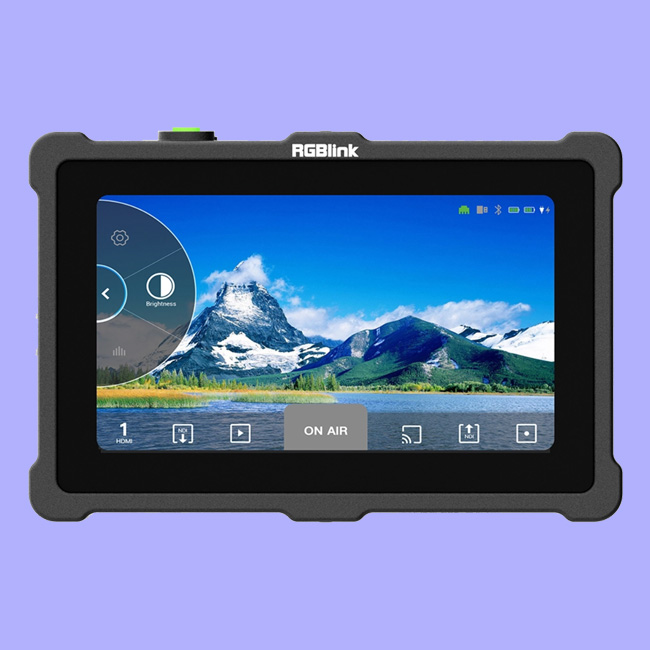

TAO 1pro is a Broadcasting streaming decoder with a 5.5 inch FHD preview display,but also a 4 channels seamless video switcher for 2 USB 3.0 and 2 HDMI 1.3 inputs, and supports streaming directly by ethernet output which is ready to connect to external cloud based router and streaming from Anywhere to Everywhere.
TAO 1pro is compatible with standard USB 2.0 and USB 3.0 cameras by UVC protocol, and brings itself as a much affordable and user friendly streaming tools for anybody, the talents who is willing to be Anchor Online.

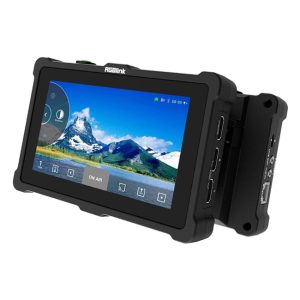

TAO 1pro is also with touch panel for finger configuration, and with optional 2 chargable battery extending its capacity for outdoor application.
• 5.5-inch touchscreen operation
• Network HD streaming
• Seamless switcher
• 2*UVC inputs,2*HDMI 1.3 input and 1* HDMI 2.0 output
• NDI 5.0 encoder
• Recording via USB 2.0 port,mobile hard disk stores up to 2T
• Multistream up to 4 Live Streaming platforms simultaneously

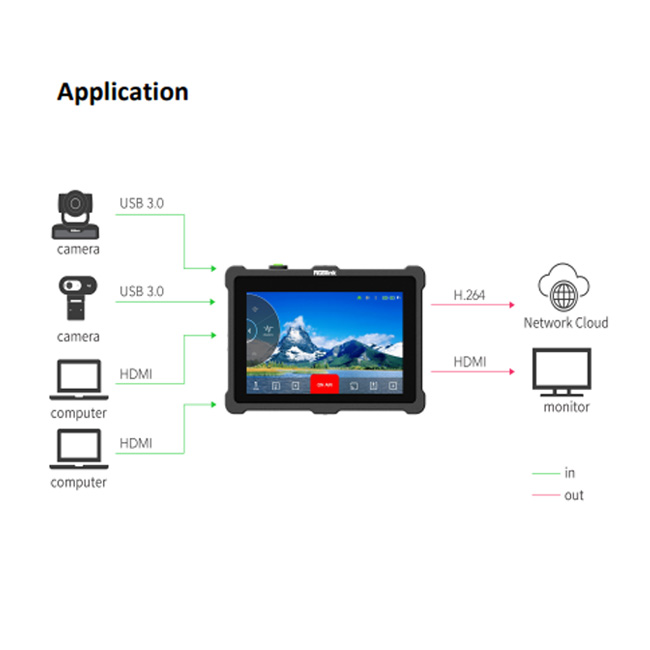

Connectors
Input
HDMI 1.3: 2×HDMI-A
USB 3.0: 2×USB TypeA
Output
HDMI 2.0: 1×HDMI-A
Record
USB 2.0 1×USB TypeA
Audio
In: 1×3.5mm Audio Jack
Out: 1×3.5mm Audio Jack
Communication/Stream
LAN: 1×RJ45
Power: 1×USB-C
Performance
Input Resolutions
HDMI
SMPTE: 720p@50/60 | 1080p@23/24/60
VESA:1024×768@60 | 1280×720@60 | 1280×800@60 | 1280×1024@60 | 1360×768@60 |1600×1200@60 | 1680×1050@60 | 1920×1080@60
Output Resolutions
HDMI
SMPTE: 720p@50/60 | 1080p@24/25/50/60 | 2160p@60
VESA: 1024×768@60 | 1280×720@50/60 | 1280×800@60 | 1280×1024@60 | 1360×768@60 |
1920×1080@50/60 | 3840×2160@60
Supported Standard
HDMI: 1.3(Input) | 2.0(Output)
USB: 3.0
Screen Feature
Screen Dimension: 5.5 ’’TFT
Resolution: 1080×1920 pixels
Dot Pitch: 0.063(H)×0.021(W)(mm)
Aspect Ratio: 16:9
Brightness: 450cd/m²
Contrast: 1000:1
Backlight: LED
View Angle: 80°/80°(L/R)80°/80°(U/D)
Power
Input Voltage: 9V/2A
Max Power: 18W
Environment
Temperature: 0℃~55℃
Humidity: 5%~85%
Physical
Weight
Net: 350g(without battery);882g(with battery)
Package: 770g

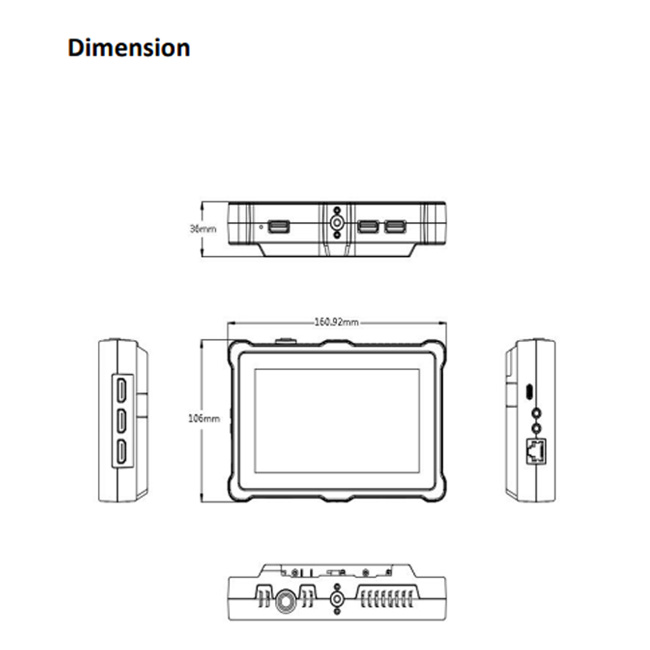

Dimension
Net: 161mm×106mm×36mm
Package: 255mm×145mm×85mm
