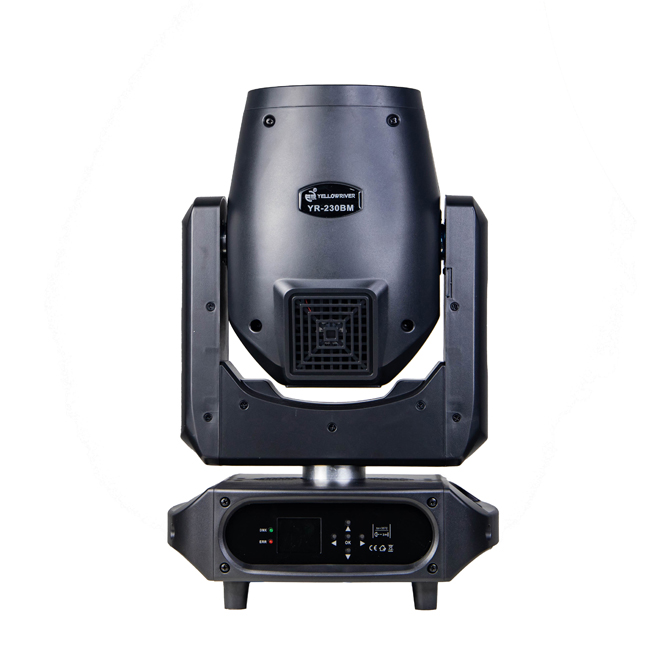

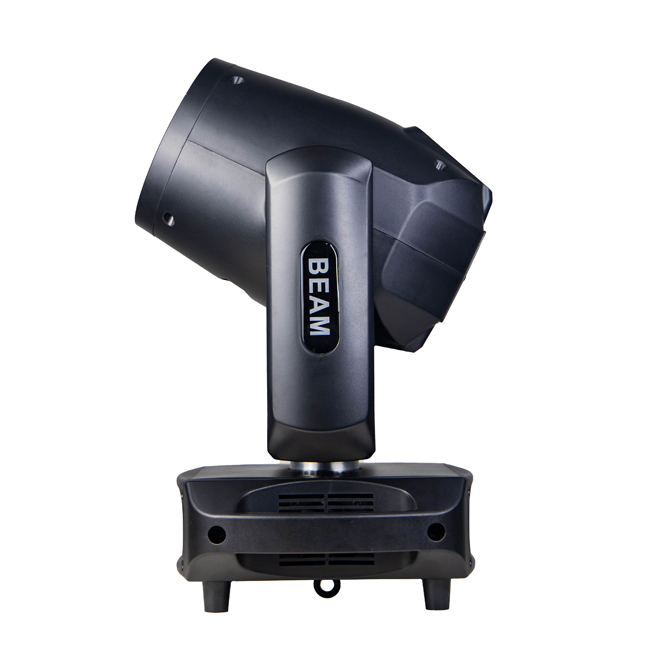

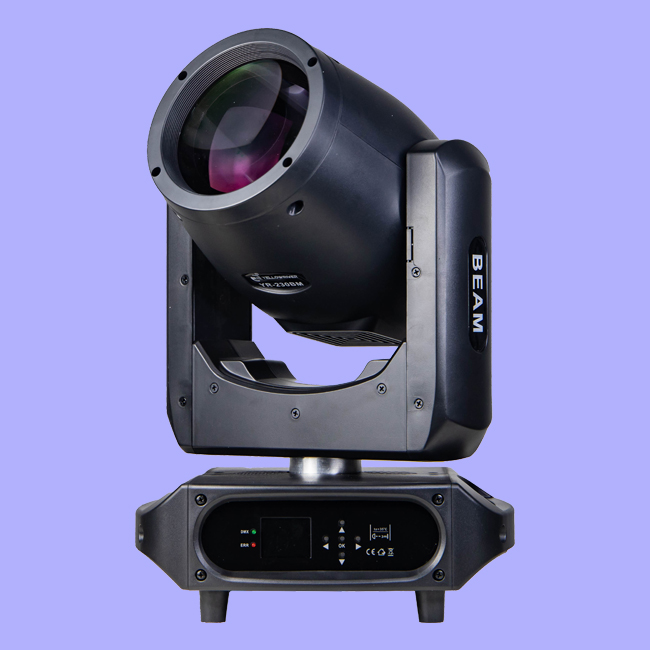

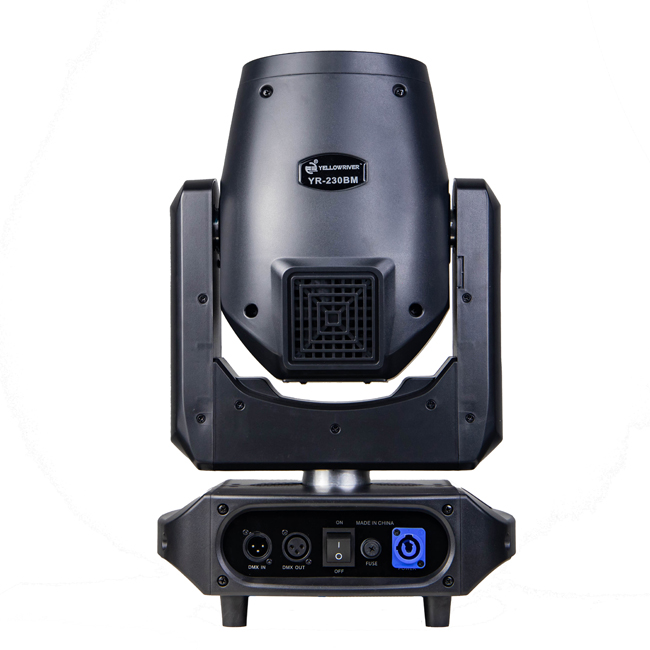

High quality 7R 230W light source. This item is considered to be used in touring concert, big events, pageants and so on. High level qualification ensures perfect cooling system, which ensure longer life span of the bulb.
Moreover ,this light has RDM function which is convenient to set address code through big and professtional controller.
– Improved cooling system
– 1 color wheel: 13 colors + white
– 1 three-layer 8+16+24 prism, 1 pc independent atomizing glass and 1pc 6 colors rainbow glass
– High-speed silent fan
– Electronic focus
– Pan 540° , tilt:270°
– LCD display , Beam Angel: 1.3 degrees
Voltage: AC100V-240V（50/60HZ）
Power consumption: 400W
Lamp: 7R 230W
Color temperature: 7000K
Control Mode: DMX512 (16CH/20CH), Master/slave, Auto, RDM
Color wheel: 1 color wheel: 13 colors + white
Color wheel：1pc 6 colors rainbow glass
Gobo wheel: 1 metal gobo wheel: 14 gobos + white, with shake & flow effect
Prism Wheel: 1 three-layer 8+16+24 prism， 1pc 6 colors rainbow glass
Atomization: 1 independent atomizing glass.
Dimmer: 0-100%Linear Dimming
Beam angle: 1.3°
Featured Effect:
1 color wheel: 13 colors + white
1 metal gobo wheel: 14 gobos + white, with shake & flow effect
1 independent atomizing glass 1 three-layer 8+16+24 prism
LCD Screen Display: LCD screen, the screen can be reversed, Chinese & English switchable, it can display working time for the bright led, with fault detection and control function, and factory settings can be restored.
Satety Protection: Automatically cut off the power when the machine overheats or system fails
Machine W. Size: 28.4*23.3*44.1cm
Net Weight : 10.8KG
DESCRIPTION OF 20 DMX CHANNELS (If you use 16CH ,you can check CH1 -CH16)
1 -> Color wheel
2 -> Stroboscopic
3 -> Dimmer
4 -> Fixed gobo wheel
5 -> Prism 1
6 -> Rotation
7 -> Macro
8 -> Frost/ 7-colors glass
9 -> Focus
10 -> Pan scan
11 -> Pan fine
12 -> Tilt scan
13 -> Tilt fine
14 -> Speed of Pan scan and Tilt scan
15 -> Reserve
16 -> Bulb
17 -> Null
18 -> Speed of color whee
19 -> Speed of dimmer, prism and frost
20 -> Speed of gobo wheel
