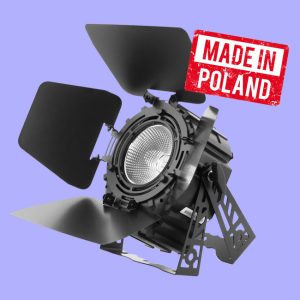

LED PAR 64 COB 200W 1xWhite 6500K (30000lm)
P7100428
|
——– TECHNICAL DATA ——– |
|
|
Power supply voltage |
100 – 245V |
|
Voltage frequency |
50/60Hz |
|
Diode type |
COB |
|
Display |
Color LCD |
|
Number of diodes |
1 |
|
——– UTILITY DATA ——– |
|
|
Beam angle (min) |
37° |
|
Beam angle (max) |
37° |
|
Dimming |
Linear: 0 – 100% |
|
Flash frequency (min) |
1Hz |
|
Flash frequency (max) |
20Hz |
|
Number of DMX channels |
Check User manual |
|
DMX standard |
DMX 512 |
|
Control interface |
4 buttons |
|
Operating modes |
DMX512, Auto, Sound-controlled, Master / Slave |
|
Features |
16-bit dimming, various dimming curves, bulb simulation, DMX Signal regeneration, Electronic protection against overheating |
|

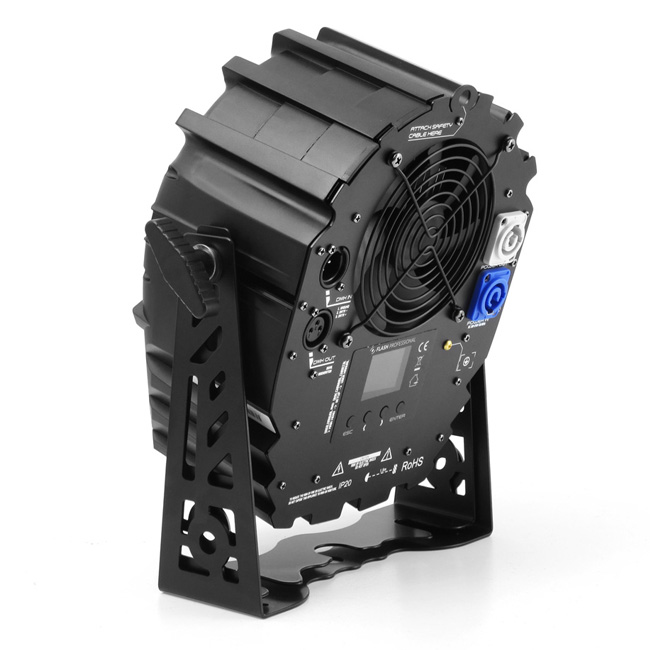

——– INTERFACES ——– |
|
|
AC IN |
powerCON |
|
AC OUT |
powerCON |
|
DMX IN |
XLR – 3 pin |
|
DMX OUT |
XLR – 3 pin |
|
—– PHYSICAL CHARACTERISTICS —– |
|
|
IP Rating |
IP20 |
|
Housing made |
ABS |
|
Cooling |
Active |
|
Height [cm] |
30 |
