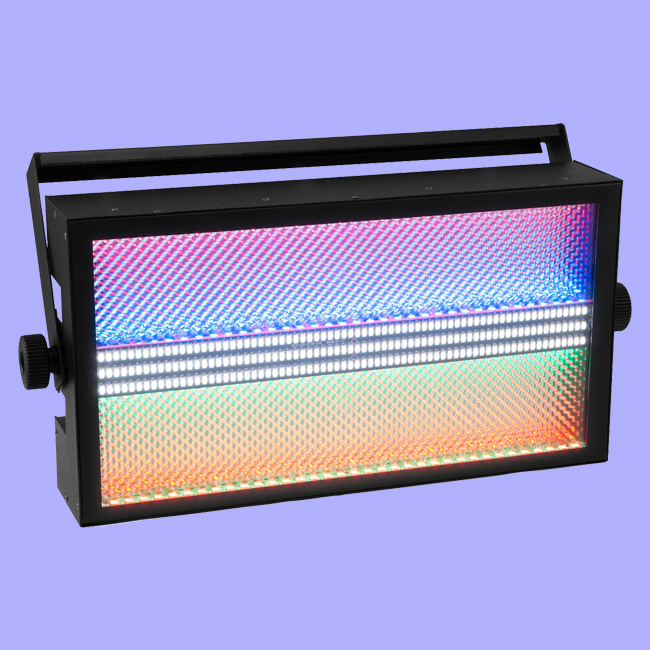

3in1 LED effect light with RGB color mixing

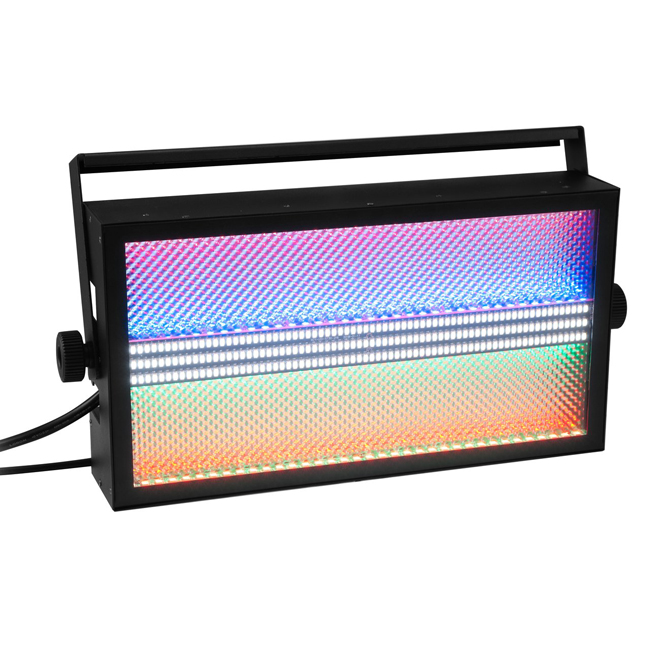

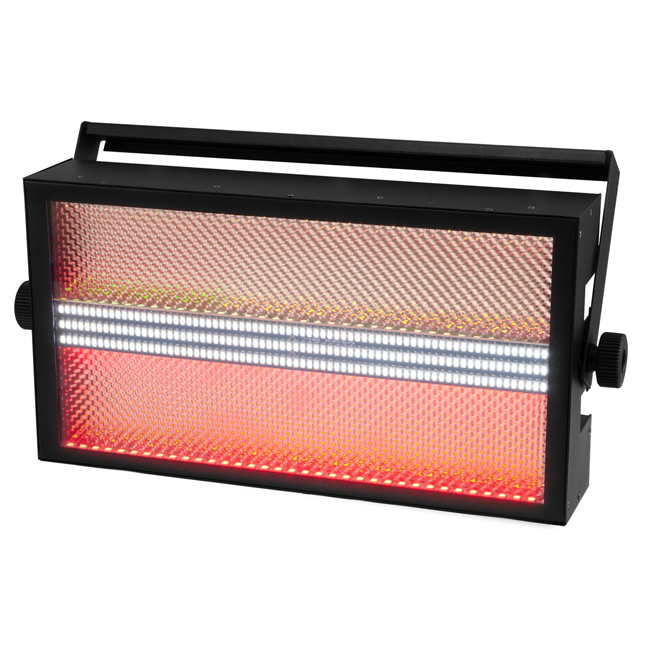

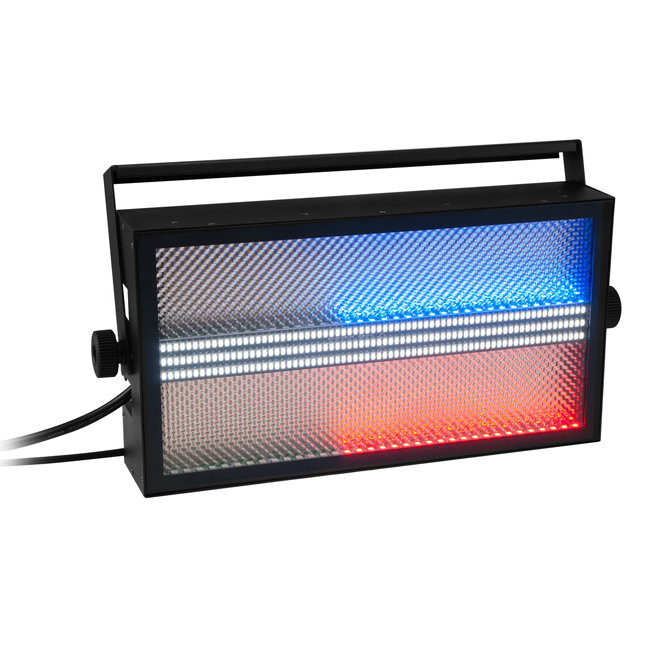

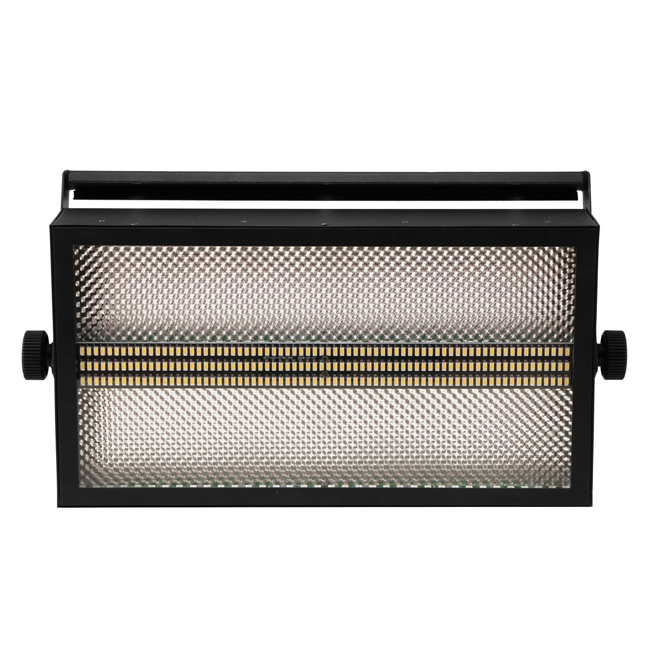

EUROLITE LED Super Strobe ABL
3in1 LED effect light with RGB color mixing
• 3 effects in one device: strobe, blinder and ambient light
• 216 cold white LEDs (SMD 5730) for fast, dynamic strobe effects

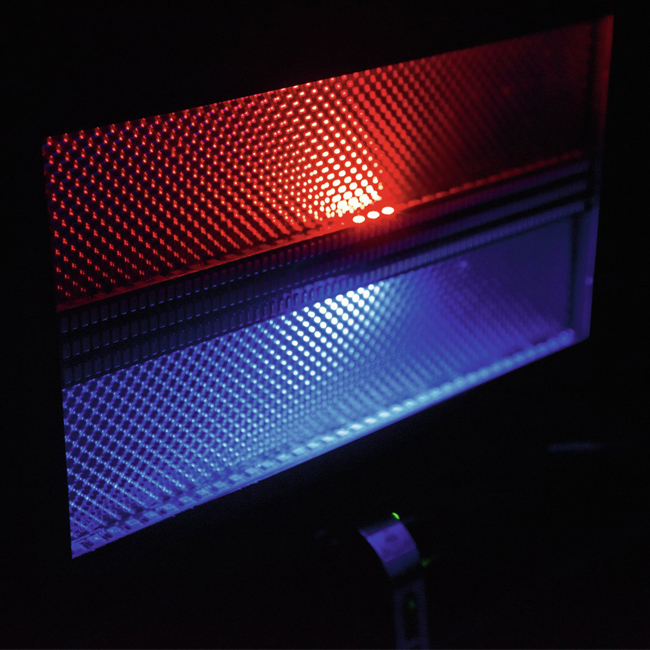

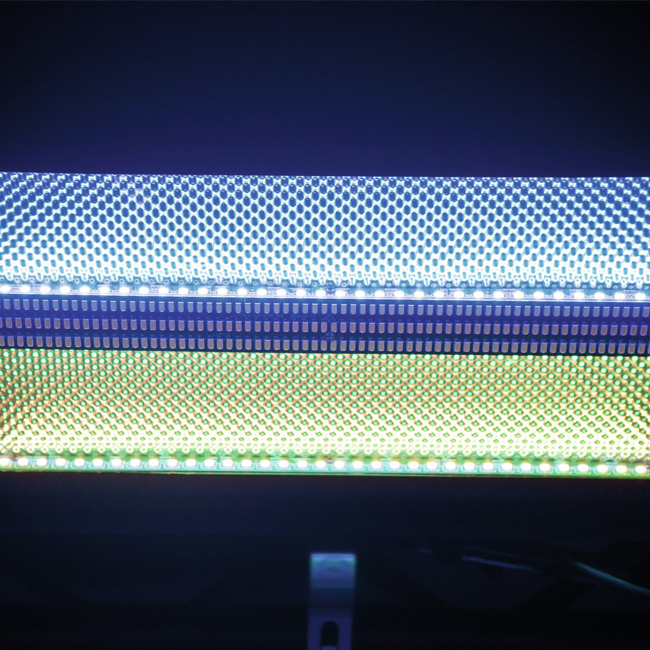

• 144 additional RGB LEDs (SMD 5050) create a pleasant mood light
• Individual control of RGB and cold white LEDs in DMX mode
• RGB LEDs controllable in 1 or 48 segments depending on the DMX mode
• Auto, music, master/slave and DMX mode
• 17 built-in auto and music chase programs
• Flash rate 20 Hz
• Stepless RGB color mixing
• Dimmer
• Addressing and setting via control panel with 4-digit LED display
• Sound-control via built-in microphone with adjustable microphone sensitivity
• 7, 13, 22 or 148 DMX channels selectable
• Flat metal housing with integrated wall holders
• Swivel mounting bracket
• P-Con terminals for power linking up to 8 units
• LED: 216 x SMD 5730 0,5 W CW
• LED: 144 x SMD 5050 3in1 TCL RGB (homogenous color mix)
• Control: Sound to light via Microphone
• Projection: flicker-free
• Effect: Strobe effect
|
Power supply: |
100-240 V AC, 50/60 Hz |
|
Power consumption: |
130 W |
|
LED: |
216 x SMD 5730 0,5 W CW |
|
144 x SMD 5050 3in1 TCL RGB (homogenous color mix) |
|
|
DMX channels: |
7; 13; 22; 148 |
|

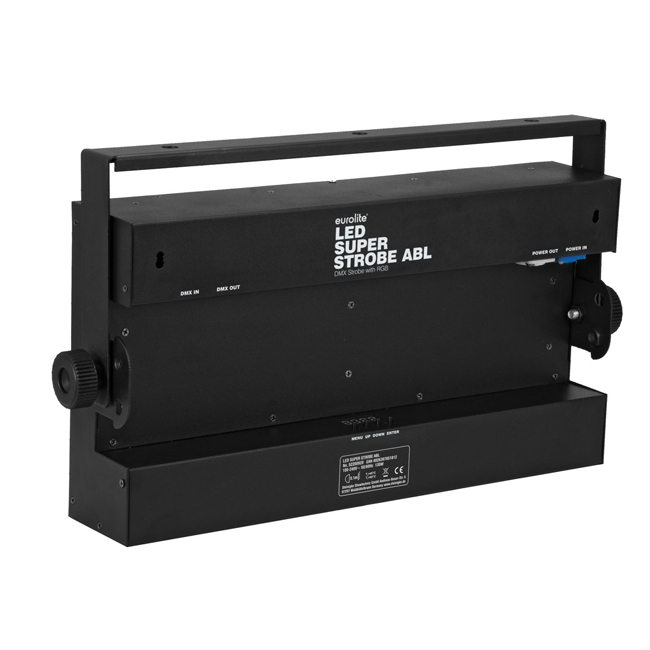

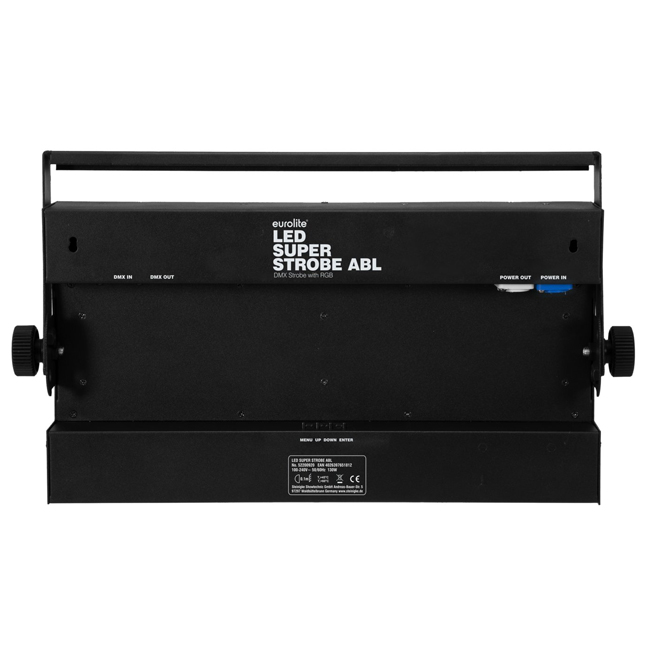

DMX input: |
1 x 3-pin XLR (M) mounting version |
|
DMX output: |
1 x 3-pin XLR (F) mounting version |
|
Control: |
Sound to light via Microphone |
|
Beam angle (1/2 peak): |
120° |
|
Width: |
45,5 cm |
|
Height: |
25,5 cm |
|
Depth: |
8,5 cm |
|
Weight: |
3,94 kg |
|
Legal specifications |
|
|
Ecodesign regulation: |
Yes |
|
Special product: |
Not designed for household room illumination |
|
Purpose: |
Show effect lighting |
