DMX wireless receiver with technology by Wireless Solution
FUTURELIGHT WDR-G4 RX Wireless-DMX-Receiver
DMX wireless receiver with technology by Wireless Solution
• Wireless transmission of DMX and RDM data
• Compatible with Wireless Solution W-DMX systems
• Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
• AFHSS technology ensures interference-free operation also alongside other WDR-G4 receivers and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
• Operating range up to 500 m (with line-of-sight)
• 1 to 512 receivers can be controlled by each transmitter
• Plug & Play: quick and easy setup with one operating button

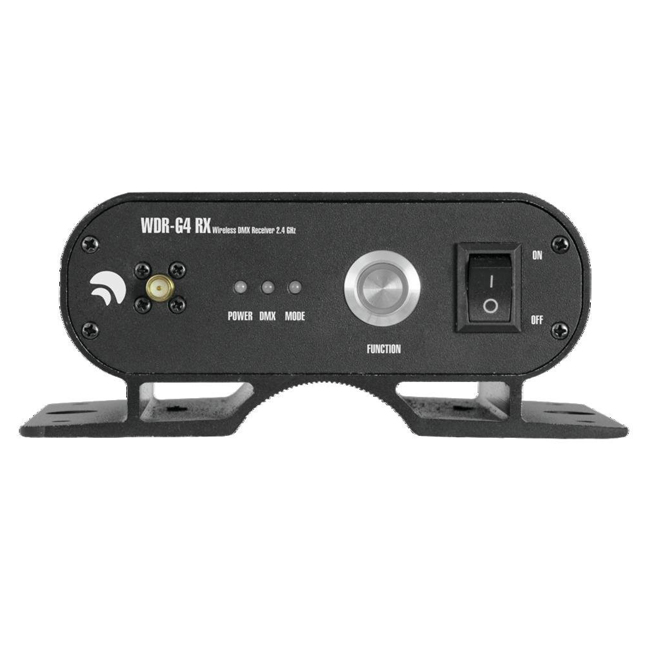

• LED indication for operation and functions

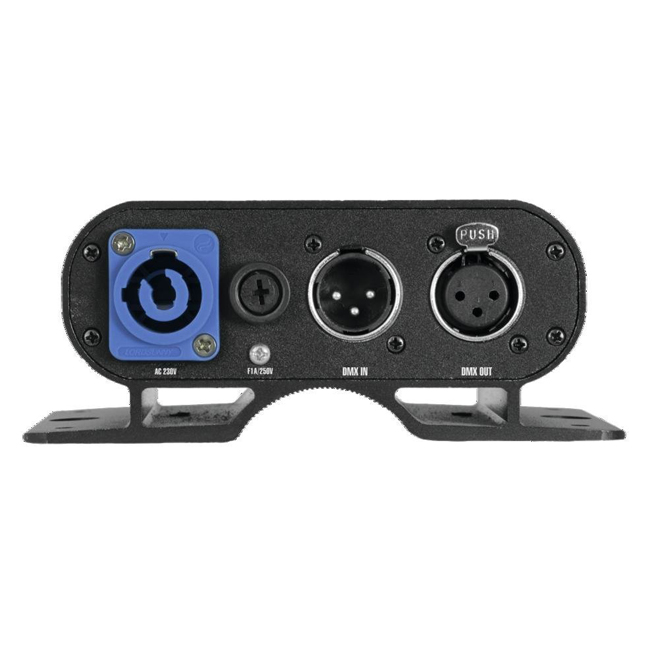

• DMX input and output, 3-pin XLR

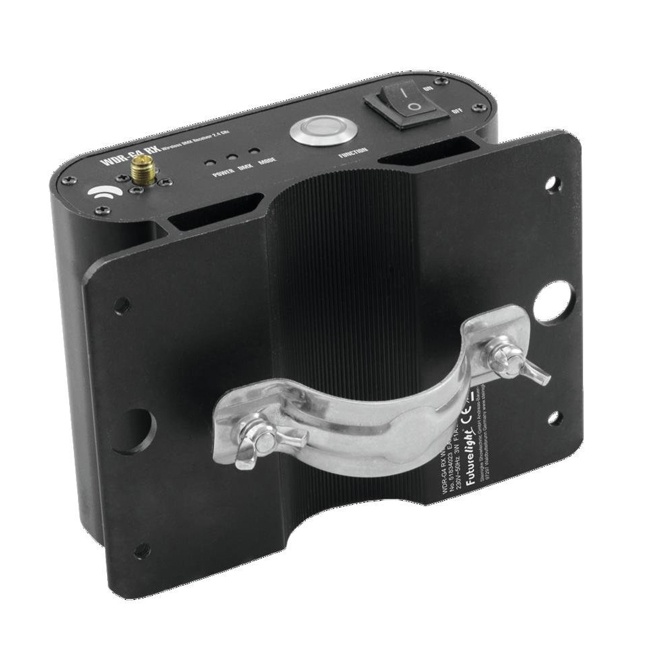

• Truss attachment option
• 2.4 GHz – license-free worldwide
• Control: RDM; W-DMX by wireless solution built-in; DMX
|
Power supply: |
230 V AC, 50 Hz |
|
Power consumption: |
3 W |
|
IP classification: |
IP20 |
|
Power connection: |

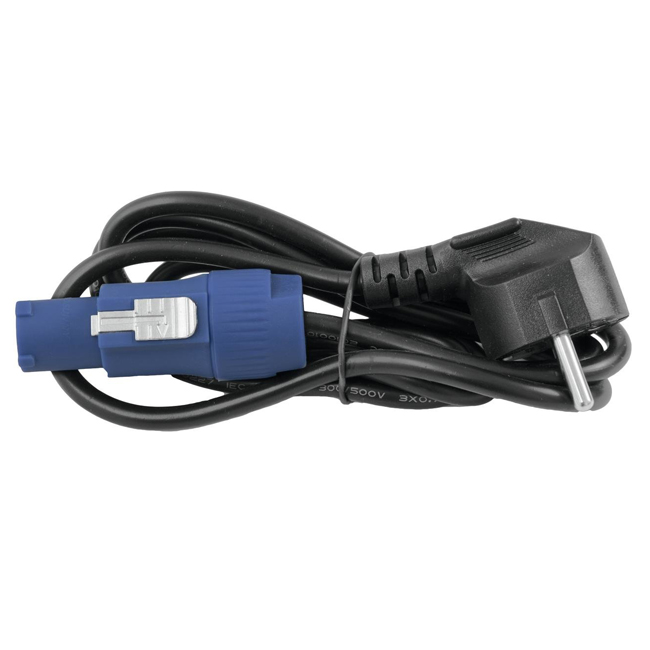

Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided) |
|
DMX channels: |
512 |
|
DMX input: |
1 x 3-pin XLR (M) mounting version |
|
DMX output: |
1 x 3-pin XLR (F) mounting version |
|
Control: |
RDM |
|
W-DMX by wireless solution built-in |
|
|
DMX |
|
|
Color: |
Black |
|
Frequency band: |
2.4 GHz |
|
Carrier frequency: |
2,4 GHz |
|
Modulation: |
AFHSS |
|
latency: |
< 5 ms |
|
Parallel mode: |
max. 6 Transmitter |
|
Range: |
500 m with line of sight |
|
Width: |
14,5 cm |
|
Height: |
5,8 cm |
|
Depth: |
10 cm |
|
Weight: |
1,00 kg |
