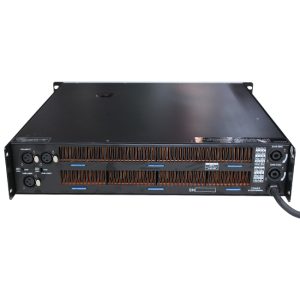

ME three channel power amplifiers adopt SMT modular design where the high quality elements and devices are selected.
The unique design dor drive circuit makes excellent the ability of timber analysis and espressing, especially that it can guarantee presenting precisely bas sin the greatly dynamic state.
The advanced circuit protection guarantees the stability of the products while protecting the sound boxes.
The unique heat dissipation design makes the thermal conversion more effecient while guaranteeing that it will ben on-stop working and non-protective even in the worst working situation.
Applied to situations like KTV, HI Room, Slow Rock Bar, etc.
Power 8 Ohm: 2 x 350W + 700W
Power 4 Ohm: 2 x 500W + 1100W
Frequency response: 20Hz – 20KHz, +0/-0.5dB
THD+N
1KHz: <0.01%; 20Hz-20KHz: <0.03%
Damping factor: >200
Signal to noise ratio: ≥80dB
Cross talk: ≥70dB
Input impedance: 0.775V (0db) 1.2V 1.6V
Cooling: Front-to-rear airflow, temperature controlled speed
Amplifier protection: Short circuit, open circuit, direct voltage, high temperature, radio-frequency, ultralow frequency
Weight (kg): 23
