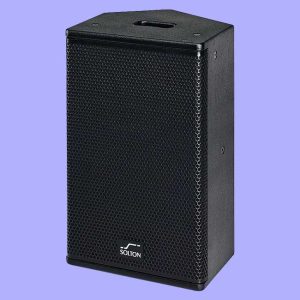

MF 300 L
The MF 300 is a high-power, passive two-way system, designed for professional portable applications.
With a 60°H x 40°V coverage pattern it combines high output capability with excellent sound performance. It features a powerful 12” low frequency drive unit, and a 1” (25mm) exit HF compression driver with a 1.35” voice coil for extended high frequency response. An advanced passive crossover, with PTC driver protection, matches the components working perfectly together.
The versatile MF 300 L suits for speech and music applications as a stand-alone fullrange loudspeaker or MF/HF speaker in sound reinforcement systems.
KEY FEATURES
● M8 inserts for flexible mounting options
● High SPL with smooth response
● Multi-angle plywood enclosure
● Constant directivity 60° x 40° horn
● Vertical and horizontal orientation
● Crossover with HF driver protection
● Main and monitor operation possible
● Handle and Pole mount flange
SPECIFICATION
Loudspeaker Type: two-way, multifunctional, passive
Frequency Range (-10dB): 50 Hz – 20 kHz
Frequency Response (+- 3dB): 55 Hz – 18 kHz
Coverage Pattern: H 60° x V 40° nominal
Power Handling: 300 W continuous, 1200 W peak
System Sensitivity (1w/1m): 99 dB
Maximum SPL (Calculated at 1m): 124 dB continuous, 130 dB peak
HF Driver: 1,35” compression driver
LF Driver: 12” woofer
Nominal Impedance: 8 ohm
Crossover: 2,7 kHz
Protection: PTC driver protection
Active Tuning / Features: n/a
Enclosure: Multi-angle, Plywood
Finish: Black textured paint
Fittings: 5x M8 inserts, 1x bar handle, pole-mount socket
Protective Grille: Black perforated steel with acoustic transparent foam backing
Connectors: 2 x NL4, Pins 1+/1-
Dimensions mm (WxHxD): 380 x 550 x 350
Weight: 16.5 kg
APPLICATION
● Bullet point Portable sound reinforcement
● Bullet point Installation
● Bullet point Live Music
● Bullet point Bars and restaurants
● Bullet point Nightclubs
● Bullet point Stage monitoring
● Bullet point Corporate AV events and conferences
