IP 8

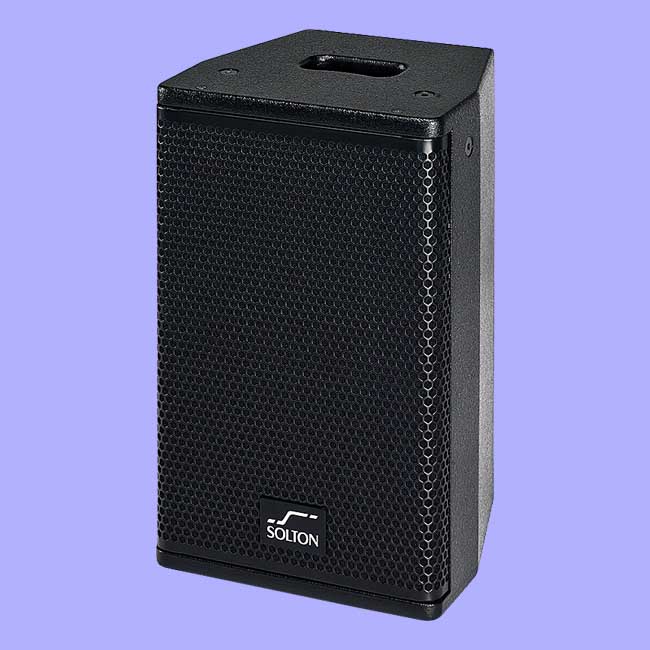

The iP 8 is a two-way high-performance, multipurpose loudspeaker system designed for professional portable and installed applications. With a 90°H x 60°V coverage pattern it combines high output capability with excellent sound performance in a trapezoidal compact enclosure, made of 15 mm plywood.
It features a powerful 8”speaker for MF/LF frequency range, and a 1” (25mm) exit HF compression driver for extended high frequency response. An advanced passive crossover, with PTC driver protection, matches the components working perfectly together and allows full-range application without additional electronics.
The versatile iP 8 suits for speech and music applications as a stand-alone fullrange loudspeaker or MF/HF speaker in sound reinforcement systems.
KEY FEATURES
● 1” exit HF compression driver
● Compact design
● User-rotatable, 90° x 60° horn
● Passive fullrange operation
● Vertical and horizontal orientation
● Crossover with HF protection
● Pole mount flange
● M8 inserts for flexible mounting options
● Weight only 8.5 kg
SPECIFICATION
Loudspeaker Type: Fullrange, two-way, passive
Frequency Range (-10dB): 70 Hz – 20 kHz
Frequency Response (+- 3dB): 80 Hz – 18 kHz
Coverage Pattern: H 90° x V 60° nominal (user-rotatable)
Power Handling: 200 W continuous, 800 W peak
System Sensitivity (1w/1m): 95 dB
Maximum SPL (Calculated at 1m): 118 dB continuous, 124 dB peak
HF Driver: 1,35”voice coil, 1” exit compression driver
LF Driver: 8”, 2” VC speaker aaCRAAFT
Nominal Impedance: 8 ohms
Crossover: 2,7 kHz passive
Protection: PTC driver protection
Active Tuning / Features: n/a
Enclosure: Birch plywood
Finish: Black textured paint
Fittings: 7x M8 inserts,1x bar handle, pole-socket, WB 1 wall mount optional
Protective Grille: Black perforated steel with acoustic transparent foam backing

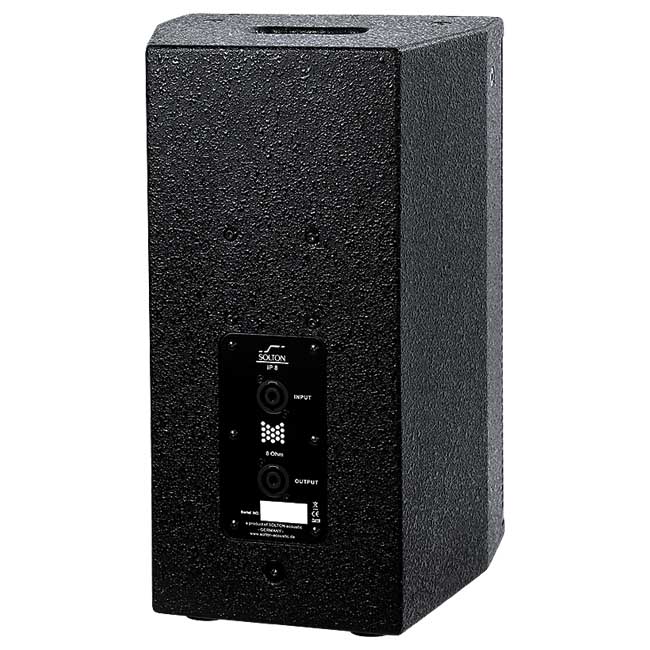

Connectors: 2 x NL4, Pins 1+/1-
Dimensions mm (WxHxD): 263 x 423 x 240
Weight: 8.5 kg
APPLICATION
● Portable sound reinforcement
● Installation
● Live Music
● Bars and restaurants
● Nightclubs
● Corporate AV events and conferences
