CX 15 HI+
The Solton CX 15 Hi+ is a high performance, 2-way Horn loaded coaxial loudspeaker system that can be used in a variety of applications where excellent sound quality, wide bandwidth directivity control, and high efficiency are required in a compact package.
This cabinet features one 2,5“ / 1,4“ exit HF compression driver, coupled to a big size constant directivity 90° H x 40° V horn.

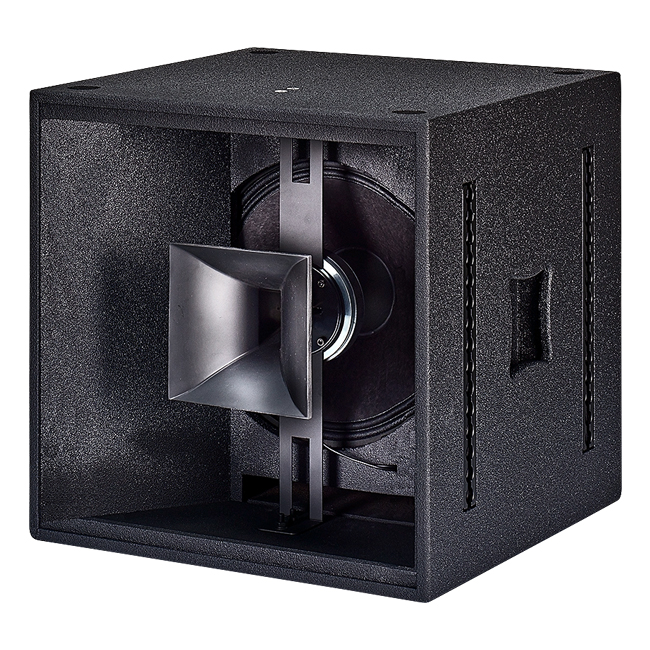

The MF/LF section is equipped with one hornloaded high-performance 15” speaker (4” voice coil) with special weather-resistant coating. The 15” transducer is constructed behind the horn of the high-frequency section (coaxial construction).
The enclosure is constructed out of 15mm plywood, and covered with two layers of black weather-resistant PolyUrea coating inside and outside. Front grill with acoustic transparent weather protecting foam backing. The integrated ANCRA (comp.) tracks flying system for installation.
The CX 15 Hi+ features make it ideal for various fixed install application.
But in combination with Solton subwoofer CX 218 Sub, it makes simple and very powerful, budget-efficient systems for mobile aplications.
KEY FEATURES
• Very high SPL with smooth response
• 2,5” voice coil , 1,4 exit HF compression driver
• Rotatable Constant-directivity 90 Hº x 40º V horn
• 15“ horn loaded woofer, with special weather-resistant coating
• Excellent pattern control for medium and long throw use
• Advanced crossover with HF protection
• 104 dB sensitivity, 138 dB maximum SPL
• PolyUrea coating (weather proofed)
• Cover plates for handles
• ANCRA (comp.) tracks rigging
SPECIFICATION
Loudspeaker Type: 15”,Two-way, Horn loaded coaxial, weather protected
Frequency Range (-10dB): 50 Hz – 20 kHz
Frequency Response (+- 3dB): 60 Hz – 18 kHz
Coverage Pattern: H 90° x V 40° nominal
Power Handling: 700 W continuous, 2800 W peak
System Sensitivity (1w/1m): 104 dB
Maximum SPL (Calculated at 1m): 132 dB continuous, 138 dB peak
HF Driver: 2,5 VC, 1,4” exit compression driver
LF Driver: 15”, 4” voice coil, weather protected speaker
Nominal Impedance: 8 ohms
Crossover: 1,7 kHz
Protection: PTC driver protection
Active Tuning / Features: n/a
Enclosure: 15 mm birch plywood
Finish: 2x Black Poly Urea weather resistant coating
Fittings: 2x handles, ANCRA rigging

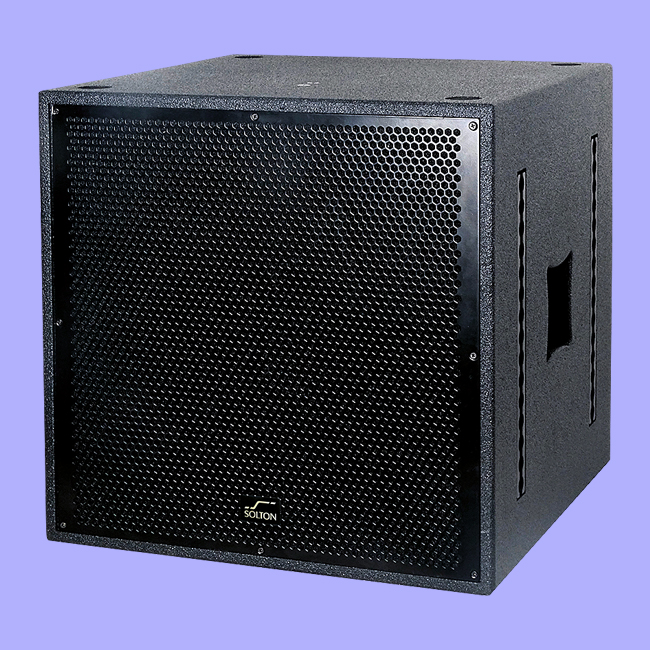

Protective Grille: Black perforated steel with acoustic transparent foam backing

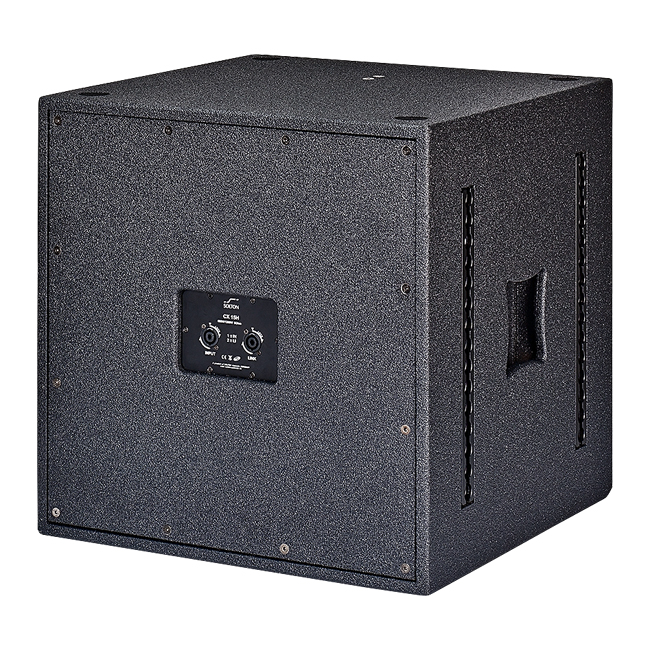

Connectors: 2 x NL4, Pins 1+/1-
Dimensions mm (WxHxD): 550 x 550 x 550
Weight: 43 kg
APPLICATION
• Stadiums
• Installation
• Live Music
