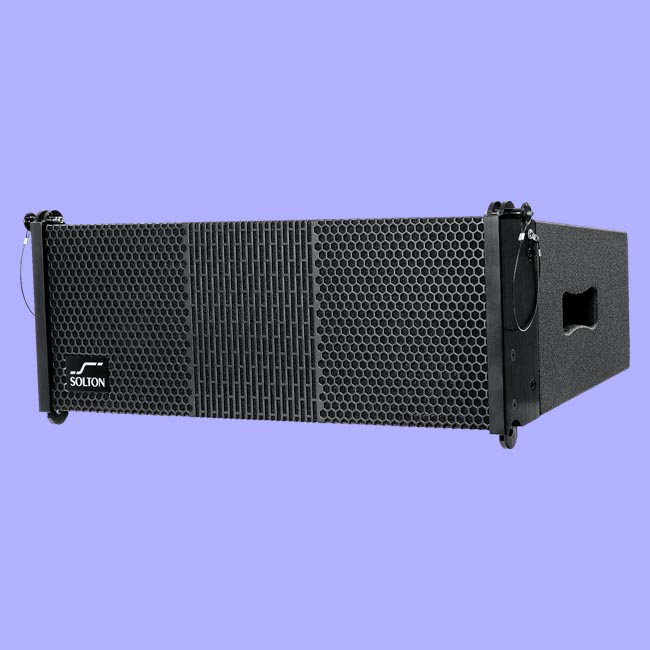

The CL 6 is a 2-way, full range Ultra-Compact line array cabinet that combines superior sound quality with easiness and flexibility in a simple system.
With a 100°H x 12°V nominal dispersion pattern it combines high output capability with excellent sound performance in a compact enclosure, made of 15 mm birch plywood.
It features two powerful 6,5” / 1,5” voice coil drive units for the mid-bass range, and one low-distortion compression driver with a 1,75” voice coil and 1“ exit for extended high frequency response.
The line wave-forming waveguides of HF driver is hornloaded.
An advanced passive crossover, with PTC driver protection, matches the components working perfectly together.
A passive 2-way system with an impedance of 16 ohms, it can be driven in blocks of 1, 2, 3 or 4 resolution configuration.
The very small footprint and light weight of CL 6 make it the system of choice for smaller venues which require superb fidelity, coverage consistency and control from an ultra-compact line array.
The CL 6 vertical line array element is suited to a wide variety of mobile and installed applications.
Ease Focus GLL Files are available for this cabinet.
Key Features
Ultra-Compact, High output Line Array element
Very stable horizontal coverage
Passive operation

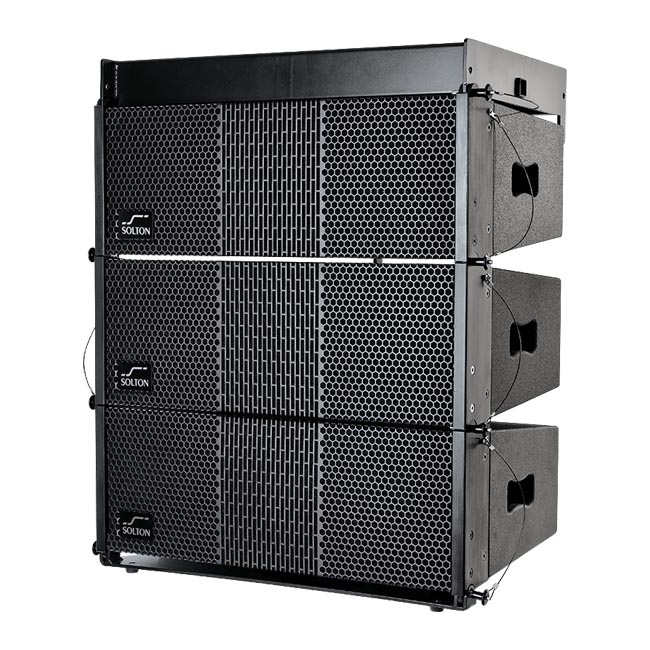

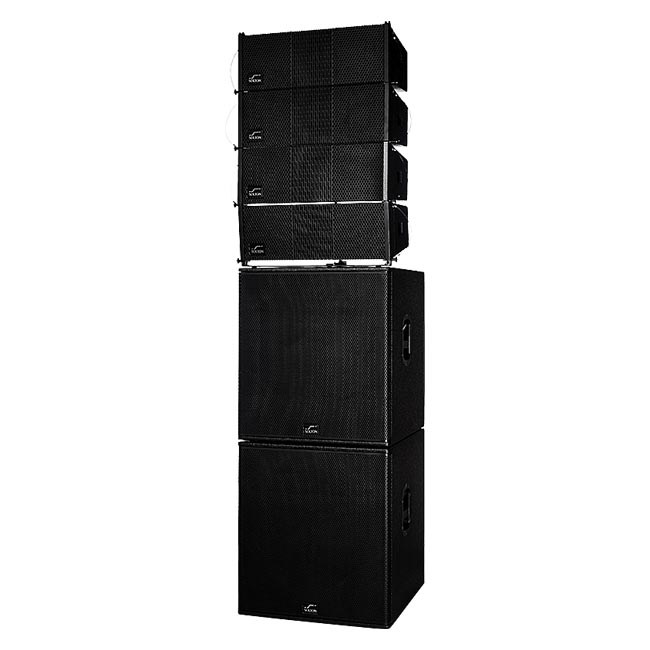

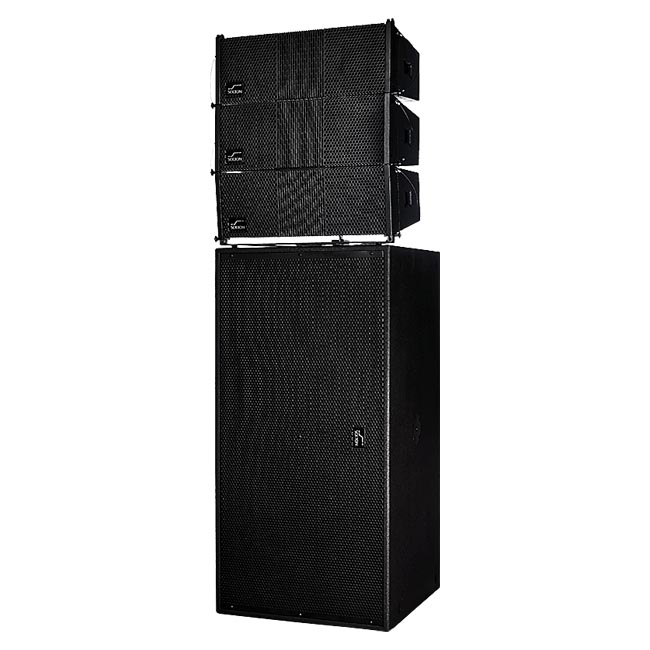

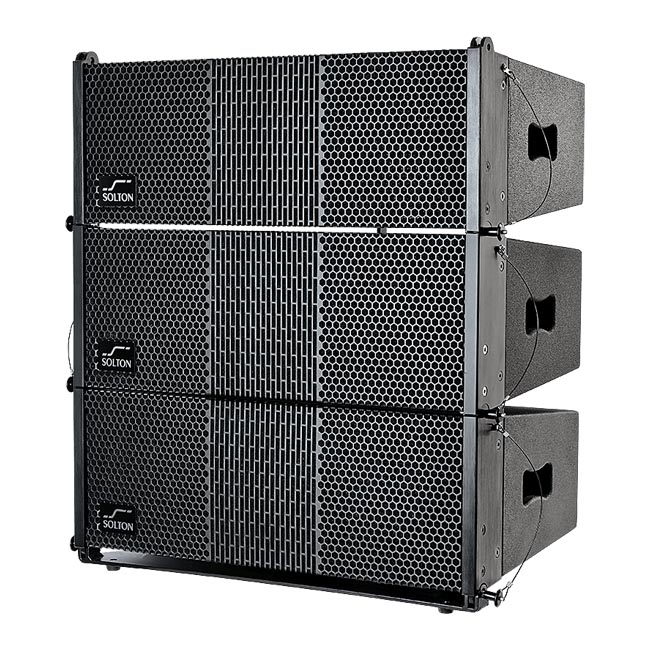

Stacked operation possible
Advanced crossover with HF protection
Fast, integral 3-point flying systems for up to 16 enclosures
Very good output/weight ratio
Specification
• Loudspeaker Type: Two-way, passive, fullrange, line array element
• Frequency Range (-10dB): 70 Hz – 20 kHz
• Frequency Response (+- 3dB): 80 Hz – 18 kHz
• Coverage Pattern: H 100° x V 12° nominal
• Power Handling: 350 W continuous, 1400 W peak
• System Sensitivity (1w/1m): 98 dB
• Maximum SPL (Calculated at 1m): 123 dB continuous, 129 dB peak
• HF Driver: 1,75” VC compression driver, horn loaded with waveguide
• LF Driver: 2 x 6,5”, 1,5” voice coil, reflex loaded direct radiator
• Nominal Impedance: 16 ohms
• Crossover: 2,3 kHz
• Protection: PTC driver protection
• Active Tuning / Features: n/a
• Enclosure: 15 mm birch plywood
• Finish: Black textured paint
• Fittings: 2 x Handles, Rigging elements
• Protective Grille: Black perforated steel with acoustic transparent foam backing

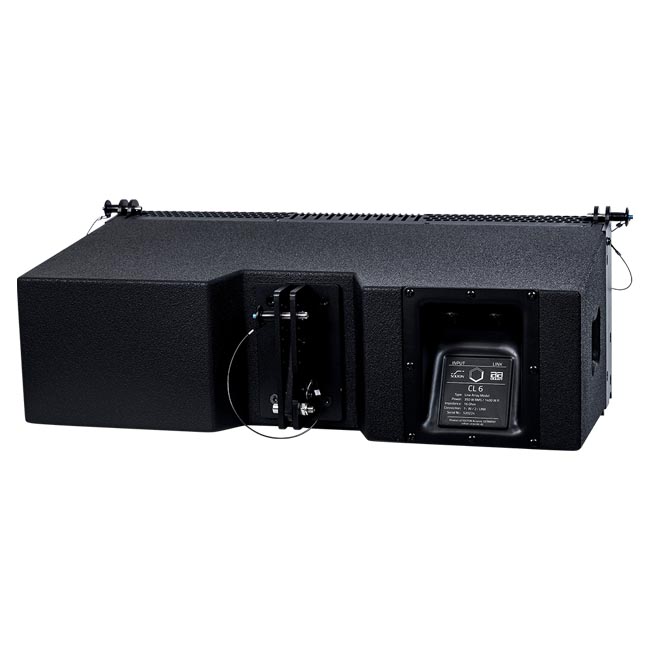

• Connectors: 2 x NL4, Pins 1+/1-
• Dimensions mm (WxHxD): 590 x 220 x 330
• Weight: 15.4 kg
