Professional sound and excellent construction quality

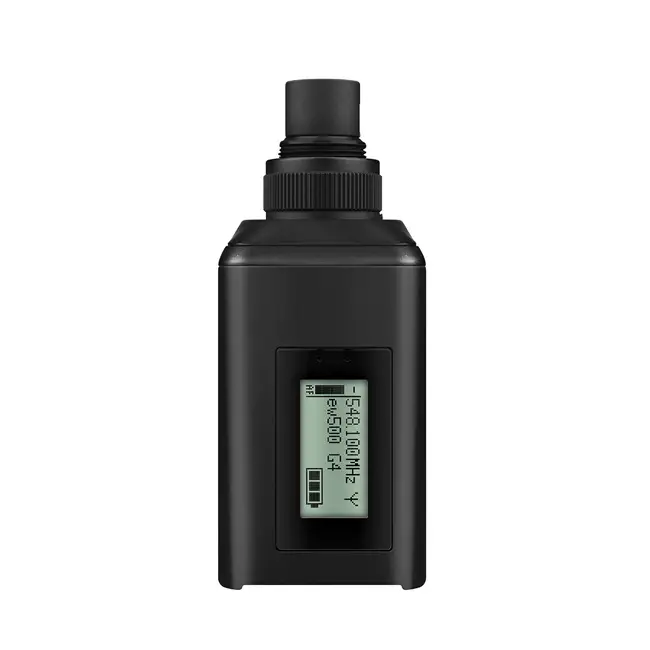

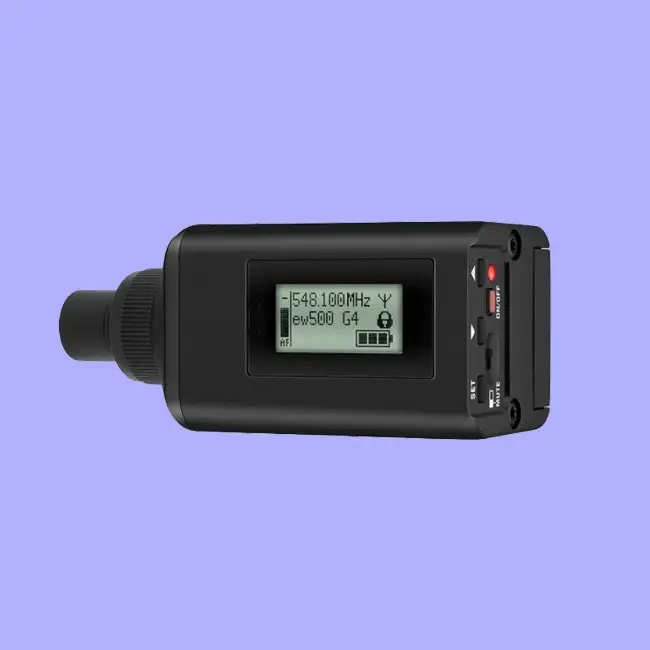

Powerful black plug-on transmitter with phantom power, increased bandwidth and transmission power for evolution wireless G4 500P Series systems. For professional film productions.
– Professional sound and excellent construction quality
– Easy to use and fast setup time
– Easy and flexible wireless synchronisation between transmitter and receiver via infrared
– Up to 88 MHz bandwidth, up to 32 channels
– Range: up to 100 meters / 330 feet
– Increased RF output power (10/30/50 mW)
– Up to 8 hours of operation time
– With 48 V phantom powering
Frequency range:
AS: 520 – 558 MHz
Aw+: 470 – 558 MHz
Bw: 626 – 698 MHz
Cw: 718 – 790 MHz
Dw: 790 – 865 MHz
GBw: 606 – 678 MHz
Gw: 558 – 626 MHz
Gw1: 558 – 608 MHz
JB: 806 – 810 MHz
K+: 925 – 937.5 MHz
Dimensions: Approx. 105 x 43 x 43 mm
Compander: Sennheiser HDX
THD, total harmonic distortion: ≤ 0.9 %
Weight: (incl. batteries) approx. 195 g
Signal-to-noise ratio: ≥ 120 dBA
RF output power:
Switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
Switching bandwidth: Up to 88 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Operating time: Typically 8 h
Modulation: Wideband FM
Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption:
at nominal voltage: typ. 210 mA
with transmitter switched off: ≤ 25 μA
Input impedance: 68 kΩ, unbalanced
Max. Input voltage: 6 Veff
Powering: 3 V battery / 2.4 V rechargeable battery
Transmission frequency:
Max. 3520 frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels
AF frequency response: 80 – 18,000 Hz
Temperature Range: -10 °C to +55 °C
