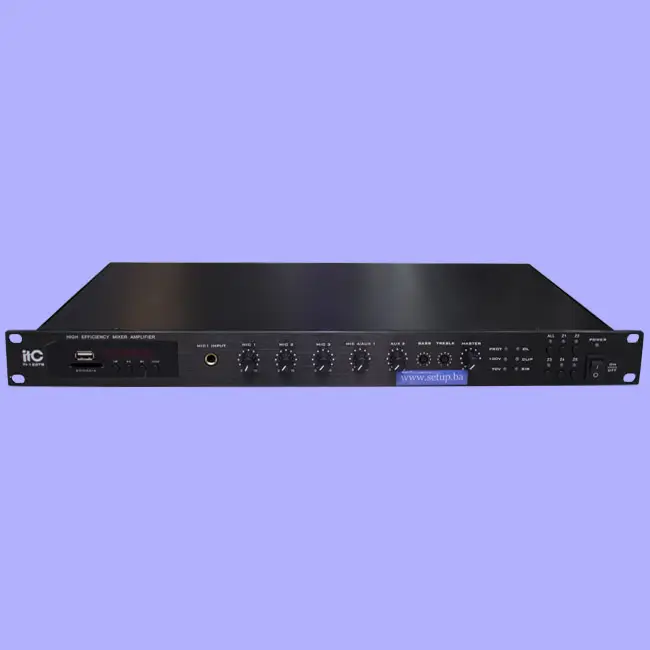

Digital mixer amplifier with Mp3/TUNER/Bluetooth.Ideal for small & medium supermarkets, malls, and indoor places like cafe shop to play background musics.
Features
– Standard rack mounted design(1U) with delicate SMT technology.
– With Mp3/TUNER/Bluetooth, songs being played can be shown on the digital screen.
– With Mp3/TUNER/Bluetooth remote control function.

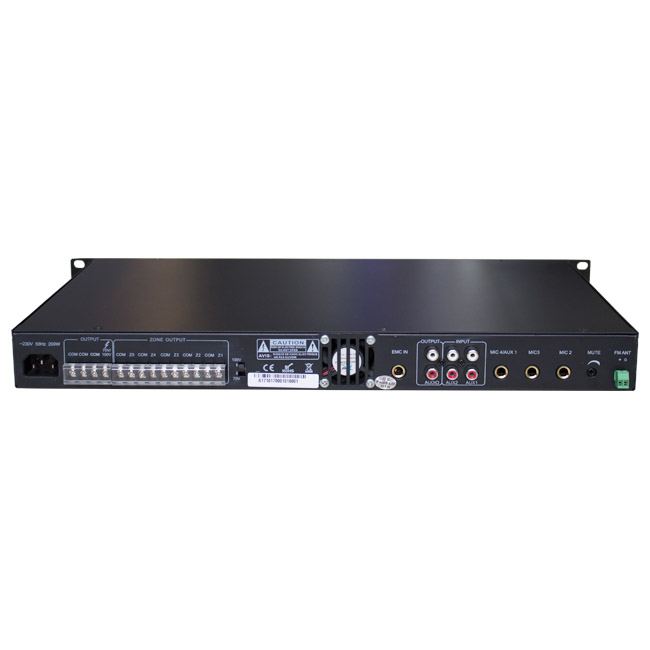

– 1 EMC input, 2 AUX inputs, 4 MIC inputs.
– Channel priority function EMC>MIC1>MIC2, MIC3, AUX1, AUX2.
– Each input has independent volume adjustment, and the total volume has high pitch, bass adjustment and volume control.
– With electrical level and overload protection indicator.
– The device has good self-protection such as short circuit, overload and overheat.
– 2 kinds of output modes: 100V constant voltage output; 4-16Ω constant resistance output.
– With 5 zones selection.
– EMC input can activate partitioning zones.
– Perfect combined design for high efficiency& energy saving switch power and class-D amplifier, with high stability.
– Voltage Power Supply: 180V-240V
– Optional standby power supply 24V without delay for toggling pictures.
Specifications
Model: TI-120TB
Output: 4-16Ω, 100V
Output power: 120W
Input Sensitivity: MIC1, 2, 3, 4 Input: 5mV/600Ω Unbalanced 6.3 connector
Impedance:
AUX1, 2 Input: 350mV/10KΩ Unbalanced RCA connector
EMC Input 775mV/10KΩ Unbalanced 6.3 connector
Output sensitivity: MIX OUT: 1000mV/470Ω Unbalanced RCA connector
Tone
Bass: ±10dB at 100Hz
Treble: ±10dB at 10KHz
Frequency response: 50~16KHz (+1dB, -3dB)
S/N Rate: MIC1, 2, 3: 66dB; AUX1, 2: 80dB
THD: Less than 0.5% (at 1KHz, 1/3 Rated Power)
Mute function: EMC>MIC1>MIC2, MIC3, AUX1, AUX2
Capacity: 5 Zones
Channel Crosstalk: ≥50dB
Attenuation
Heat Dissipation:
The fan starts work when powered on.
Winds flank in and out from the back, can lead to strong cooling effect. With infinitely variable speed.
Protection: Short circuit, overload and overheat
Power supply: ~220-240V/50Hz
power consumption: 160W
Dimension: 484x260x44mm
Weight: 3.8kg
