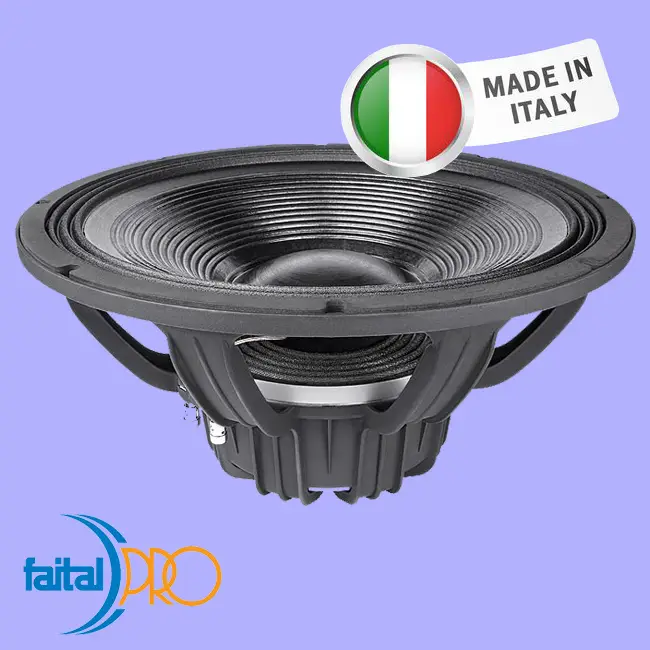

18XL1600 18” – 1600 W – 98 dB – 8 Ohm
NOMINAL SPECIFICATIONS
|
Nominal Diameter |
460 mm (18 in) |
|

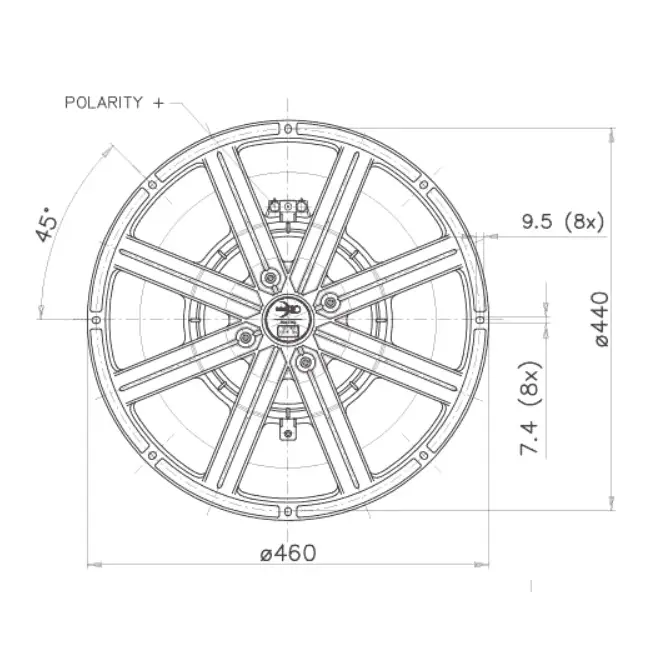

Overall Diameter |
460 mm (18.11 in) |
|
Bolt Circle Diameter |
440 mm (17.32 in) |
|
Baffle Cutout Diameter |
422 mm (16.61 in) |
|

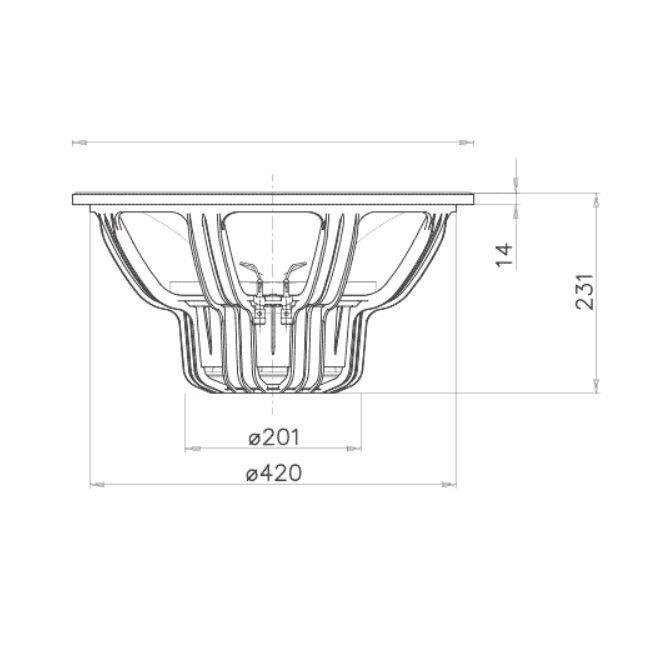

Depth |
231 mm (9.09 in) |
|
Flange and Gasket Thickness |
14 mm (0.55 in) |
|
Net Weight |
12.2 Kg (26.9 lb) |
|
Shipping Box (Single Carton Box) |
490 x 485 x 275 mm (19.3 x 19.1 x 10.8 in) |
|
Shipping Weight |
13.7 Kg (30.2 lb) |
TECHNICAL PARAMETERS
|

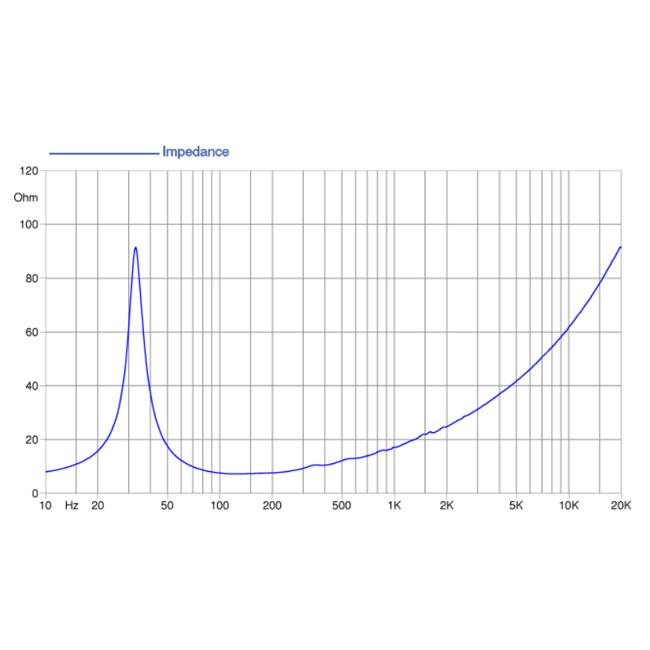

Nominal Impedance |
8 Ohm |
|
Minimum Impedance |
7.4 Ohm |
|
AES Power Handling (1) |
1600 W |
|
Maximum Power Handling (2) |
3200 W |
|
Sensitivity (1W/1m) |
98 dB |
|

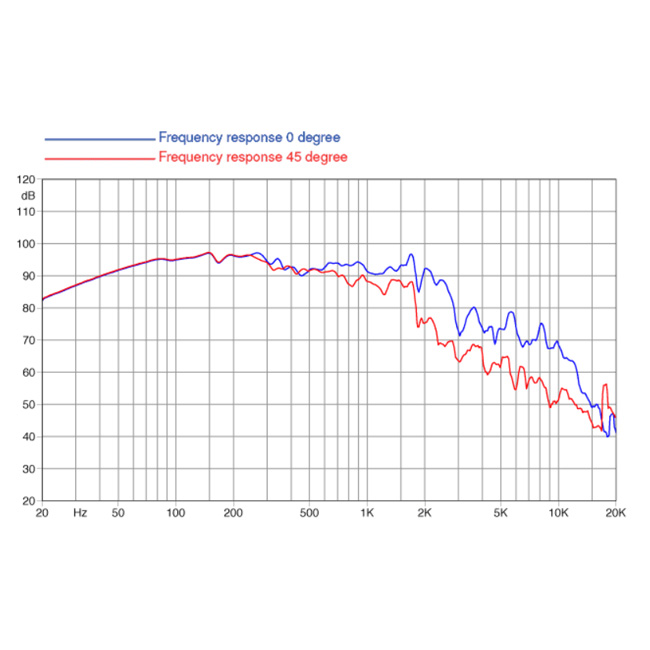

Frequency Range |
30÷1500 Hz |
|
Voice Coil Diameter |
100 mm (4 in) |
|
Winding Material |
Cu |
|
Former Material |
Glass Fiber |
|
Winding Depth |
31 mm (1.22 in) |
|
Magnetic Gap Depth |
15.5 mm (0.61 in) |
|
Flux Density |
1.05 T |
|
Magnet |
Neodymium Slug Crown |
|
Basket Material |
Aluminum |
|
Demodulation |
Triple Al Dem. Ring |
|
Cone Surround (3) |
Triple Roll |
|
NET Air Volume filled by Loudspeaker |
7.3 dm^3 (0.258 ft^3) |
|
Spider Profile |
2x non-adjacent symmetrical constant height waves |
THIELE AND SMALL PARAMETERS
|
Fs |
32 Hz |
|
Re |
5.4 Ohm |
|
Qes |
0.37 |
|
Qms |
9.3 |
|
Qts |
0.36 |
|
Vas |
184.7 dm^3 (6.52 ft^3) |
|
Sd |
1124 cm^2 (174.2 in^2) |
|
Xmax (4) |
12.92 mm |
|
Xdamage (5) |
28 mm |
|
Mms |
240.0 g |
|
Bl |
26.7 N/A |
|
Le |
1.45 mH |
|
Mmd |
217.0 g |
|
Cms |
0.10 mm/N |
|
Rms |
5.2 Kg/s |
|
Eta Zero |
1.61 % |
|
EBP |
86 Hz |
