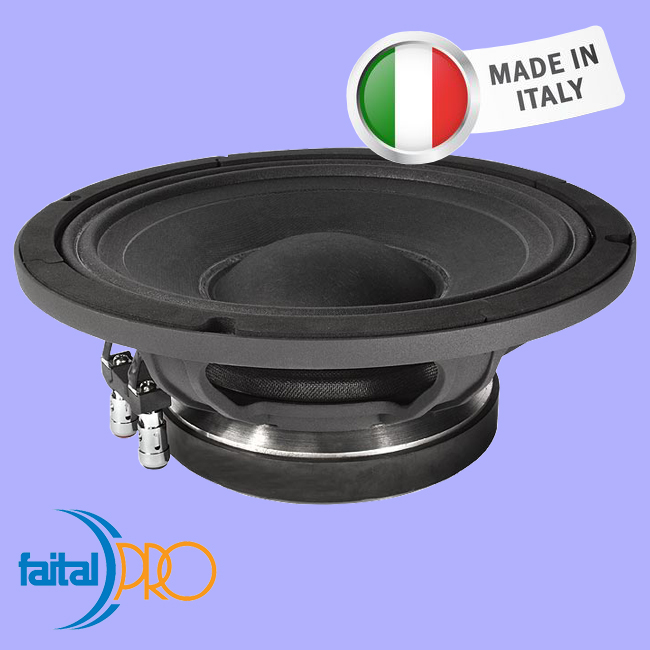

NOMINAL SPECIFICATIONS
|
Nominal Diameter |
250 mm (10 in) |
|
Overall Diameter |
261 mm (10.28 in) |
|

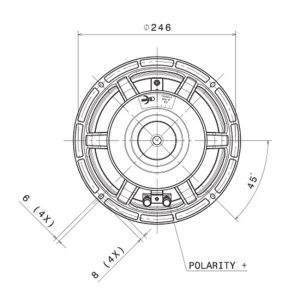

Bolt Circle Diameter |
246 mm (9.69 in) |
|
Baffle Cutout Diameter |
230 mm (9.06 in) |
|
Depth |
109 mm (4.29 in) |
|
Flange and Gasket Thickness |
12 mm (0.47 in) |
|
Net Weight |
4.1 Kg (9.0 lb) |
|
Shipping Box |
282 x 280 x 140 mm |
|
Shipping Weight |
4.7 Kg (10.4 lb) |
TECHNICAL PARAMETERS
|
Nominal Impedance |
8 Ohm |
|
Minimum Impedance |
6.6 Ohm |
|
AES Power Handling (1) |
300 W |
|
Maximum Power Handling (2) |
600 W |
|

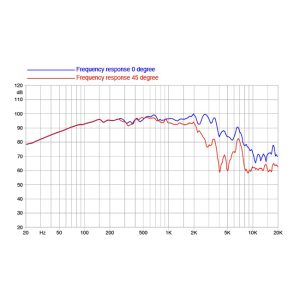

Sensitivity (1W/1m) |
98 dB |
|
Frequency Range |
60÷4000 Hz |
|
Voice Coil Diameter |
65 mm (2.56 in) |
|
Winding Material |
Al |
|
Former Material |
Glass Fiber |
|
Winding Depth |
12.5 mm (0.49 in) |
|
Magnetic Gap Depth |
8 mm (0.31 in) |
|
Flux Density |
1.2 T |
|
Magnet |
Ferrite Ring |
|
Basket Material |
Aluminum |
|
Demodulation |
No |
|
Cone Surround (3) |
M-Roll |
|
NET Air Volume filled by Loudspeaker |
1.3 dm^3 (0.046 ft^3) |
|
Spider Profile |
1x variable height waves |
THIELE AND SMALL PARAMETERS
|
Fs |
60 Hz |
|
Re |
5.4 Ohm |
|
Qes |
0.36 |
|
Qms |
5.7 |
|
Qts |
0.34 |
|
Vas |
28 dm^3 (0.99 ft^3) |
|
Sd |
322 cm^2 (49.91 in^2) |
|
Xmax (4) |
4.92 mm |
|
Xdamage (5) |
15.25 mm |
|
Mms |
36.9 g |
|
Bl |
14.4 N/A |
|
Le |
0.64 mH |
|
Mmd |
33.6 g |
|
Cms |
0.19 mm/N |
|
Rms |
2.44 Kg/s |
|
Eta Zero |
1.63 % |
|
EBP |
167 Hz |
QUICK ACOUSTIC SPECS
|
Nominal Impedance |
8 Ohm |
|
Minimum Impedance |
6.6 Ohm |
|
AES Power Handling (1) |
300 W |
|
Sensitivity (1W/1m) |
98 dB |
|
Frequency Range |
60÷4000 Hz |
|
Flux Density |
1.2 T |
|
Magnet |
Ferrite Ring |
|
Demodulation |
No |
|
Cone Surround (2) |
M-Roll |
|
Fs |
60 Hz |
|
Re |
5.4 Ohm |
|
Qes |
0.36 |
|
Qms |
5.7 |
|
Qts |
0.34 |
|
Vas |
28 dm^3 (0.99 ft^3) |
|
Sd |
322 cm^2 (49.91 in^2) |
|
Xmax (3) |
4.92 mm |
|
Xdamage (4) |
15.25 mm |
|
Mms |
36.9 g |
|
Bl |
14.4 N/A |
|
Le |
0.64 mH |
|
Mmd |
33.6 g |
|
Cms |
0.19 mm/N |
|
Rms |
2.44 Kg/s |
|
Eta Zero |
1.63 % |
|
EBP |
167 Hz |
QUICK MECHANICAL SPECS
|
Nominal Diameter |
250 mm (10 in) |
|
Overall Diameter |
261 mm (10.28 in) |
|
Bolt Circle Diameter |
246 mm (9.69 in) |
|
Baffle Cutout Diameter |
230 mm (9.06 in) |
|
Depth |
109 mm (4.29 in) |
|
Flange and Gasket Thickness |
12 mm (0.47 in) |
|
Net Weight |
4.1 Kg (9.0 lb) |
