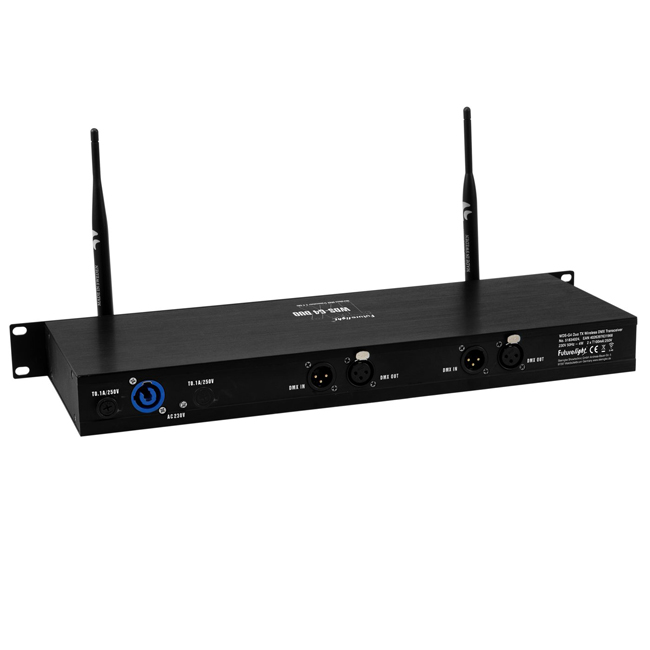

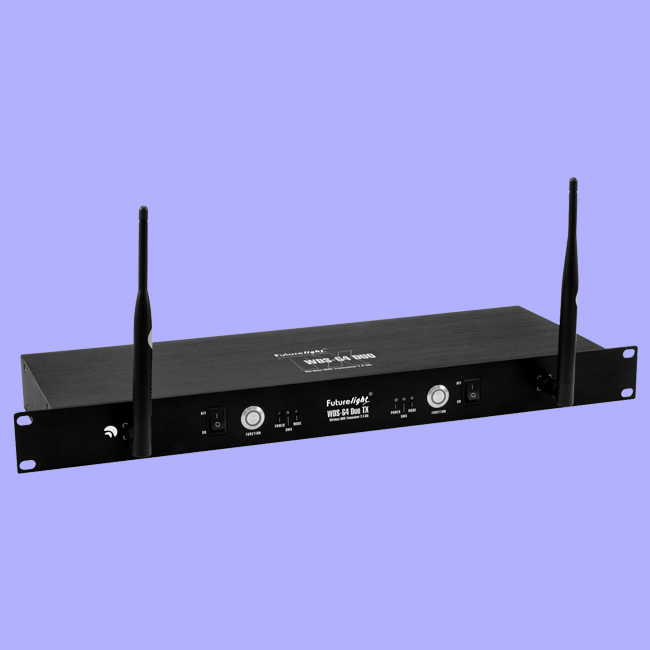

FUTURELIGHT WDS-G4 Duo TX Wireless DMX Transceiver
Wireless DMX system 2.4 GHz – two transceivers with W-DMX unit in one 19” housing
• Two W-DMX transceivers by Wireless Solution in one housing
• Wireless transmission of DMX data
• Switching between transmitter and receiver
• Compatible with Wireless Solution W-DMX systems
• Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
• AFHSS technology ensures interference-free operation also alongside other DMX transmitters and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
• Operating range up to 500 m (with line-of-sight)
• 1 to 512 receivers can be controlled by each transmitter
• Simultaneous operation of up to 6 transmitters, thus control of 6 DMX universes (3072 DMX channels) possible
• Plug & Play: quick and easy setup with one operating button
• LED indication for operation and functions
• DMX input and output, 3-pin XLR
• 2.4 GHz – license-free worldwide
• 483 mm device (19”)
• Rack installation, 1 U
• Control: DMX; W-DMX by wireless solution built-in
• Housing design: (19”) 48.3 cm rack installation 1 U
|
Power supply: |
230 V AC, 50 Hz |
|
Power consumption: |
4 W |
|
IP classification: |
IP20 |
|
Power connection: |
Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided) |
|
DMX channels: |
1024 |
|
DMX input: |
2 x 3-pin XLR (M) mounting version |
|
DMX output: |
2 x 3-pin XLR (F) mounting version |
|
Control: |
DMX |
|
W-DMX by wireless solution built-in |
|
|
Color: |
Black |
|
Frequency band: |
2.4 GHz |
|
Carrier frequency: |
2,4 GHz |
|
Modulation: |
AFHSS |
|
latency: |
< 5 ms |
|
Parallel mode: |
max. 6 Transmitter |
|
Range: |
500 m with line of sight |
|
Housing design: |
(19”) 48.3 cm rack installation 1 U |
|
Width: |
48,3 cm |
|
Height: |
4,45 cm |
|
Depth: |
16 cm |
|
Weight: |
1,98 kg |
