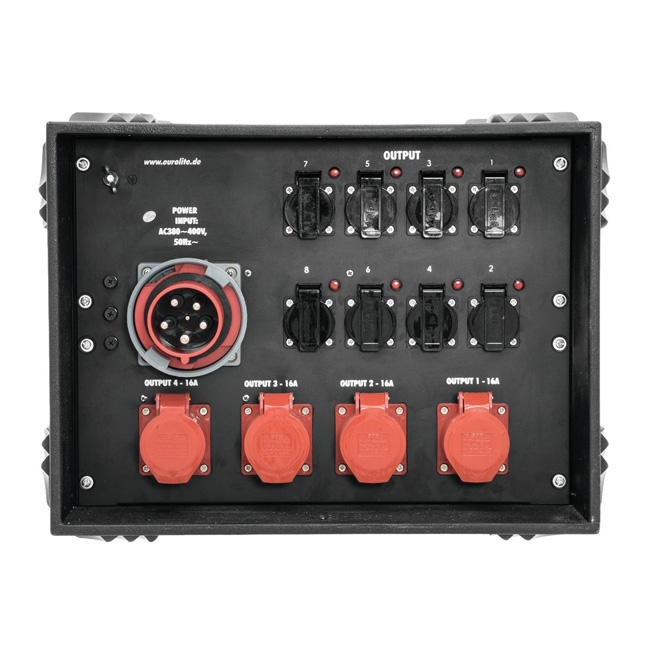

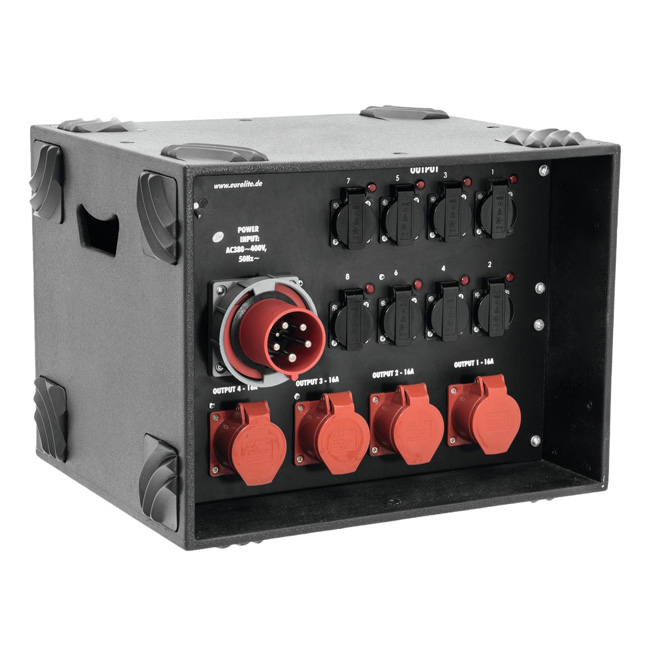

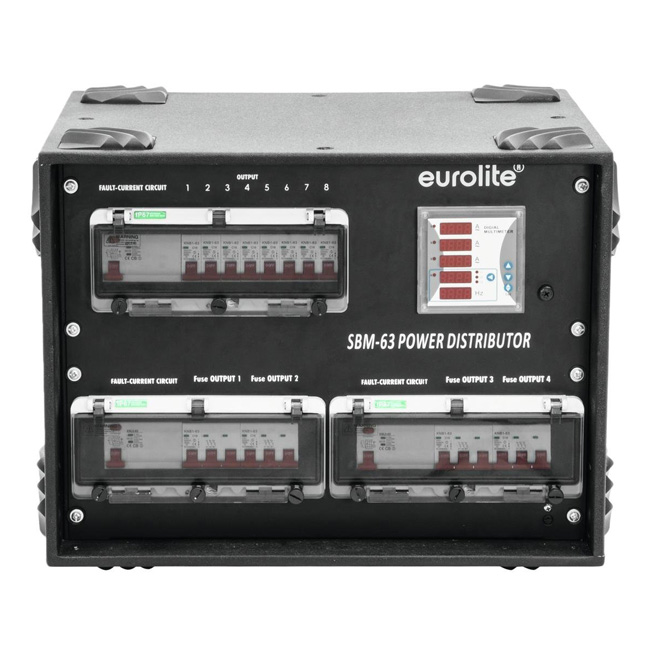

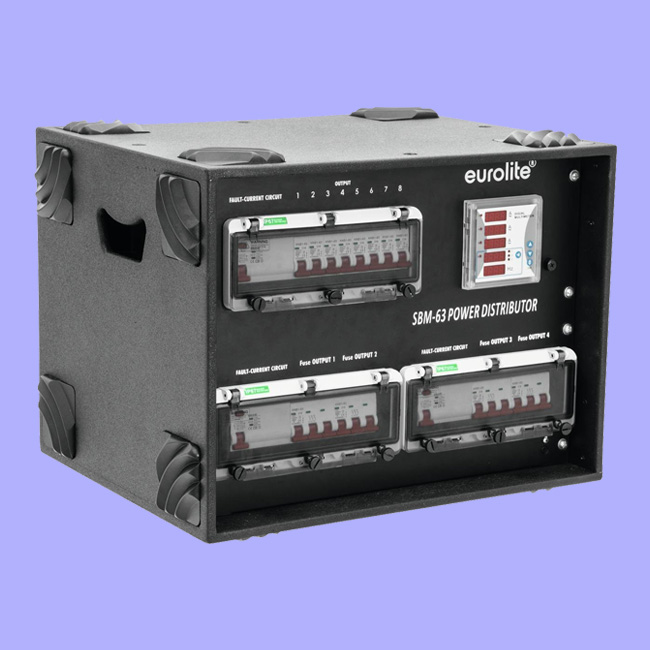

EUROLITE SBM-63 Power Distributor
63 A power distributor with multimeter
• Input: 1 x 63 A CEE
• Outputs: 8 x safety sockets, 4 x 5-pin CEE 16 A
• 3 x FI circuit breaker 63 A, 0.03 A for safety sockets and CEE sockets
• 8 x circuit breaker C16 A 1 Ph, 4 x circuit breaker C16 A 3 Ph
• 3-phase measuring of voltages from 100-380 V/AC
• Current and frequency display
• Rugged, stackable plastic enclosure
• Power output: 8 x Protective contact (F) hinged lid mounting version fused
• Power output: 4 x CEE 16A 5-pol (f) recessed mounting fused
|
Power connection: |
Mains input CEE 63A 5-pol (m) recessed mounting |
|
Power output: |
8 x Protective contact (F) hinged lid mounting version fused |
|
4 x CEE 16A 5-pol (f) recessed mounting fused |
|
|
Width: |
53,5 cm |
|
Height: |
40,5 cm |
|
Depth: |
42 cm |
|
Weight: |
20,00 kg |
|
Power supply: |
380-400 V AC, 50 Hz |
|
Max. current/phase: |
63 A |
|
Fuses: |
8 x 16 A 1 Ph, 4 x 16 A 3 Ph, |
|
3 x FI/RCD 63 A/0,03 A |
|
|
Voltage measurement: |
100-380 V |
|
Measuring impedance: |
>500 kohms |
|
Measuring accuracy: |
± (0.5 % + 2 counts) |
|
Frequency measurement: |
45-65 Hz |
|
Measuring accuracy: |
± 1 Hz |
