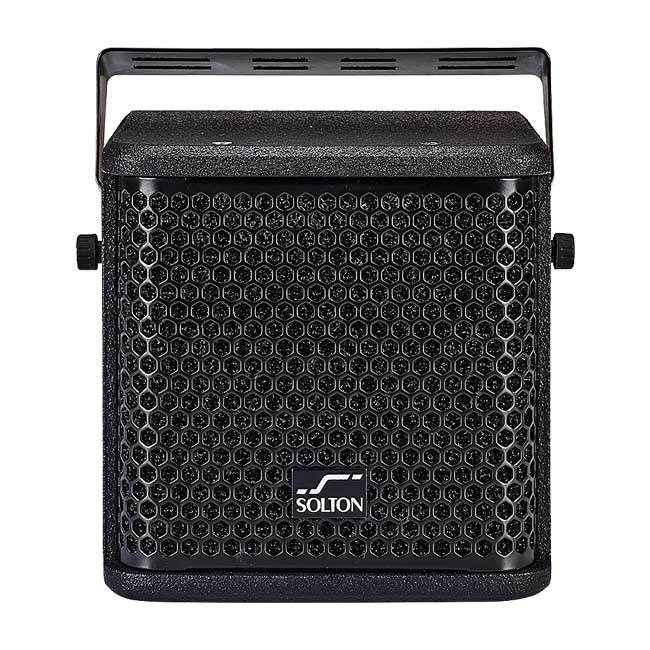

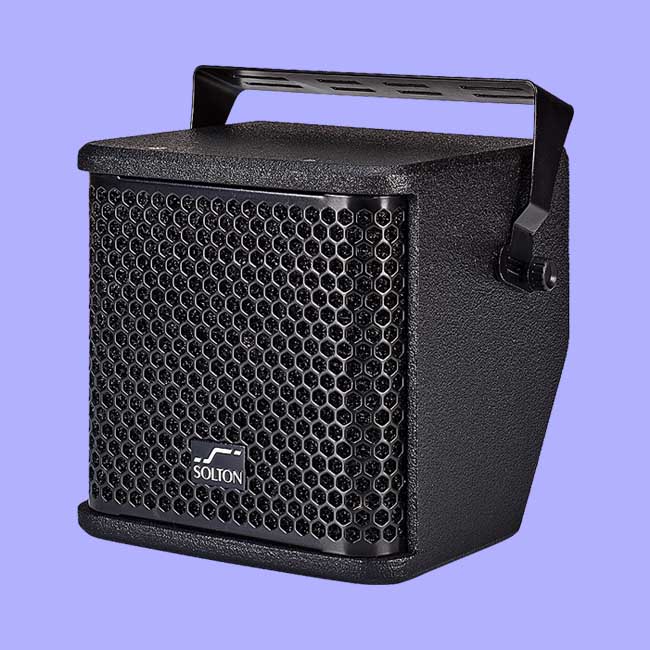

IP 5 CX
IP 5 CX is an ultra-compact coaxial two-way high performance loudspeaker for applications requiring good acoustic and power handling characteristcs, and minimun visual impact. It provides wide but precise coverage distortion free up to level of 117 dB.
Multiple mounting options (U-bracket included in delivery as standard) and connection possibilities make the IP 5CX a very efficient sound reinforcement tool for a wide range of near field applications in fix installed and mobile use.
KEY FEATURES
● High resolution coaxial 2-way design with 1” HF driver
● Ultra Compact design
● 90° x 90° nominal coverage
● Passive fullrange operation
● U-bracket included in delivery (as standard)
● 3/8“ Pole mount socket

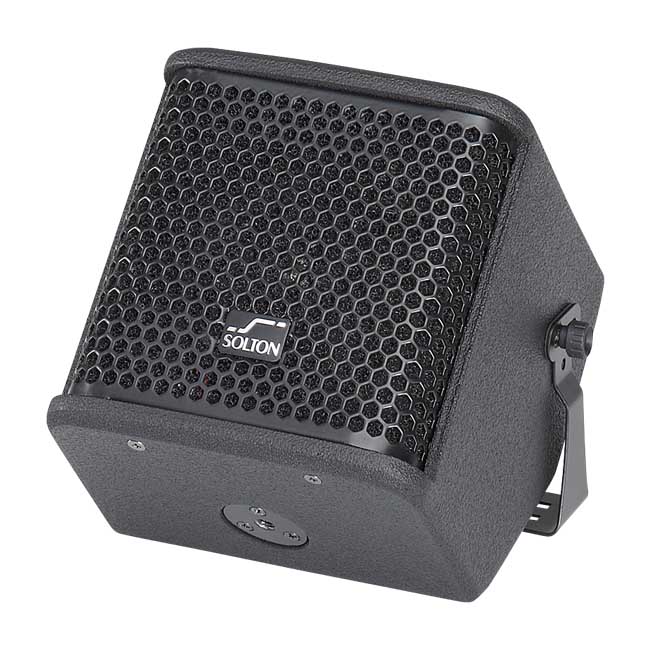

● Monitor angle (45°)
● Weight only 2,6 kg
SPECIFICATION
Loudspeaker Type: Two-way, Passive, 5” coaxial, monitor angle 45°
Frequency Range (-10dB): 95 Hz – 20 kHz
Frequency Response (+- 3dB): 105 Hz – 18 kHz
Coverage Pattern: 100° x 100° Conical
Power Handling: 80 W continuous, 160 W program
System Sensitivity (1w/1m): 92 dB
Maximum SPL (Calculated at 1m): 117 dB peak
HF Driver: 1” VC
LF Driver: 5” aaCRAAFT
Nominal Impedance: 16 ohms
Crossover: 2,2 kHz
Protection: n/a
Active Tuning / Features: n/a
Enclosure: Multi-angle, 10mm plywood
Finish: Black textured paint
Fittings: 1x Flange 3/8“ pole mount socket, U Bracket
Protective Grille: Black perforated steel with acoustic transparent foam backing

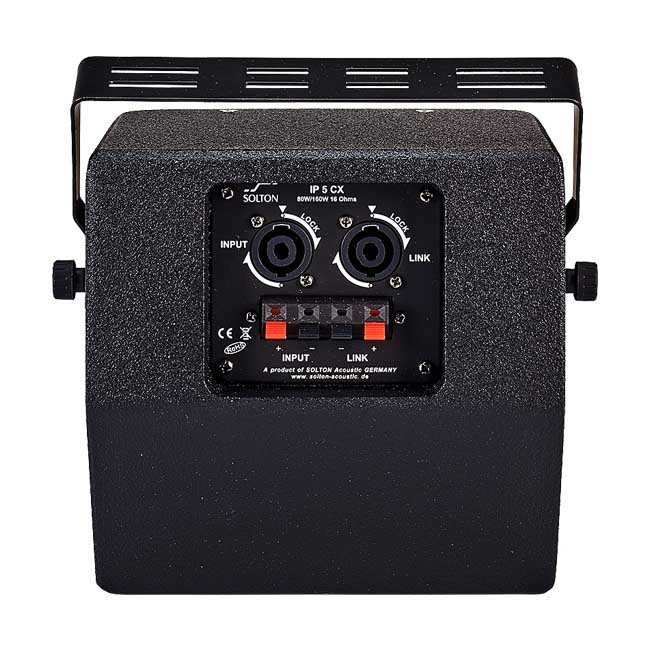

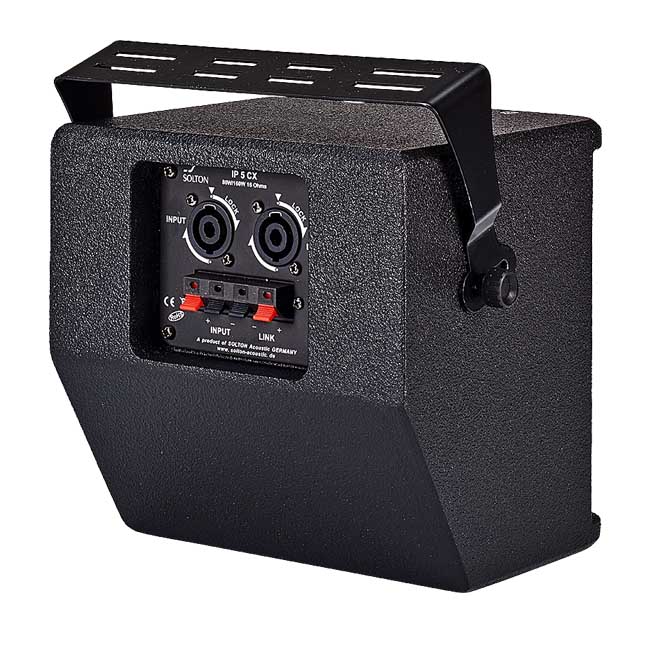

Connectors: 2 x NL 4, Terminal strip
Dimensions mm (WxHxD): 185 x 185 x 170
Weight: 2,6 kg
APPLICATION
● Front Fill Cinema / Theater
● FX Speakers
● Nearfield Monitors
● Convention Centers
● Bars and restaurants
● Nightclubs
● Studio Monitors
● Broadcast Monitors
● Mobile Conference
