The light is equips warm white and cold white led lamps. It adopts advanced heat dissipation system design, natural heat dissipation and ultra-quiet, so that the product can meet strict requirements when shooting broadcast and television.
It is very simple to operate, user-friendly design, dimming without flicker, smooth linear dimmer, stable performance, and temperature control detection protection function.
The lamp is very suitable for large TV stations, studios, multi-function halls and other video places.
Features
·The lighting function of the light is controlled by DMX-512, which is very convenient;
·Using LED chips, pure color temperature, 0-100% dimming can be achieved;
·The lamp body adopts outer frame design, beautiful appearance, convenient installation, safe and reliable.
Technical Specifications
Light Sources
·LED: 448pcs 0.5W 5730 SMD bicolor led lamp
·Color: from warm white to cool white
·Service life: 50,000h
Light output
·Color temperature: from 3200K-5600K
·CRI: ≥95Ra
·Light output power: 160-145W
·Beam angle: 130degree
Controls and procedures
·Control mode: DMX512; Master/slave; Demo
·DMX Channel: 3CH, or 4CH(with strobe)
Electrical specifications

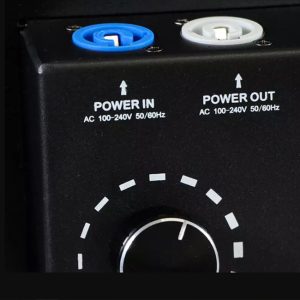

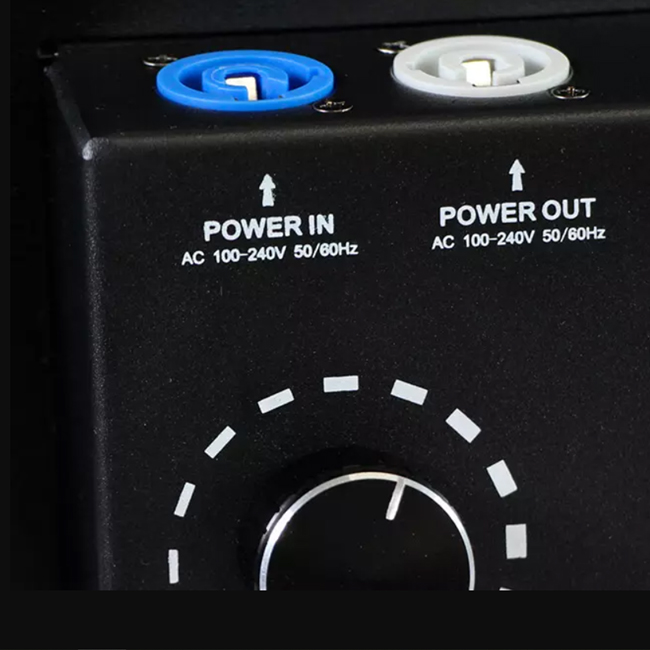

·Input voltage: AC100-240V, 50HZ-60HZ
·Power consumption: 200W
Structure specification

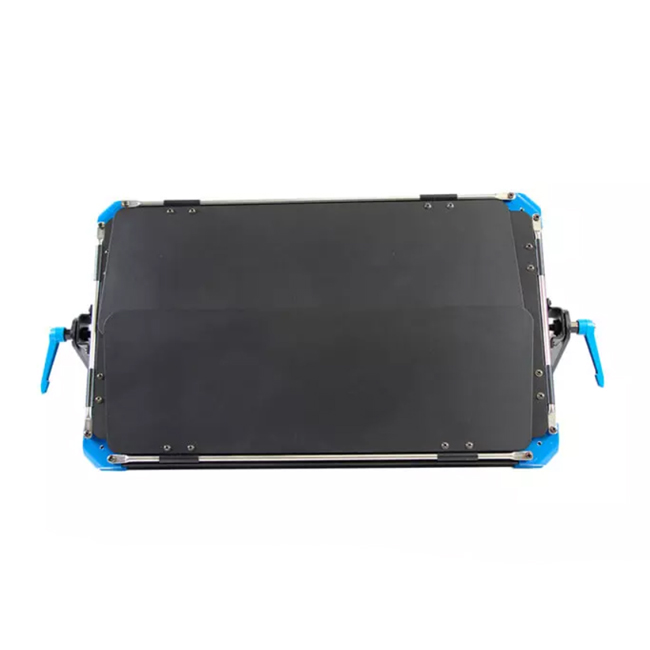

·Lamp body size: D584*W352*H113mm
·Net weight: 8.55Kg
·Shell material: aluminum alloy, without fan
·Shape color: black
Use environment
·Protection level: IP20
·Environmental temperature: -25-40℃
·Cooling system: heat sink
List of standard accessories
·1 DMX signal line
·1 power cord
·1 set of light hook suspension bridge

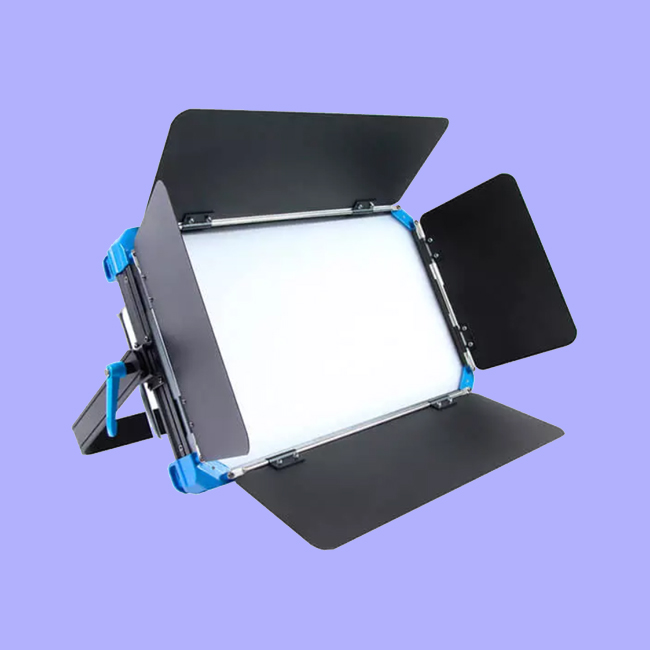

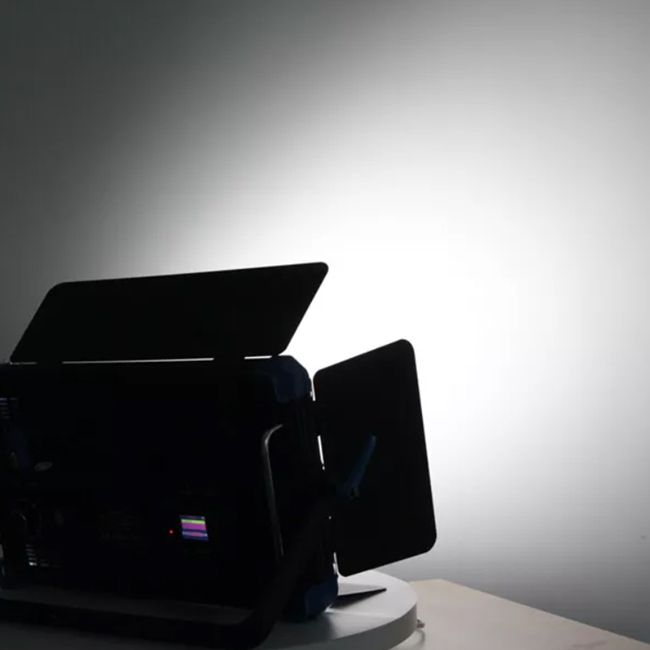

160W Bicolor LED Soft Video Panel Light
-Model: VG-HTC1480C
-Light output power: 160-145W
-Color: 3200K-5600K
-Beam angle: 130°
-CRI: ≥95Ra
