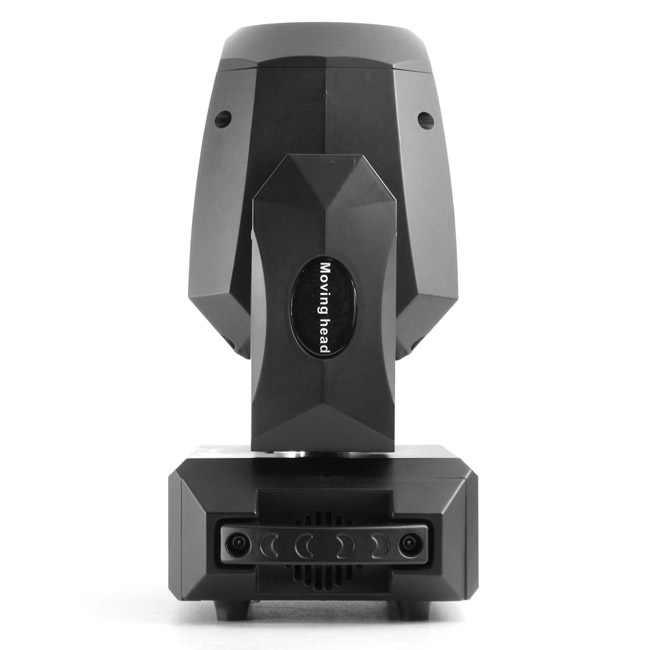

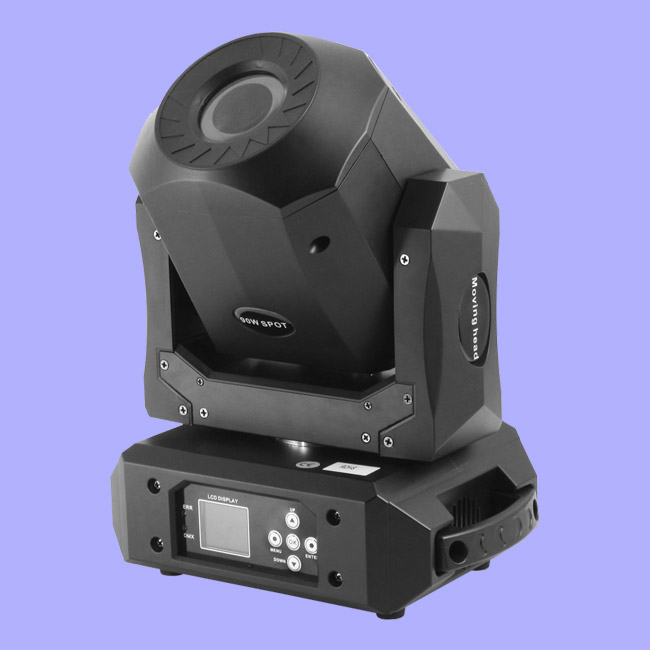

LED Moving Head 90W DIAMOND – ROTO PRISM 2x GOBO
A small moving head with a LED light source with great possibilities. Equipped with two GOBO wheels (including one rotary) and a 3-faced prism.
Small dimensions, weight and easy operation due to the use of LEDs make the device extremely versatile and convenient to use both in small halls or on small stages as well as larger events, e.g. as support for large moving heads with a classic discharge lamp.
Power consumption: 90W
Power supply voltage: 100 – 240V
Voltage frequency: 50/60Hz
Diode type: Standard LED (Single color)
Diode power: 90W
Display: Color LCD
Number of diodes: 1
Color: Color wheel – 7 colors + white
ZOOM: No
Beam angle (min): 13°
Beam angle (max): 13°
Dimming: Linear: 0 – 100%
Flash frequency (min): 0Hz
Flash frequency (max): 16Hz
Prism: 3-facet, rotating
FROST filter: No
FOCUS: Electronic
GOBO wheel: Fixed: 8+open; Rotating: 6+open
PAN range: 540°
TILT range: 270°
Number of DMX channels: 15
DMX standard: DMX 512
Control interface: 5 buttons
Operating modes: DMX, Manual, Auto, Sound-controlled

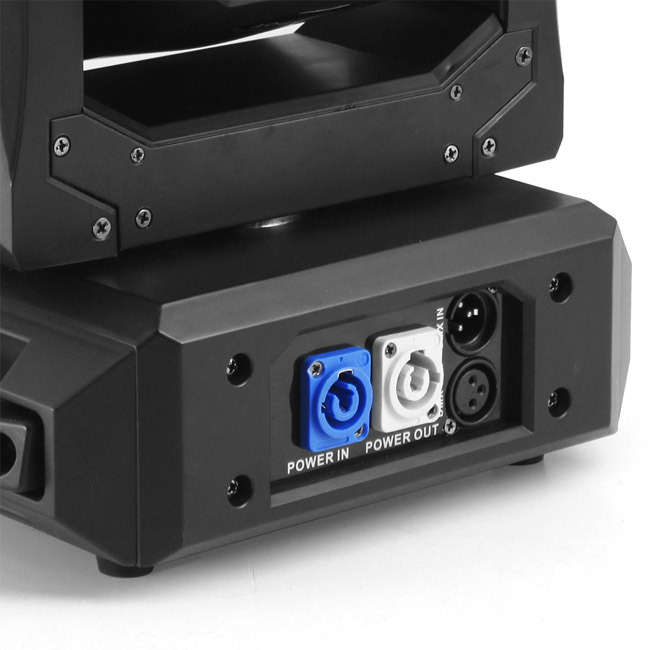

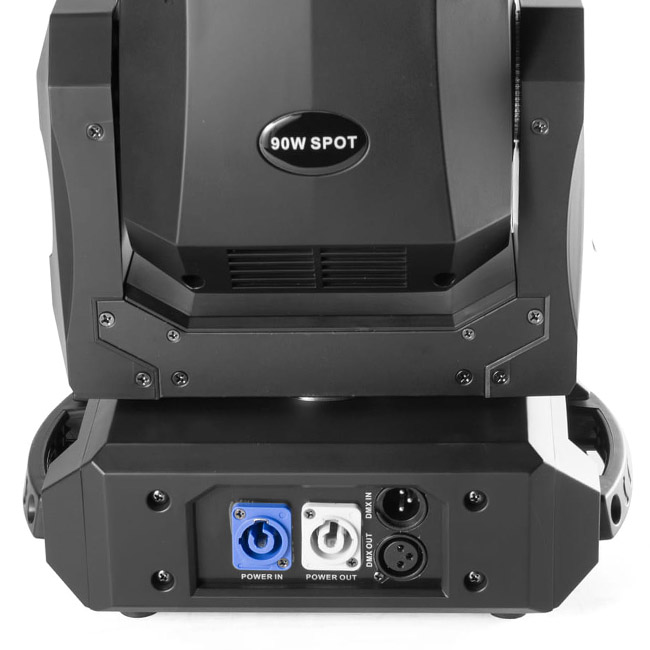

AC IN: powerCON
AC OUT: powerCON
DMX IN: XLR – 3 pin
DMX OUT: XLR – 3 pin
