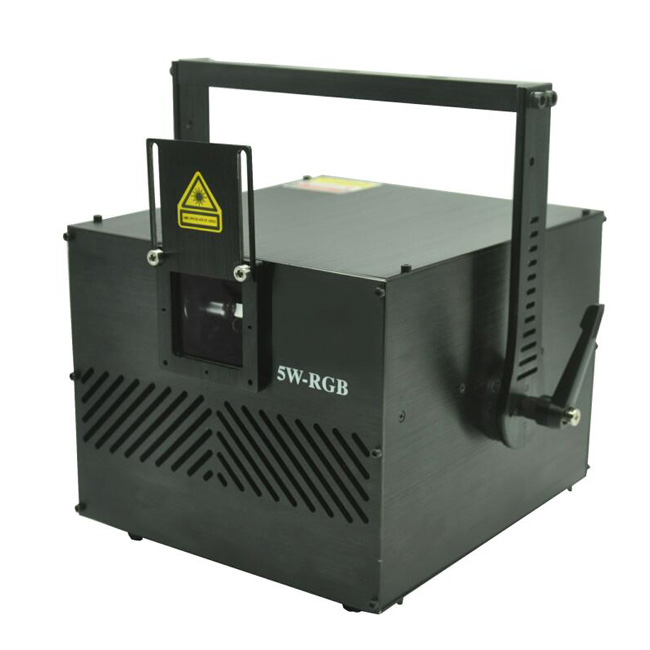

Transformer 5W RGB 5W RGB 25KPPS ILDA Animation disco laser Light.
(Red 1W 638nm+ Green 1W 520nm + Blue 3W 450nm, blended white: 5W) modulation: Analogue.
Features:
*Housing: Lightweight, compact design, dust free, professional design, strong protected, NON-Interlock housing
*Animations: built-in 96 kinds of Geometric animations and 103 kinds of Cartoon Animations.
* LCD digital display for function setting
(1) working mode: AUTO, Sound, DMX, Master/slave, Dimming.
(2) graphics selection: (1) beam mixed: sheet, dircles, waves, boxes, points (2) cartoon mixed: KTV, Halloween, Christmas, Wedding, Animals.
(3) Invert Mode Set
(4) Lasers Type Set
(5) Color Type Set
(6) TTL or Analogue setting
(7) Graphic Size Set
(8) Scan Speed Set
(9) Velocity Set
(10) Sensitivity Set
*DMX mode: pattern selections, laser diode brightness adjustment for analogue modulation, color change, X/Y movement, dimmer, animations rotation, zoom in/out, drawing, etc.
* Play Mode Sound Active, AUTO-Beam, AUTO-Animation, DMX, Master/ Slave, PC Control
* Scanner: High-speed optical scanner, big angle scanning
* Under AUTO/SOUND/DMX mode, beam angle was originally designed to split to very wide angle (about 60°) .
* Under PC laser software control, beam angle is the original scanner angle e.g., scanner 30° can only display max 30°, scanner 60° can only display max 60°.
* DMX channel: 19
* AUTO change to PC mode once connected to laser software with computer via ILDA cable.
* Built-in microphone to detect the outside sound
* DB25 and RJ45 ILDA interface for computer use
* XRL and RJ45 interface for DMX or master/slave
* Remote interlock for compliance of laser light standard.
* Key switch ON/OFF for compliance of laser light standard
* Power corn IN for main power source
* Power Supply Bi-Voltage 110V to 220V-250V, 50/60HZ, 30W-150W
* Item size: 270*300*195mm
* Net weight: 6.4kg
*Gross weight: 7.9kg
* Inner box/outer box size: 40*34*30cm(0.04cbm), 1pcs/CTN
* Outer box size: 40*34*30cm (0.04cbm), 1PCS/CTN
* Optional flightcase: 40*35*28(0.04cbm), 1PCS/FC, flightcase net weight 6.5kgs, gross weight 7.2kgs
