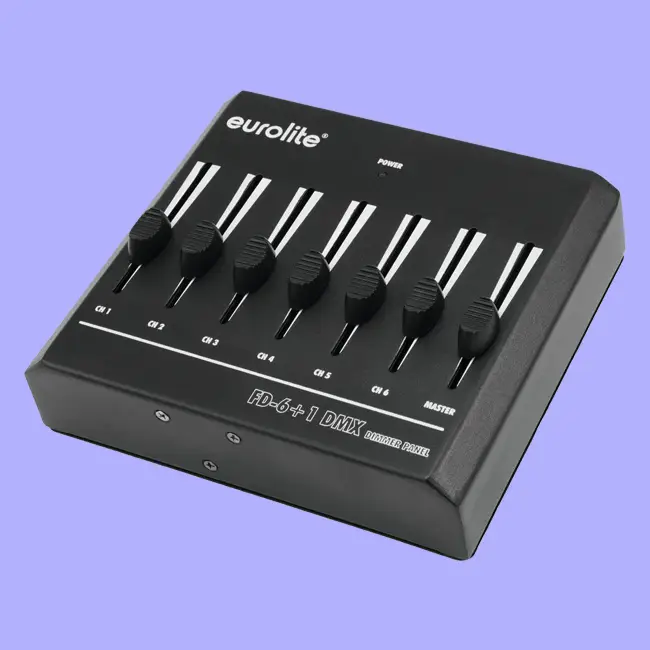

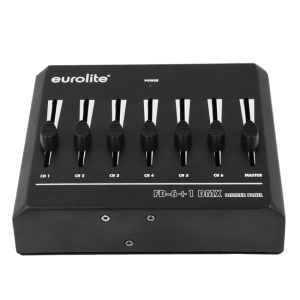

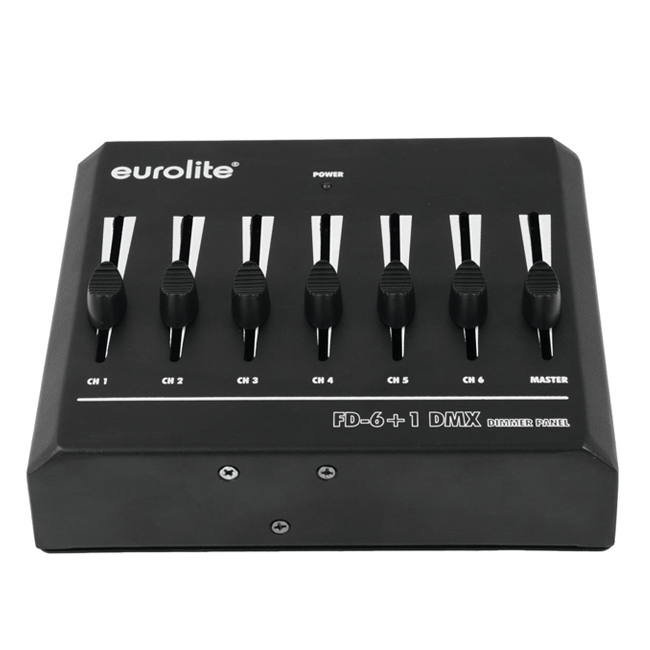

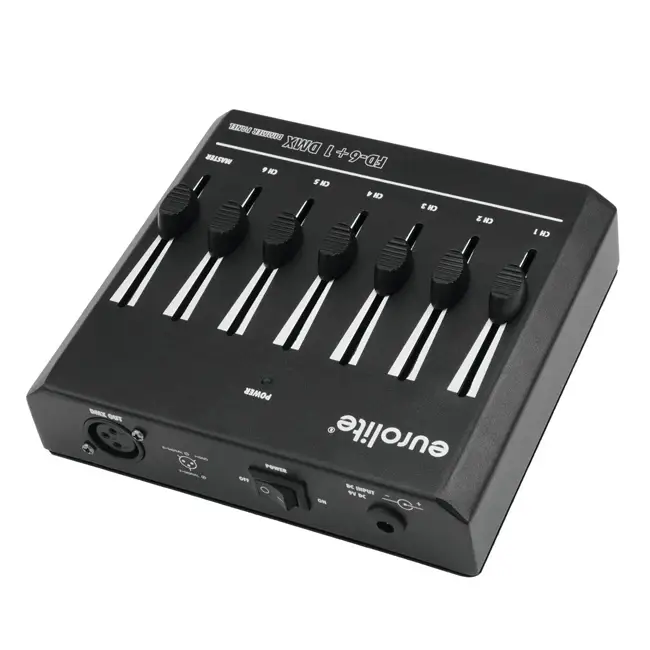

EUROLITE FD-6+1 DMX Dimmer Panel
Basic DMX controller for 6 channels with master fader
• Basic DMX controller for convenient operation of light effect units with DMX512 interface (e.g. spotlights and dimmers)
• 6 channel faders for adjusting the DMX values
• 1 master fader
• Compact design
• 3-pin XLR connector

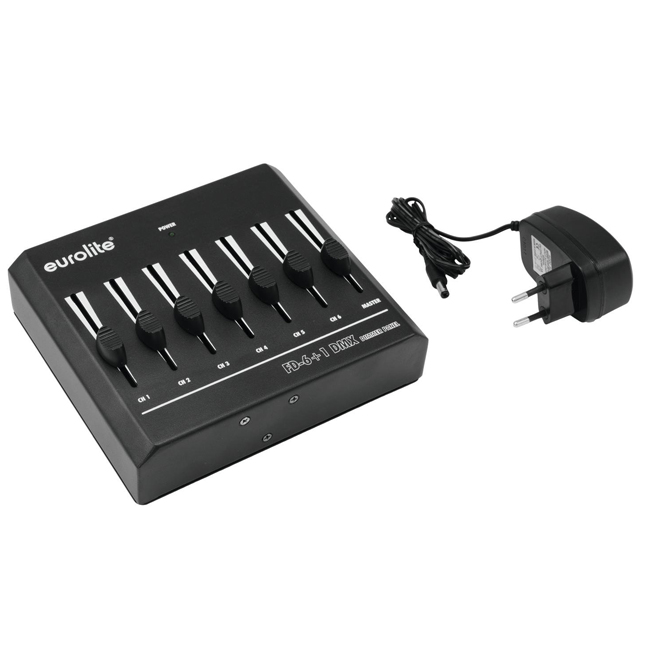

• Power supply via included power unit or 9 V battery (not included)
• Can transmit up to 6 DMX channels
• Controlling by DMX
• Desktop console housing
Power supply: 100-240 V AC, 50/60 Hz; 9 V DC
Power consumption: 1.8 W
IP classification: IP20
Protection class: Class III
Power connection: Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided)
Battery: 1 x 9.0 V E block
DMX channels: Output 6

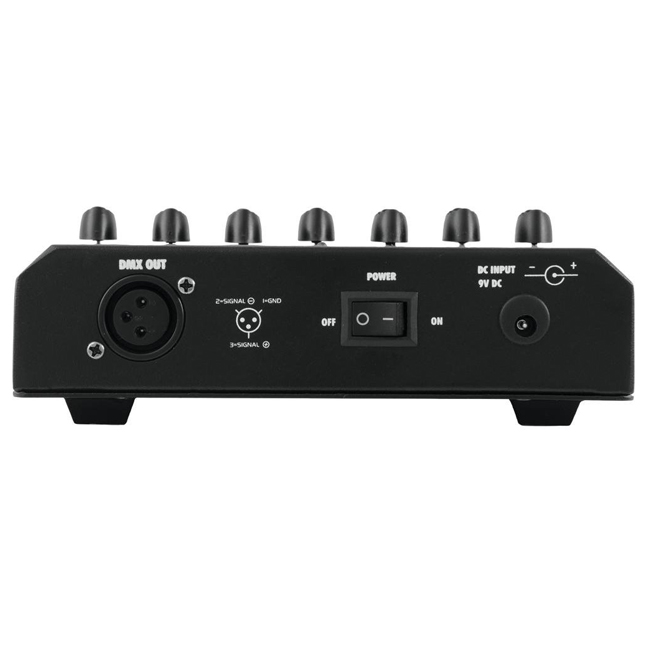

DMX output: 1 x 3-pin XLR (F) mounting version
Control: DMX
Housing color: Black
Color: Black
Housing design: Desktop console housing
Dimension: 17 x 15.5 x 6 cm
Weight: 980 g
